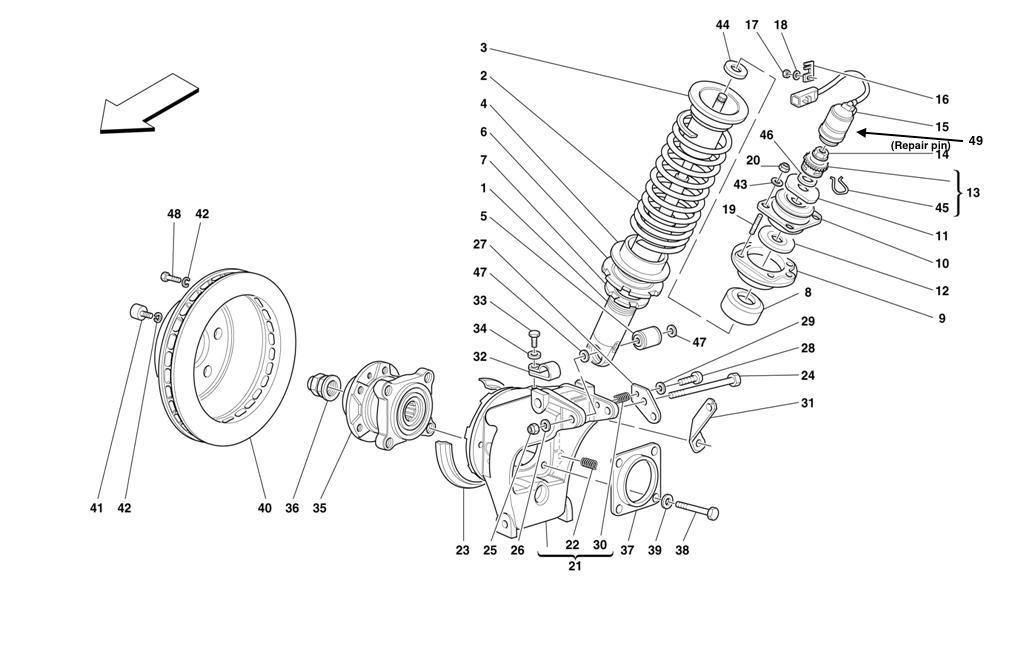

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 183634 *Qty: 2 REAR SHOCK ABSORBER $1,495.16
Location: 2 Prev | Next Part: 151882 *Qty: 2 SPRING $160.95
Location: 3 Prev | Next Part: 165555 *Qty: 2 UPPER SPACER $12.76
Location: 4 Prev | Next Part: 113581 *Qty: 2 LOWER SPACER $11.25
Location: 5 Prev | Next Part: 157630 *Qty: 2 BALL JOINT $72.50
Location: 6 Prev | Next Part: 155086 *Qty: 2 SPACER $86.00
Location: 7 Prev | Next Part: 141860 *Qty: 2 RING NUT $65.00
Location: 8 Prev | Next Part: 163599 *Qty: 2 PAD $88.97
Location: 9 Prev | Next Part: 151547 *Qty: 2 SPRING RETAINING CUP $42.45
Location: 10 Prev | Next Part: 114812 *Qty: 2 HYPERBLOCK $119.08
Location: 11 Prev | Next Part: 137825 *Qty: 2 WASHER $1.48
Location: 12 Prev | Next Part: 152654 *Qty: 2 WASHER $26.92
Location: 13 Prev | Next Part: 137824 *Qty: 2 ACTUATOR SUPPORT $10.96
Location: 14 Prev | Next Part: 137826 *Qty: 2 NUT $3.70
Location: 15 Prev | Next Part: 158732 *Qty: 2 SHOCK ABSORBER ACTUATOR $1,117.93
Location: 16 Prev | Next Part: 155751 *Qty: 2 CLIP $4.87
Location: 17 Prev | Next Part: 62790300 *Qty: 2 NUT $0.90
Location: 18 Prev | Next Part: 10519224 *Qty: 2 WASHER $0.90
Location: 19 Prev | Next Part: 12354524 *Qty: 8 STUD $33.02
Location: 20 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 21 Prev | Next Part: 162938 *Qty: 1 R.H. REAR HUB HOLDER $2,333.88
Location: 21 Prev | Next Part: 162939 *Qty: 1 L.H. REAR HUB HOLDER $1,348.29
Location: 22 Prev | Next Part: 133771 *Qty: 4 THREADED INSERT $4.07
Location: 23 Prev | Next Part: 103117 *Qty: 2 MUDGUARDS COVER $14.39
Location: 24 Prev | Next Part: 159309 *Qty: 2 SCREW $13.36
Location: 25 Prev | Next Part: 148020 *Qty: 2 NUT $4.84
Location: 26 Prev | Next Part: 157115 *Qty: 2 WASHER -Valid till stock exhaustion $0.90
Location: 26 Prev | Next Part: 12601579 *Qty: 2 WASHER -Valid after stock exhaustion of 157115 Superseded
Location: 27 Prev | Next Part: 159308 *Qty: 2 BALL TIE ROD FIXING PLATE $6.20
Location: 28 Prev | Next Part: 60909500 *Qty: 2 SCREW $2.39
Location: 29 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 30 Prev | Next Part: 13525470 *Qty: 2 THREADED INSERT $0.90
Location: 31 Prev | Next Part: 140674 *Qty: 1 R.H. BRACKET $3.91
Location: 31 Prev | Next Part: 140675 *Qty: 1 L.H. BRACKET $3.91
Location: 32 Prev | Next Part: 10418501 *Qty: 2 BRACKET $4.18
Location: 33 Prev | Next Part: 10902024 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 35 Prev | Next Part: 157900 *Qty: 2 HUB COMPLETE BEARING $1,599.09
Location: 36 Prev | Next Part: 209184 *Qty: 2 NUT $33.27
Location: 37 Prev | Next Part: 139900 *Qty: 2 HUB HOLDER DUCT PROTECTION $9.39
Location: 38 Prev | Next Part: 139973 *Qty: 8 SCREW $3.15
Location: 39 Prev | Next Part: 12601474 *Qty: 8 WASHER $0.90
Location: 40 Prev | Next Part: 131868 *Qty: 2 REAR BRAKE DISC -Replace in pair -Valid till stock exhaustion Superseded
Location: 40 Prev | Next Part: 160052 *Qty: 2 REAR BRAKE DISC -Replace in pair -Valid after stock exhaustion of 131868 Unavailable
Location: 41 Prev | Next Part: 157841 *Qty: 2 BRAKE DISC FIXING SCREW AND WHEEL CENTERING $9.76
Location: 42 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 43 Prev | Next Part: 12638524 *Qty: 8 WASHER $0.90
Location: 44 Prev | Next Part: 157104 *Qty: 2 BUSHING $21.29
Location: 45 Prev | Next Part: 142079 *Qty: 2 CLIP $7.75
Location: 46 Prev | Next Part: 160461 *Qty: 2 WASHER -Possible fitting $1.13
Location: 47 Prev | Next Part: 153495 *Qty: 8 SPACER WASHER mm. 3,0 $2.21
Location: 47 Prev | Next Part: 153496 *Qty: 8 SPACER WASHER mm. 2,9 $2.21
Location: 47 Prev | Next Part: 153497 *Qty: 8 SPACER WASHER mm. 3,1 $2.22
Location: 48 Prev | Next Part: 16043424 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 49 Prev | Next Part: SAG355 *Qty: 2 ACTUATOR REPAIR GEAR AND PIN $40.00

* Quantity shown indicates the number of pieces used in the diagram.
