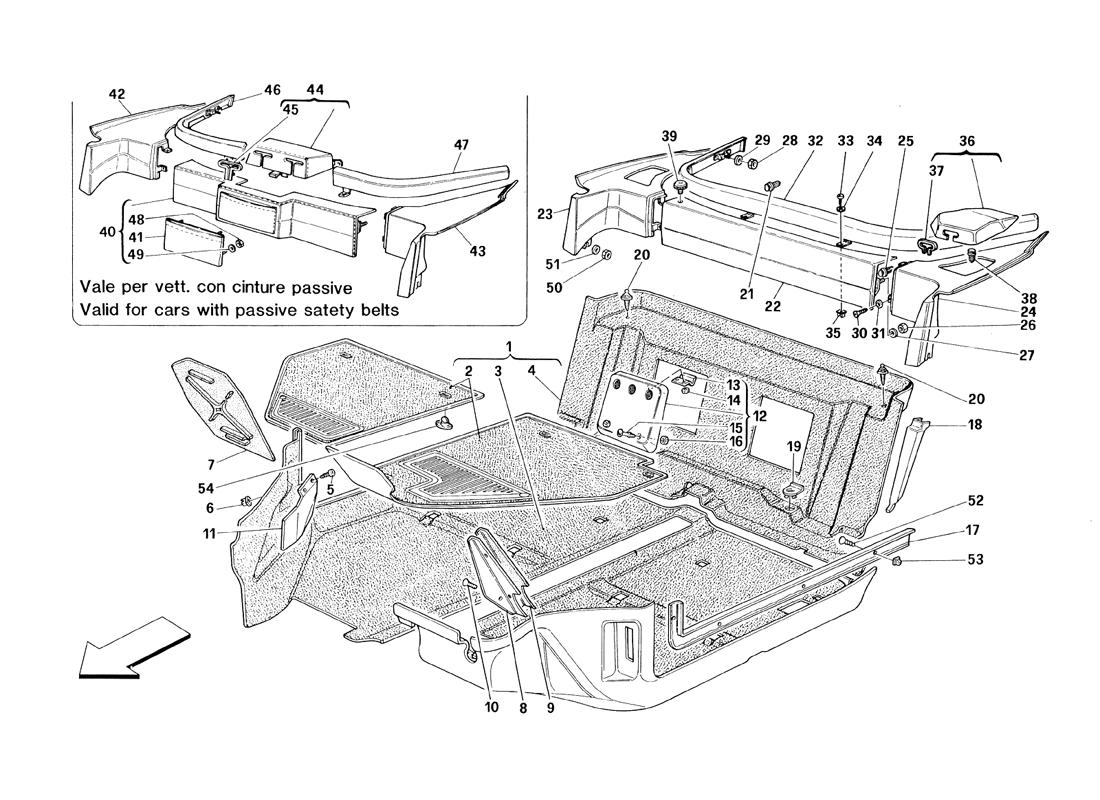

PASSENGERS COMPARTMENT CARPETS - VALID FOR TS - VALID FROM CAR NR. 94910 TS AND NR. 94269 USA TS

Back to 348 (1989-1992) components

Location	Part #	Quantity*	Description	Price	Add To Cart
1	-	1	COMPLETE CARPETS SERIES		Unavailable
2	632998..	1	PILOT/PASSENGER MOVABLE CARPETS Valid for RHD		Unavailable
2	633016..	1	PILOT/PASSENGER MOVABLE CARPETS Not for RHD		Unavailable
3	-	1	FLATBED PRE-SHAPED CARPET Not as spare part With the carpets complete series		Unavailable
4	-	1	BENCH CARPET Not as spare part With the carpets complete series		Unavailable
5	15916170	2	SCREW Valid for RHD		Unavailable
6	14202580	2	BLOCK Valid for RHD		Unavailable
7	62840200	1	SLAB FOR PASSENGER SIDE FOOT REST PLATE Not for RHD		Unavailable
7	62986600	1	SLAB FOR PASSENGER SIDE FOOT REST PLATE Valid for RHD	$55.20
8	63359500	1	CARPET FASTENING PLATE Not for RHD	$60.58
9	63359600	1	SLAB FOR PLATE Not for RHD	$212.89
10	15915807	3	SCREW Not for RHD		Unavailable
11	63343500	1	ACCELERATOR PEDAL PROTECTION Valid for RHD	$599.80
12	635737..	2	COMPLETE CONTROL UNIT COVER		Unavailable
12	635736..	2	LINING		Unavailable
13	63569200	2	FIXING CLIP	$2.60
14	12574011	2	NUT		Superseded
15	62692600	4	PIN	$11.25
16	62692700	4	RUBBER FOR PIN	$2.04
17	629991..	1	LH. LOWER MOULDING Valid for cars without passive safety belts For cars with passive safety belts see Table 122/D		Unavailable
17	629988..	1	R.H. LOWER MOULDING Valid for cars without passive safety belts For cars with passive safety belts see Table 122/D		Unavailable
18	635947..	1	L.H. REAR MOLDING Not for USA		Unavailable
18	636244..	1	L.H. REAR MOLDING Valid for USA		Unavailable
18	635944..	1	R.H. REAR MOLDING Not for USA		Unavailable
18	636241..	1	R.H. REAR MOLDING Valid for USA		Unavailable
19	63595400	2	BUSHING FOR ROOF	$6.00
20	61632100	2	SCREW TAP	$10.00
21	14188181	2	RETAINER	$1.54
22	63316200	1	CENTRAL COVERED TAIL REAR WINDIW CHASSIS Valid for CDN		Unavailable
22	62200400	1	CENTRAL COVERED TAIL REAR WINDOW CHASSIS Valid for cars without passive safety belts Not for CDN	$297.29
22	62200600	1	LINING Valid for cars without passive safety belts	$47.48
23	62201100	1	R.H. SIDE COVERED TAIL REAR WINDOW CHASSIS Valid for cars without passive safety belts	$1,250.95
23	62201300	1	LINING Valid for cars without passive safety belts	$57.23
24	62201200	1	L.H. SIDE COVERED TAIL REAR WINDOW CHASSIS Valid for cars without passive safety belts	$1,250.95
24	62201400	1	LINING Valid for cars without passive safety belts	$39.79
25	14188181	2	RETAINER	$1.54
26	15896470	2	NUT		Unavailable
27	12638101	2	WASHER		Superseded
28	15896470	2	NUT		Unavailable
29	12638101	2	WASHER		Superseded
30	15958801	4	SCREW	$0.90
31	12638101	4	WASHER		Superseded
32	63315900	1	COVERED TAIL REAR WINDOW CROSSPIECE Valid for CDN		Unavailable
32	62199800	1	LINING Valid for cars without passive safety belts	$15.37
32	62199600	1	COVERED TAIL REAR WINDOW CROSSPIECE Valid for cars without passive safety belts Not for CON	$364.32
33	15958801	2	SCREW	$0.90
34	12638101	2	WASHER		Superseded
35	14115980	6	BLOCK		Unavailable
36	62912300	1	L.H. COVERED ROLLER COVER Valid for cars without passive safety belts	$427.42
36	62912400	1	LINING Valid for cars without passive safety belts	$7.31
36	62912200	1	R.H. COVERED ROLLER COVER Valid for cars without passive safety belts	$345.99
37	60709400	1	PLATE Valid for cars without passive safety belts	$10.64
38	14188181	4	RETAINER	$1.54
39	63239300	1	BUTTON WITH PIN Valid for CDN	$31.56
40	62953800	1	CENTRAL COVERED TAIL REAR WINDOW CHASSIS WITH POCKET Valid for cars with passive safety belts	$1,166.17
40	62447800	1	LINING Valid for cars with passive safety belts	$156.70
41	62736400	1	CENTRAL POCKET COMPLETE Valid for cars with passive safety belts	$190.72
42	62448000	1	LINING Valid for cars with passive safety belts		Unavailable
42	62954200	1	R.H. SIDE COVERED TAIL REAR WINDOW CHASSIS Valid for cars with passive safety belts	$899.27
43	62954300	1	LH. SIDE COVERED TAIL REAR WINDOW CHASSIS Valid for cars with passive safety belts	$846.08
43	62448100	1	LINING Valid for cars with passive safety belts	$338.81
44	62955000	1	COVERED TRIM FOR DRIVING BELTS Valid for cars with passive safety belts	$461.68
44	62448500	1	LINING Valid for cars with passive safety belts	$52.98
45	62449600	2	PLATE Valid for cars with passive safety belts		Unavailable
46	62447500	1	LINING valid for cars with passive safety belts	$9.34
46	62952000	1	R.H. COVERED TAIL REAR WINDOW CROSSPIECE valid for cars with passive safety belts	$212.89
47	62952100	1	L.H. COVERED TAIL REAR WINDOW CROSSPIECE valid for cars with passive safety belts	$212.89
47	62447500	1	LINING valid for cars with passive safety belts	$9.34
48	12577811	6	NUT valid for cars with passive safety belts		Superseded
49	12638101	6	WASHER valid for cars with passive safety belts		Superseded
50	15896470	2	NUT		Unavailable
51	12638101	2	WASHER		Superseded
52	15916207	8	SCREW valid for cars without passive safety belts		Unavailable
53	14201980	8	BLOCK valid for cars without passive safety belts		Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
