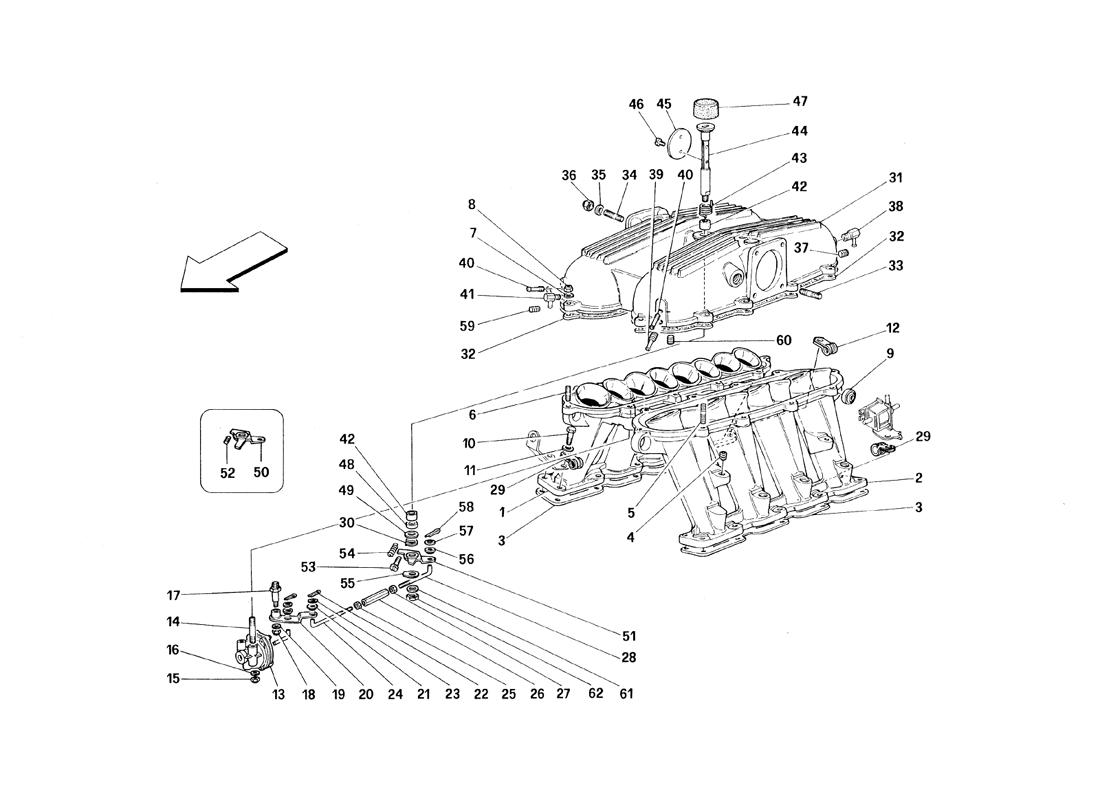

MANIFOLDS AND COVERS - MOTRONIC 2.7

Go to Split View

MANIFOLDS AND COVERS - MOTRONIC 2.7

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 142054 *Qty: 1 COMPLETE AIR INTAKE
Not for CH
$576.06
Location: 1 Prev | Next Part: 144090 *Qty: 1 COMPLETE AIR INTAKE
Valid for CH
$909.20
Location: 2 Prev | Next Part: 10376577 *Qty: 4 SCREW $1.35
Location: 3 Prev | Next Part: 133180 *Qty: 1 AIR FILTER
Valid till stock exhaustion
Superseded
Location: 3 Prev | Next Part: 155871 *Qty: 1 AIR FILTER
Valid after stock exhaustion of 133180
$46.62
Location: 4 Prev | Next Part: 142402 *Qty: 2 AIR INLET CONNECTION PIPE
Not for CH
$267.44
Location: 5 Prev | Next Part: 143882 *Qty: 2 AIR INLET CONNECTION PIPE
Valid for CH
$569.81
Location: 6 Prev | Next Part: 10519424 *Qty: 8 WASHER Unavailable
Location: 7 Prev | Next Part: 102947 *Qty: 4 PAD $16.25
Location: 8 Prev | Next Part: 12177290 *Qty: 4 SCREW COLLAR Superseded
Location: 9 Prev | Next Part: 143257 *Qty: 1 R.H. SLEEVE $405.34
Location: 10 Prev | Next Part: 143236 *Qty: 1 L.H. SLEEVE $405.34
Location: 11 Prev | Next Part: 12180290 *Qty: 8 SCREW COLLAR Unavailable
Location: 12 Prev | Next Part: 143201 *Qty: 1 L.H. PIPETOREGULATUR $20.84
Location: 12 Prev | Next Part: 143202 *Qty: 1 R.H. PIPE TO REGULATOR $20.84
Location: 13 Prev | Next Part: 142432 *Qty: 2 REGULATOR FOR IDLE ADJUSTMENT $621.54
Location: 14 Prev | Next Part: 143294 *Qty: 1 L.H. BRACKET $3.33
Location: 14 Prev | Next Part: 143301 *Qty: 1 R.H. BRACKET $2.45
Location: 15 Prev | Next Part: 143291 *Qty: 2 SLEEVE $2.76
Location: 16 Prev | Next Part: 14496401 *Qty: 2 WASHER Superseded
Location: 17 Prev | Next Part: 127494 *Qty: 2 WASHER $0.90
Location: 18 Prev | Next Part: 15896211 *Qty: 2 NUT Superseded
Location: 19 Prev | Next Part: 143270 *Qty: 2 PIPE FROM REGULATOR TO AIR PLENUM CHAMBER $9.75
Location: 20 Prev | Next Part: 143286 *Qty: 2 UNION $5.54
Location: 21 Prev | Next Part: 12574211 *Qty: 8 NUT Superseded
Location: 22 Prev | Next Part: 12575411 *Qty: 1 NUT Superseded
Location: 23 Prev | Next Part: 14496401 *Qty: 1 WASHER Superseded

* Quantity shown indicates the number of pieces used in the diagram.
