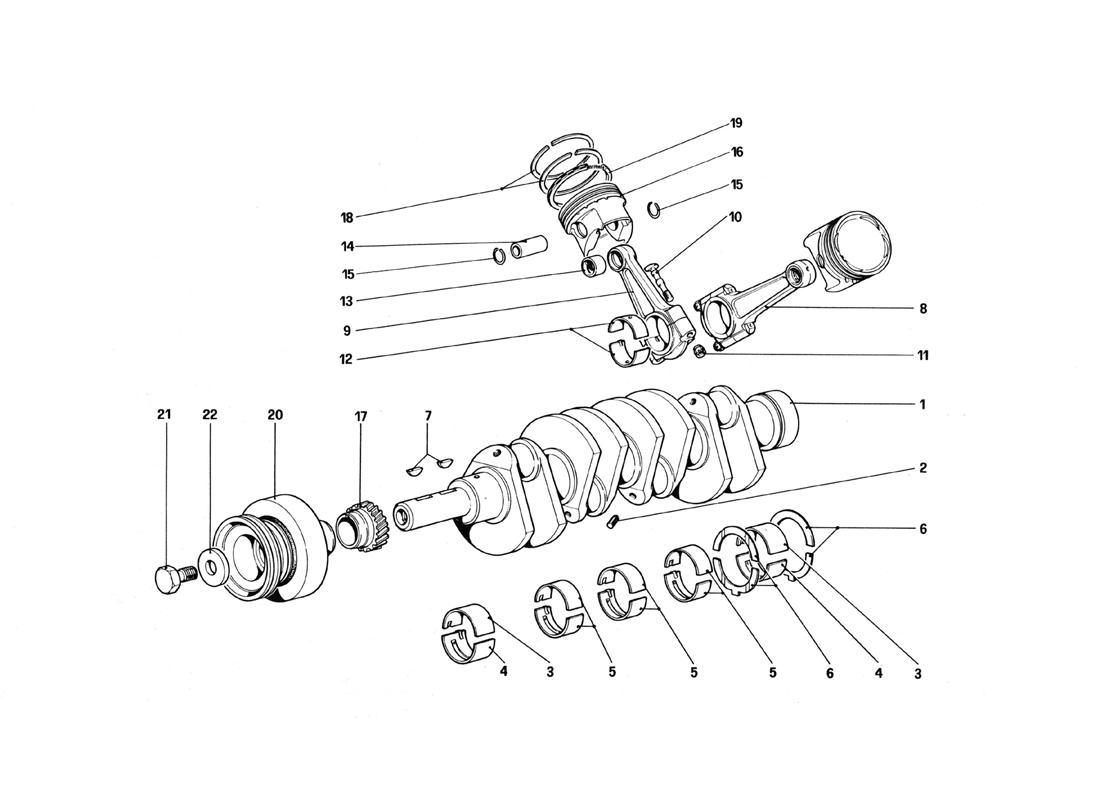

CRANKSHAFT - CONNECTING RODS AND PISTONS

Location Part # Quantity* Description Price Add To Cart
1 116961 1 Crankshaft $17,784.44
2 14326150 8 Plug Unavailable
3 100120 2 2nd undersize 0,508 mm. on ? $56.92
3 100118 2 Upper half bearing $83.62
4 100123 2 1st undersize 0,254 mm. on ? $148.37
4 100124 2 2nd undersize 0,508 mm. on ? $65.63
4 100122 2 Lower half bearing $87.25
5 104023 6 Half bearing, upper and lower $138.24
5 - 6 Shim Unavailable
5 104024 6 1st undersize 0,254 mm. on ? $60.68
5 104025 6 2nd undersize 0,508 mm. on ? $62.48
6 100147 2 2nd oversize 0,25 mm. $19.77
6 113984 2 1st oversize 0,127 mm. $127.87
6 100146 2 Shim for rear support $41.09
7 10206020 2 Tongue $2.76
8 109738 8 Connecting rod, complete $1,006.78
9 109688 8 Connecting rod and cap With assembly no. 109738 Unavailable
10 100156 16 Bolt securing connecting rod $33.07
11 104011 16 Nut for connecting rod bolt $19.06
12 100152 16 2nd undersize 0,508 mm. on ? $122.49
12 100150 16 Connecting rod half bearing Superseded
12 100151 16 1st undersize 0,254 mm. on ? $80.81
13 107100 8 Bush for gudgeon pin $78.44
14 119537 8 Gudgeon pin $113.44
15 100174 16 Ring for gudgeon pin $6.88
16 126754 8 Piston with piston ring - For US - C7 and C8 Unavailable
16 126580 8 Piston with piston ring - Not for US - C7 and C8 Unavailable
17 117655 1 Driving sprocket for timing system $606.47
18 126582 1 Set of pistons rings $236.60
18 126583 16 Ac torsion seal ring
1st- 2nd groove 		Unavailable
19 119851 8 ROF scraper ring with spring
3td groove 		Unavailable
20 126189 1 Torsion damper with pulley Unavailable
21 100476 1 Screw Superseded
22 102775 1 Washer $35.74

* Quantity shown indicates the number of pieces used in the diagram.
