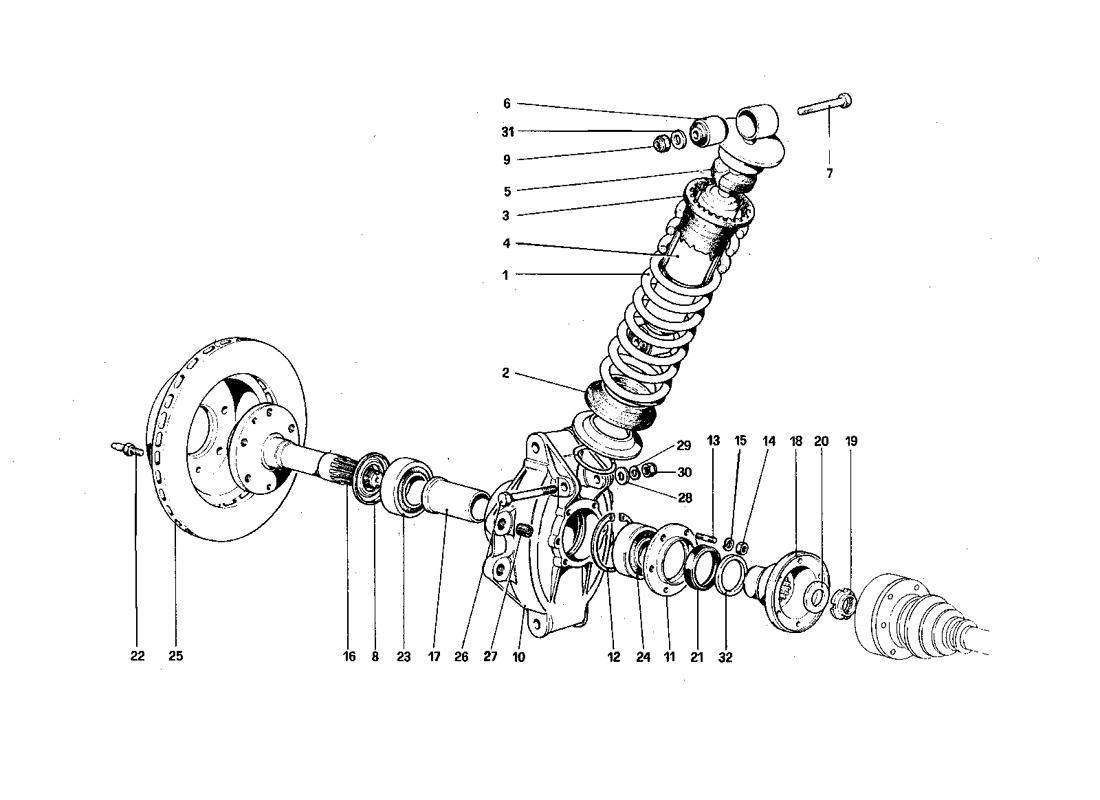

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 112971 *Qty: 2 Suspension spring
GTB only
$462.74
Location: 1 Prev | Next Part: 112877 *Qty: 2 Suspension spring
GTS only
$406.11
Location: 2 Prev | Next Part: 103264 *Qty: 2 Lower spacer Call
Location: 3 Prev | Next Part: 103263 *Qty: 2 Upper spacer $34.33
Location: 4 Prev | Next Part: 110787 *Qty: 2 Shock absorber $390.74
Location: 5 Prev | Next Part: 104442 *Qty: 2 Pad
No spare
Call
Location: 6 Prev | Next Part: 100809 *Qty: 4 Estendblock $18.07
Location: 7 Prev | Next Part: 106419 *Qty: 2 Bolt $20.52
Location: 8 Prev | Next Part: 108047 *Qty: 2 Centrifugal ring $65.83
Location: 9 Prev | Next Part: 16105121 *Qty: 2 Nut Superseded
Location: 10 Prev | Next Part: 112484 *Qty: 1 Hub holder, right complete Call
Location: 10 Prev | Next Part: 106245 *Qty: 1 Hub holder, right
With assembly no. 112484
Superseded
Location: 10 Prev | Next Part: 112485 *Qty: 1 Hub holder, left complete $1,679.99
Location: 10 Prev | Next Part: 107441 *Qty: 1 Hub holder, left
With assembly no. 112485
Superseded
Location: 11 Prev | Next Part: 119374 *Qty: 2 Flange for bearing $112.14
Location: 12 Prev | Next Part: 11061575 *Qty: 2 Seeger ring Superseded
Location: 13 Prev | Next Part: 13543321 *Qty: 12 Stud Superseded
Location: 14 Prev | Next Part: 16100821 *Qty: 12 Nut Call
Location: 15 Prev | Next Part: 106852 *Qty: 12 Washer Superseded
Location: 16 Prev | Next Part: 108046 *Qty: 2 Shaft with rear hub Call
Location: 17 Prev | Next Part: 106129 *Qty: 2 Spacer $221.54
Location: 18 Prev | Next Part: 119378 *Qty: 2 Flange connecting axle shafts $187.32
Location: 19 Prev | Next Part: 102289 *Qty: 2 Ring nut $40.00
Location: 20 Prev | Next Part: 105511 *Qty: 2 Washer $13.25
Location: 21 Prev | Next Part: 115968 *Qty: 2 Sealing ring $117.92
Location: 22 Prev | Next Part: 104370 *Qty: 4 Centering screw $0.90
Location: 23 Prev | Next Part: 101221 *Qty: 2 Outer bearing $39.70
Location: 24 Prev | Next Part: 101220 *Qty: 2 Inner bearing $43.91
Location: 25 Prev | Next Part: 104458 *Qty: 2 Brake disc $352.14
Location: 26 Prev | Next Part: 106290 *Qty: 2 Bolt $27.52
Location: 27 Prev | Next Part: 13524570 *Qty: 4 Heli-coil $3.49
Location: 28 Prev | Next Part: 106616 *Qty: 2 Washer $1.51
Location: 29 Prev | Next Part: 106854 *Qty: 2 Washer Superseded
Location: 30 Prev | Next Part: 16103621 *Qty: 2 Nut $0.90
Location: 31 Prev | Next Part: 106616 *Qty: 2 Washer $1.51
Location: 32 Prev | Next Part: 112475 *Qty: 2 Spacer on flange
Possible fitting
$52.20

* Quantity shown indicates the number of pieces used in the diagram.
