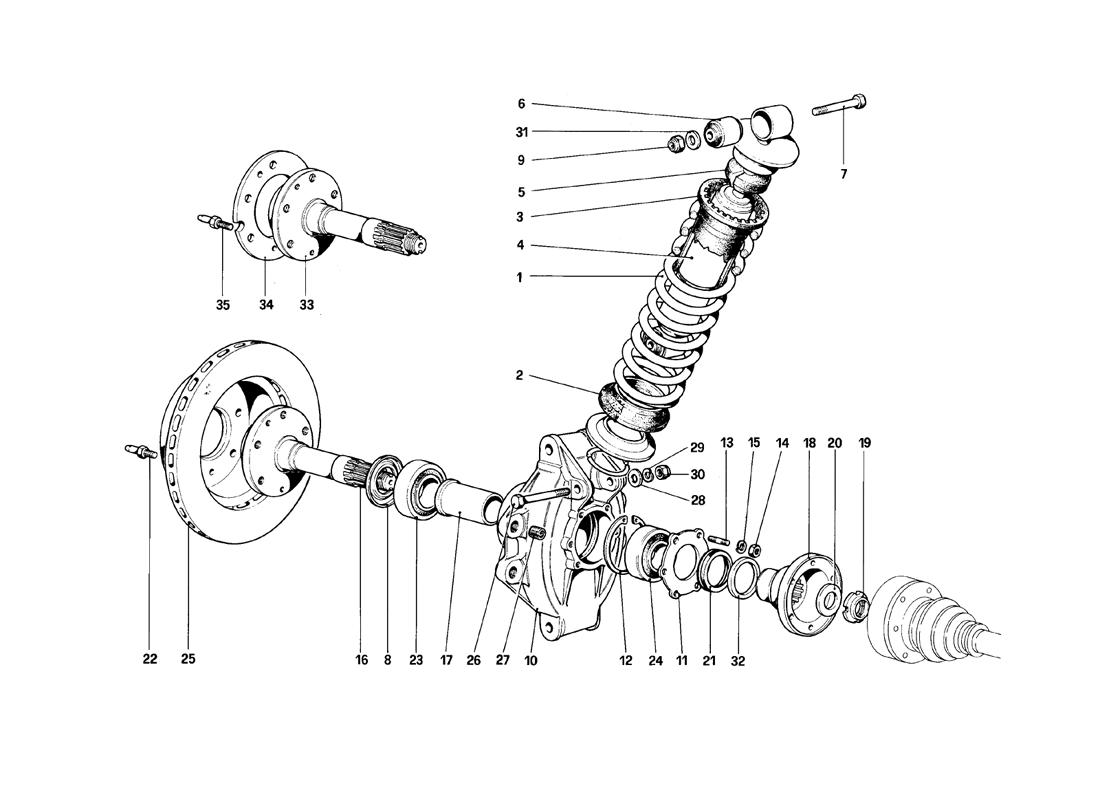

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 112971 *Qty: 2 Molla sospensione (GTB) $540.77
Location: 1 Prev | Next Part: 112877 *Qty: 2 Molla sospensione (GTS) $474.60
Location: 2 Prev | Next Part: 103264 *Qty: 2 Distanziale inferiore $40.67
Location: 3 Prev | Next Part: 103263 *Qty: 2 Distanziale superiore Superseded
Location: 4 Prev | Next Part: 110787 *Qty: 2 Ammortizzatore $621.39
Location: 5 Prev | Next Part: 104442 *Qty: 2 Tampone fine corsa
Con I''ammortizzatore
Unavailable
Location: 6 Prev | Next Part: 100809 *Qty: 2 Estendblok per ammortizzatore $171.07
Location: 7 Prev | Next Part: 106419 *Qty: 2 Bullone fissaggio ammortizzatore $20.52
Location: 8 Prev | Next Part: 108047 *Qty: 2 Anello centrifugatore $76.92
Location: 9 Prev | Next Part: 16105121 *Qty: 2 Dado Superseded
Location: 10 Prev | Next Part: 107441 *Qty: 1 Portamozzo Sx.
Col complessivo n. 112485
Superseded
Location: 10 Prev | Next Part: 112485 *Qty: 1 Portamozzo Sx. complete $1,679.99
Location: 10 Prev | Next Part: 112484 *Qty: 1 Portamozzo Dx. complete Unavailable
Location: 10 Prev | Next Part: 106245 *Qty: 1 Portamozzo Dx.
Col complessivo n. 112484
Superseded
Location: 11 Prev | Next Part: 108049 *Qty: 2 Flangia tenuta cuscinetto $111.43
Location: 12 Prev | Next Part: 11061575 *Qty: 2 Anello seeger Superseded
Location: 13 Prev | Next Part: 13543121 *Qty: 12 THREADED STUD Superseded
Location: 14 Prev | Next Part: 16100821 *Qty: 12 Dado Unavailable
Location: 15 Prev | Next Part: 106852 *Qty: 12 Rondella Superseded
Location: 16 Prev | Next Part: 108046 *Qty: 2 Albero con mozzo posteriore
Non vale per CH
$1,768.64
Location: 17 Prev | Next Part: 106129 *Qty: 2 Distanziale $258.88
Location: 18 Prev | Next Part: 111521 *Qty: 2 Flangia attacco semiassi $339.89
Location: 19 Prev | Next Part: 102289 *Qty: 2 Ghiera $40.00
Location: 20 Prev | Next Part: 105511 *Qty: 2 Rondella $15.49
Location: 21 Prev | Next Part: 108048 *Qty: 2 Anello di tenuta $17.77
Location: 22 Prev | Next Part: 104370 *Qty: 4 Vite di centraggio
Non vale .per CH
$0.90
Location: 23 Prev | Next Part: 101221 *Qty: 2 Cuscinetto esterno $46.40
Location: 24 Prev | Next Part: 101220 *Qty: 2 Cuscinetto interne $51.33
Location: 25 Prev | Next Part: 104458 *Qty: 2 Disco freno $411.53
Location: 26 Prev | Next Part: 106290 *Qty: 2 Bullone $32.18
Location: 27 Prev | Next Part: 105621 *Qty: 4 Heli - coil Superseded
Location: 28 Prev | Next Part: 106616 *Qty: 2 Rondella Unavailable
Location: 29 Prev | Next Part: 106854 *Qty: 2 Rondella Superseded
Location: 30 Prev | Next Part: 16103621 *Qty: 2 Dado Unavailable
Location: 31 Prev | Next Part: 106616 *Qty: 2 Rondella Unavailable
Location: 32 Prev | Next Part: 112475 *Qty: 2 Distanziale
Di eventuale montaggio
$61.00
Location: 33 Prev | Next Part: 113560 *Qty: 2 Albero con mozzo posteriore
Vale solo per CH
$570.57
Location: 34 Prev | Next Part: 111858 *Qty: 2 Distanziale fra ruota e mozzo
Vale solo per CH
$690.79
Location: 35 Prev | Next Part: 104368 *Qty: 4 Vite di centraggio
Vale solo per CH
$104.86

* Quantity shown indicates the number of pieces used in the diagram.
