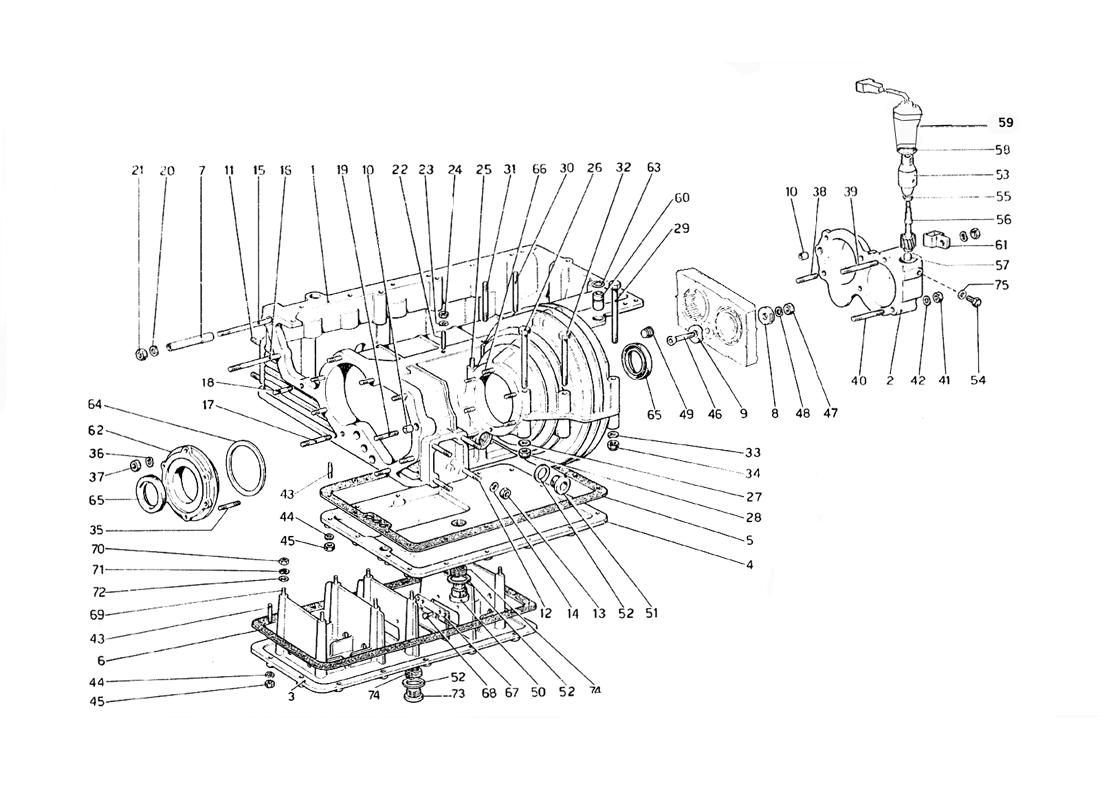

GEAR - DIFFERENTIAL HOUSING AND OIL SUMP

Go to Split View

GEAR - DIFFERENTIAL HOUSING AND OIL SUMP

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 0 Prev | Next Part: 107874 *Qty: 1 Gearbox CompleteNot for USA-AUS-J - Rc 308Gt4 Exchange Required Unavailable
Location: 0 Prev | Next Part: 111115 *Qty: 1 Gearbox CompleteFor USA-AUS-J - 308Gt4/308Gtbi Unavailable
Location: 1 Prev | Next Part: 109586 *Qty: 1 Gearbox Casing Complete Unavailable
Location: 1 Prev | Next Part: 108238 *Qty: 1 Gearbox CasingWith complete N 109586 Unavailable
Location: 2 Prev | Next Part: 105673 *Qty: 1 Rear Diff HousingWith complete N 109586 $475.22
Location: 3 Prev | Next Part: 107875 *Qty: 1 Sump Cover Complete- Require gasket 147676 Superseded
Location: 3 Prev | Next Part: 104192 *Qty: 1 Sump CoverWith complete N 107875 Superseded
Location: 4 Prev | Next Part: 108491 *Qty: 1 Gearbox Sump CoverUse Upon Exhaustion Of 104194 Superseded
Location: 5 Prev | Next Part: 104196 *Qty: 1 Sump Gasket Superseded
Location: 6 Prev | Next Part: 104197 *Qty: 1 Sump Pan Gasket Superseded
Location: 7 Prev | Next Part: 104033 *Qty: 1 Dowel- ->Ch 72125 Cn 42 $29.61
Location: 8 Prev | Next Part: 104198 *Qty: 1 Washer $10.91
Location: 9 Prev | Next Part: 104199 *Qty: 1 Spacer $6.45
Location: 10 Prev | Next Part: 102704 *Qty: 2 Dowel $3.38
Location: 11 Prev | Next Part: 13449521 *Qty: 8 Stud Unavailable
Location: 12 Prev | Next Part: 13450021 *Qty: 8 Stud $0.90
Location: 13 Prev | Next Part: 12164711 *Qty: 16 Nut Superseded
Location: 14 Prev | Next Part: 10516871 *Qty: 16 Washer $0.90
Location: 15 Prev | Next Part: 13518921 *Qty: 1 Stud Unavailable
Location: 16 Prev | Next Part: 13518721 *Qty: 1 Stud $4.26
Location: 17 Prev | Next Part: 13517421 *Qty: 1 Stud $41.97
Location: 18 Prev | Next Part: 13517221 *Qty: 8 Threaded Stud Superseded
Location: 19 Prev | Next Part: 13517321 *Qty: 1 Threaded Stud Superseded
Location: 20 Prev | Next Part: 11198071 *Qty: 12 Washer Beville 8mm Superseded
Location: 21 Prev | Next Part: 16100811 *Qty: 12 Nut 8x6.5mm Superseded
Location: 22 Prev | Next Part: 108966 *Qty: 4 Stud $13.58
Location: 23 Prev | Next Part: 11198071 *Qty: 4 Washer Beville 8mm Superseded
Location: 24 Prev | Next Part: 16100811 *Qty: 4 Nut 8x6.5mm Superseded
Location: 25 Prev | Next Part: 13450421 *Qty: 2 Stud $0.90
Location: 26 Prev | Next Part: 15972021 *Qty: 2 Bolt $1.16
Location: 27 Prev | Next Part: 12638601 *Qty: 4 Washer $0.90
Location: 28 Prev | Next Part: 12574511 *Qty: 4 Nut Superseded
Location: 29 Prev | Next Part: 104189 *Qty: 1 Bolt Unavailable
Location: 30 Prev | Next Part: 13518021 *Qty: 2 Threaded Stud $5.59
Location: 31 Prev | Next Part: 13544221 *Qty: 1 Stud Superseded
Location: 32 Prev | Next Part: 107711 *Qty: 1 Bolt $6.69
Location: 33 Prev | Next Part: 10519601 *Qty: 4 Washer 8.15-17 X 2 Superseded
Location: 34 Prev | Next Part: 16104111 *Qty: 4 Nut Superseded
Location: 35 Prev | Next Part: 12429721 *Qty: 5 Threaded Stud $0.90
Location: 36 Prev | Next Part: 12601371 *Qty: 6 Washer Superseded
Location: 37 Prev | Next Part: 16104111 *Qty: 6 Nut Superseded
Location: 38 Prev | Next Part: 13517221 *Qty: 4 Threaded Stud Superseded
Location: 39 Prev | Next Part: 13544221 *Qty: 1 Stud Superseded
Location: 40 Prev | Next Part: 13517621 *Qty: 1 Stud Bolt Superseded
Location: 41 Prev | Next Part: 16100811 *Qty: 6 Nut 8x6.5mm Superseded
Location: 42 Prev | Next Part: 11198071 *Qty: 6 Washer Beville 8mm Superseded
Location: 43 Prev | Next Part: 13541121 *Qty: 30 Stud 6x12mm Superseded
Location: 44 Prev | Next Part: 11197771 *Qty: 30 Washer Superseded
Location: 45 Prev | Next Part: 15896211 *Qty: 30 Nut 6x5 Superseded
Location: 46 Prev | Next Part: 104218 *Qty: 1 Screw $1.45
Location: 47 Prev | Next Part: 16100811 *Qty: 1 Nut 8x6.5mm Superseded
Location: 48 Prev | Next Part: 10516670 *Qty: 1 Spring Washer 8mm- Black $0.90
Location: 49 Prev | Next Part: 10269650 *Qty: 1 Core Plug 16mm x 11mm $1.74
Location: 50 Prev | Next Part: 104280 *Qty: 1 Oil Drain Plug- Washer=10261860 $5.72
Location: 51 Prev | Next Part: 10275001 *Qty: 1 Plug Superseded
Location: 52 Prev | Next Part: 10263460 *Qty: 3 Gasket Superseded
Location: 53 Prev | Next Part: 106427 *Qty: 1 Housing $189.15
Location: 54 Prev | Next Part: 101349 *Qty: 1 Speedo Pick Up Retainer Bolt $13.13
Location: 55 Prev | Next Part: 104103 *Qty: 1 Oil Seal Unavailable
Location: 56 Prev | Next Part: 107096 *Qty: 1 Pinion RHD $866.98
Location: 57 Prev | Next Part: 105674 *Qty: 1 Pad $8.47
Location: 58 Prev | Next Part: 101848 *Qty: 1 O Ring $2.11
Location: 59 Prev | Next Part: 106324 *Qty: 1 Sender Superseded
Location: 60 Prev | Next Part: 103838 *Qty: 2 Dowel Peg $3.02
Location: 61 Prev | Next Part: 10441590 *Qty: 1 Bracket With Sheath 16mm- PClip Covered Dia 16mm $0.90
Location: 62 Prev | Next Part: 108226 *Qty: 1 CoverWith assembly N 109856 $160.92
Location: 63 Prev | Next Part: 103839 *Qty: 2 Circlip $9.32
Location: 64 Prev | Next Part: 103231 *Qty: 1 Spacer 2.862mm Superseded
Location: 64 Prev | Next Part: 103422 *Qty: 1 Spacer 2.40mm $66.97
Location: 64 Prev | Next Part: 103423 *Qty: 1 Spacer 2.60mm Unavailable
Location: 64 Prev | Next Part: 103424 *Qty: 1 Spacer 2.80mm $66.97
Location: 64 Prev | Next Part: 103425 *Qty: 1 Spacer 3.00mm $66.97
Location: 64 Prev | Next Part: 103426 *Qty: 1 Spacer 3.20mm $142.68
Location: 64 Prev | Next Part: 109145 *Qty: 1 Spacer 4.30mm $36.94
Location: 65 Prev | Next Part: 104300 *Qty: 2 Oil SealBOOK MISPRINT 101857 should be 108157. Alternatively Use 108157 Superseded
Location: 66 Prev | Next Part: 13543421 *Qty: 1 Stud Superseded
Location: 67 Prev | Next Part: 107589 *Qty: 2 Shield $21.84
Location: 68 Prev | Next Part: 100033 *Qty: 4 Rivet $0.90
Location: 69 Prev | Next Part: 11000821 *Qty: 8 Stud $0.90
Location: 70 Prev | Next Part: 15896411 *Qty: 8 RH Thread Nut Superseded
Location: 71 Prev | Next Part: 106849 *Qty: 8 Washer Superseded
Location: 72 Prev | Next Part: 12638101 *Qty: 8 Washer White Superseded
Location: 73 Prev | Next Part: 10275040 *Qty: 1 Plug Superseded
Location: 74 Prev | Next Part: 112254 *Qty: 2 Heli Coil $4.43
Location: 75 Prev | Next Part: 12601371 *Qty: 1 Washer Superseded

* Quantity shown indicates the number of pieces used in the diagram.
