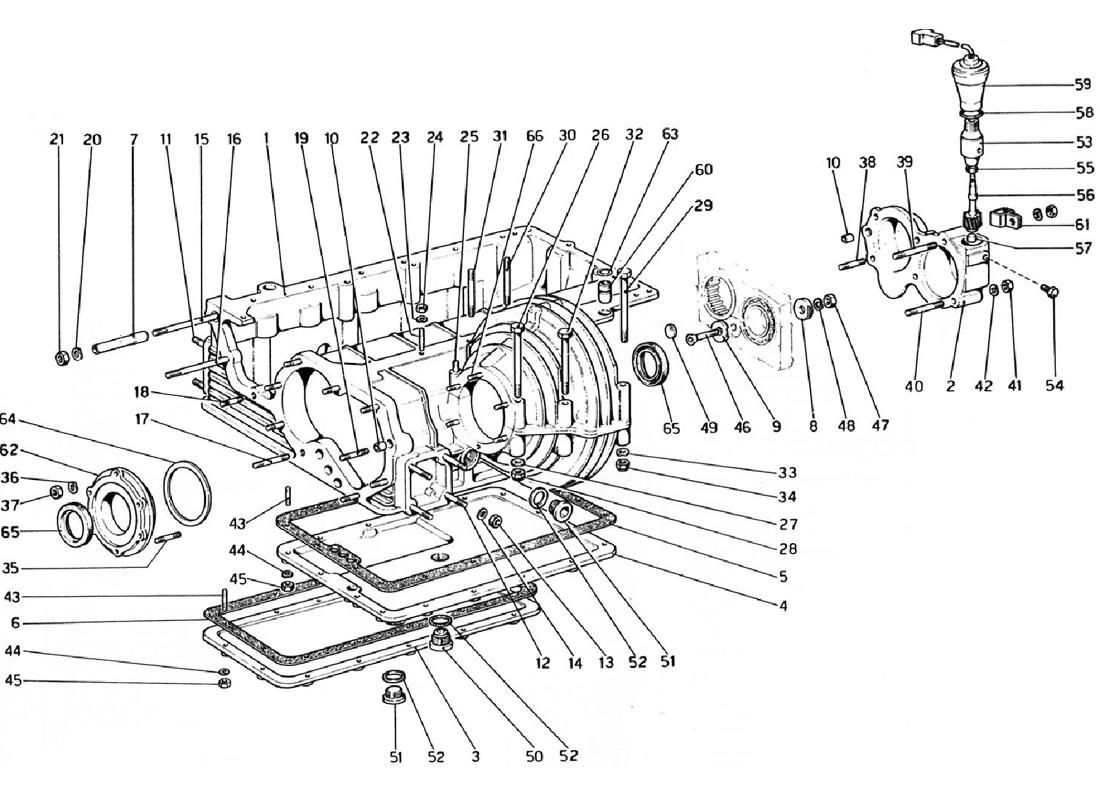

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

chevron-left
chevron-right
Go to Split View view-grid

GEARBOX - DIFFERENTIAL HOUSING AND OIL SUMP

Location Part # Quantity* Description Price Add To Cart
- 109812 1 Cambio completo di ruotismi. differenziale e supporti Unavailable
1 109290 1 Scatola cambio differenziale e coppa olio Unavailable
1 109587 1 Scatola cambio completa Unavailable
2 105673 1 Coperchio posteriore $606.52
3 109313 1 Coperchio coppa olio $713.04
4 108491 1 Coperchio inferiore Superseded
5 104196 1 GASKET Superseded
6 104197 1 GASKET Superseded
7 104033 1 Centering Dowel $41.05
8 104198 1 Rondella tenuta cuscinetti $15.75
9 104199 1 Rondella tenuta cuscinetti $11.00
10 102704 2 Centering Dowel $4.24
11 13449521 8 Prigioniero pertamponi anteriori Unavailable
12 13450021 8 Prigioniero pertamponi posteriori $0.90
13 12164711 16 Nut Superseded
14 10516871 16 Rondella Unavailable
15 13518921 1 THREADED STUD Unavailable
16 13518721 1 THREADED STUD $6.15
17 13517421 1 THREADED STUD $41.97
18 13517221 8 THREADED STUD Superseded
19 13517321 1 THREADED STUD Superseded
20 11198071 12 Rondella Superseded
21 16100811 12 Nut Superseded
22 108966 4 Prigioniero fissaggio basamento $17.34
23 11198071 4 Rondella Superseded
24 16100811 4 Nut Superseded
25 13450421 2 THREADED STUD Unavailable
26 107710 2 Bolt $8.04
27 12638601 4 Rondella $0.90
28 12574511 4 Self-locking Nut Superseded
29 104189 1 Bolt Unavailable
30 13518021 2 Pr.igioniero $7.51
31 13517821 1 THREADED STUD Superseded
32 107711 1 Bolt $8.57
33 10519601 4 Rondella Superseded
34 16104111 4 Self-locking Nut Superseded
35 12429721 5 THREADED STUD Unavailable
36 16104111 6 Rondella elastica Superseded
37 12601371 6 Nut Superseded
38 13517221 4 THREADED STUD Superseded
39 13517821 1 THREADED STUD Superseded
40 13517621 1 THREADED STUD Superseded
41 16100811 6 Nut Superseded
42 11198071 6 Rondella Superseded
43 13541121 30 THREADED STUD Superseded
44 11197771 30 Rondella Superseded
45 15896211 30 Nut Superseded
46 104218 1 Vite $2.42
47 16100811 1 Nut Superseded
48 10516670 1 Rondella $0.90
49 10158801 1 Tappo Superseded
50 104280 1 Tappo $9.72
51 10275001 2 Tappo Superseded
52 10263460 3 GASKET Superseded
53 106427 1 Corpo rinvio contachilometri Unavailable
54 101349 1 Bolt $21.58
55 104103 1 Sealing Ring Unavailable
56 107096 1 Pignone contachilometri $1,106.51
57 105674 1 Rullo reggispinta $11.96
58 101848 1 Sealing Ring $3.49
59 106324 1 Generatore d''impulsi Superseded
60 103838 2 Dowel $4.20
61 10450090 1 Jubilee Clip $3.23
62 108226 1 Coperchio laterale differenziale $205.40
63 103839 2 Anellino $12.93
64 103423 1 Idem spessore mm 2,60 Unavailable
64 103422 1 Idem spessore mm 2,40 $105.68
64 103231 1 Distanziale per cuscinetti differenziale, spessore mm 2,862
Di eventuate montaggio 		Superseded
64 109145 1 Idem spessore rnm 4,3 $55.89
64 103426 1 Idem spessore mm 3,20 $234.12
64 103425 1 Idem spessore mm 3,00 $105.68
64 103424 1 Idem spessore mm 2,80 Unavailable
65 104300 2 Sealing Ring Superseded
66 13443421 1 THREADED STUD Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
