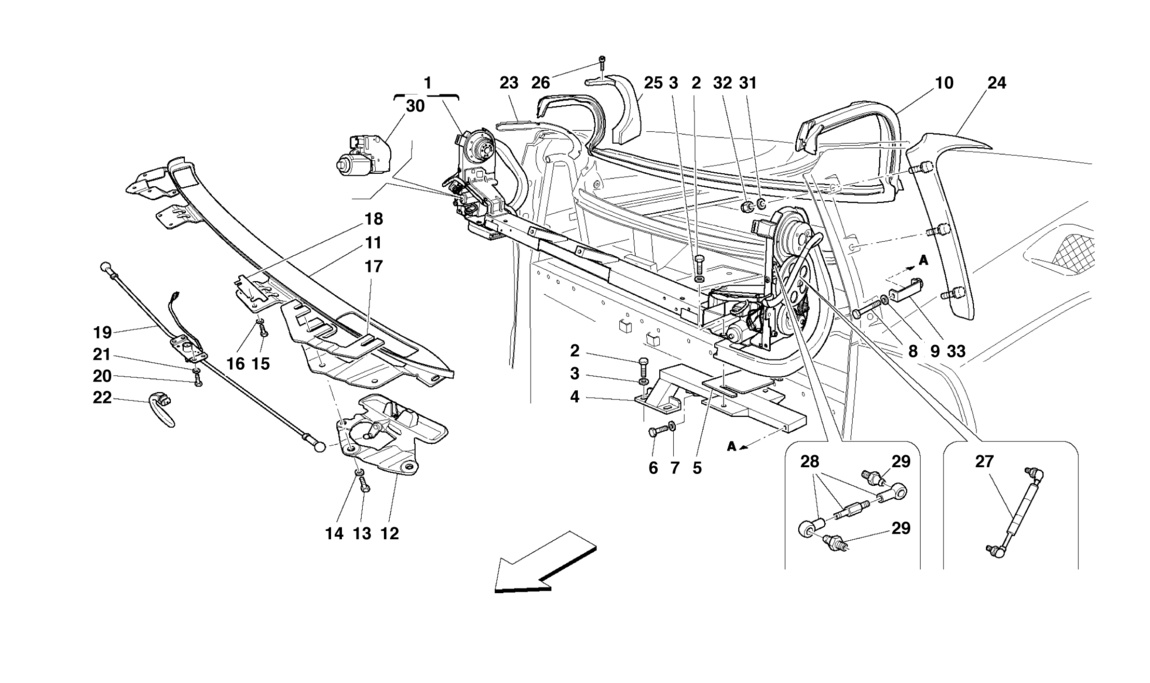

SUN ROOF MOVEMENT AND CLOSING

Go to Split View

SUN ROOF MOVEMENT AND CLOSING

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 68708600 *Qty: 1 MOTORISED CARRIER -Complete with engine-ECU connector cable- $25,019.75
Location: 2 Prev | Next Part: 16043424 *Qty: 8 SCREW $0.90
Location: 3 Prev | Next Part: 12638501 *Qty: 8 WASHER Superseded
Location: 4 Prev | Next Part: 68742700 *Qty: 1 L.H. REAR FRAME $816.75
Location: 4 Prev | Next Part: 68679000 *Qty: 1 R.H. REAR FRAME $816.75
Location: 5 Prev | Next Part: 69078700 *Qty: 8 THICKNESS -mm. 1- $5.47
Location: 5 Prev | Next Part: 69220900 *Qty: 2 THICKNESS -mm. 2- -Possible fitting- $8.52
Location: 5 Prev | Next Part: 69221000 *Qty: 2 THICKNESS -mm. 3- -Possible fitting- $10.09
Location: 6 Prev | Next Part: 10902424 *Qty: 2 SCREW $0.90
Location: 7 Prev | Next Part: 13550201 *Qty: 2 WASHER Superseded
Location: 8 Prev | Next Part: 16044024 *Qty: 2 SCREW $0.90
Location: 9 Prev | Next Part: 12638501 *Qty: 2 WASHER Superseded
Location: 10 Prev | Next Part: 68703400 *Qty: 1 GLASS SCRAPER GASKET $895.81
Location: 11 Prev | Next Part: 68829000 *Qty: 1 ENCLOSURE SUPPORT $1,156.97
Location: 12 Prev | Next Part: 68709300 *Qty: 1 L.H. LOCK $657.69
Location: 12 Prev | Next Part: 68709200 *Qty: 1 R.H. LOCK $657.69
Location: 13 Prev | Next Part: 10902624 *Qty: 6 SCREW Unavailable
Location: 14 Prev | Next Part: 13550201 *Qty: 6 WASHER Superseded
Location: 15 Prev | Next Part: 10978024 *Qty: 4 SCREW Unavailable
Location: 16 Prev | Next Part: 12637801 *Qty: 4 WASHER Superseded
Location: 17 Prev | Next Part: 68828900 *Qty: 1 L.H. THICKNESS -mm. 1- $25.88
Location: 17 Prev | Next Part: 69238100 *Qty: 1 L.H. THICKNESS -mm. 2- -Possible fitting- $27.38
Location: 17 Prev | Next Part: 69238200 *Qty: 1 L.H. THICKNESS -mm. 3- -Possible fitting- $29.35
Location: 17 Prev | Next Part: 68831300 *Qty: 1 R.H. THICKNESS -mm. 1- $88.00
Location: 17 Prev | Next Part: 69237900 *Qty: 1 R.H. THICKNESS -mm. 2- -Possible fitting- $27.38
Location: 17 Prev | Next Part: 69238000 *Qty: 1 R.H. THICKNESS -mm. 3- -Possible fitting- $29.21
Location: 18 Prev | Next Part: 68828800 *Qty: 2 THICKNESS -mm. 1- $17.44
Location: 18 Prev | Next Part: 69237700 *Qty: 2 THICKNESS -mm. 2- -Possible fitting- $16.75
Location: 18 Prev | Next Part: 69237800 *Qty: 2 THICKNESS -mm. 3- -Possible fitting- $18.84
Location: 19 Prev | Next Part: 68710500 *Qty: 1 INNER DEVICE FOR HANDLE CONNECTION Unavailable
Location: 20 Prev | Next Part: 10902024 *Qty: 4 SCREW $0.90
Location: 21 Prev | Next Part: 13550201 *Qty: 4 WASHER Superseded
Location: 22 Prev | Next Part: 68709400 *Qty: 1 SUN ROOF LOCKING/UNLOCKING HANDLE WITH PIN -Not as spare part- -Replaced by 693032..- Unavailable
Location: 22 Prev | Next Part: 693032.. *Qty: 1 SUN ROOF LOCKING/UNLOCKING HANDLE WITH PIN Unavailable
Location: 23 Prev | Next Part: 68930700 *Qty: 1 R.H. PLATE Unavailable
Location: 23 Prev | Next Part: 68930800 *Qty: 1 L.H. PLATE Unavailable
Location: 24 Prev | Next Part: 68709900 *Qty: 1 L.H. OUTER MOULDING $188.48
Location: 24 Prev | Next Part: 68709800 *Qty: 1 R.H. OUTER MOULDING $188.48
Location: 25 Prev | Next Part: 68862400 *Qty: 1 R.H. INNER MOULDING $109.41
Location: 25 Prev | Next Part: 68862500 *Qty: 1 L.H. INNER MOULDING $109.41
Location: 26 Prev | Next Part: 65366700 *Qty: 2 SCREW $1.07
Location: 27 Prev | Next Part: 69271600 *Qty: 2 SUPPORT TO GAS WITH PIN $28.11
Location: 28 Prev | Next Part: 218653 *Qty: 2 TIE ROD $73.28
Location: 29 Prev | Next Part: 69205900 *Qty: 4 BALL PIN -Not as spare part- -Replaced by 63402800- Unavailable
Location: 29 Prev | Next Part: 63402800 *Qty: 4 BALL PIN $2.38
Location: 30 Prev | Next Part: 213040 *Qty: 2 ELECTRIC MOTOR $463.20
Location: 31 Prev | Next Part: 68891200 *Qty: 8 GASKET Unavailable
Location: 32 Prev | Next Part: 14040514 *Qty: 8 NUT Unavailable
Location: 33 Prev | Next Part: 69236500 *Qty: 2 BRACKET Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
