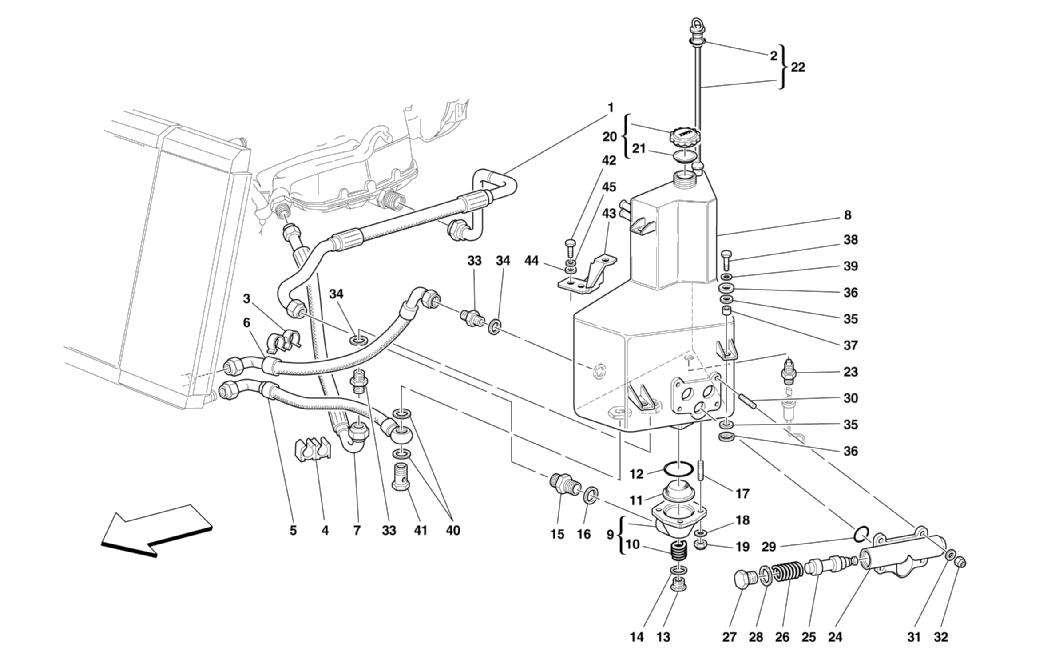

LUBRICATION - OIL TANK

Location Part # Quantity* Description Price Add To Cart
1 165910 1 DELIVERY HOSE FROM TANK TO PUMP Unavailable
2 121813 1 O.R. GASKET $0.90
3 155960 1 FLEXIBLE CLIP Unavailable
4 190219 1 SPRINGS $6.98
5 180809 1 DELIVERY HOSE FROM RESERVOIR TO RADIATOR Unavailable
6 180810 1 RETURN HOSE FROM RADIATOR TO RESERVOIR Unavailable
7 180811 1 RETURN HOSE FROM OIL SUMP TO TANK Unavailable
8 184482 1 OIL TANK $4,539.77
9 151684 1 OIL SUCTION FAN Unavailable
10 111352 1 THREADED INSERT Unavailable
11 100332 1 OIL FILTER $27.59
12 125521 1 O.R. GASKET $13.84
13 10300771 1 OIL OUTLET PLUG $17.00
14 10257060 1 GASKET $0.90
15 138149 1 UNION $63.82
16 144485 1 GASKET Superseded
17 11500424 4 STUD Unavailable
18 12601274 4 WASHER $0.90
19 102948 4 NUT Superseded
20 180590 1 COMPLETE PLUG Unavailable
21 180585 1 GASKET $95.80
22 156667 1 COMPLETE OIL LEVEL INDICATOR ROD $11.71
23 104628 1 THERMISTOR $115.59
24 160759 1 VALVE BODY Unavailable
25 163951 1 THERMOSTAT VALVE Unavailable
26 136867 1 SPRING $20.69
27 136868 1 PLUG $79.15
28 144485 1 GASKET Superseded
29 139934 3 O.R. GASKET $1.20
30 13540924 4 STUD $54.79
31 10519424 4 WASHER Unavailable
32 102741 4 NUT $0.90
33 138150 2 UNION $62.10
34 144487 2 GASKET Superseded
35 107978 6 PAD $15.35
36 107979 6 CUP $14.90
37 107980 3 SPACER $8.20
38 16043834 3 SCREW Unavailable
39 127496 3 WASHER $0.90
40 144487 2 GASKET Superseded
41 129809 1 UNION Unavailable
42 16043434 2 SCREW Unavailable
43 166931 1 BRACKET $11.41
44 14496524 2 WASHER $0.90
45 127496 2 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
