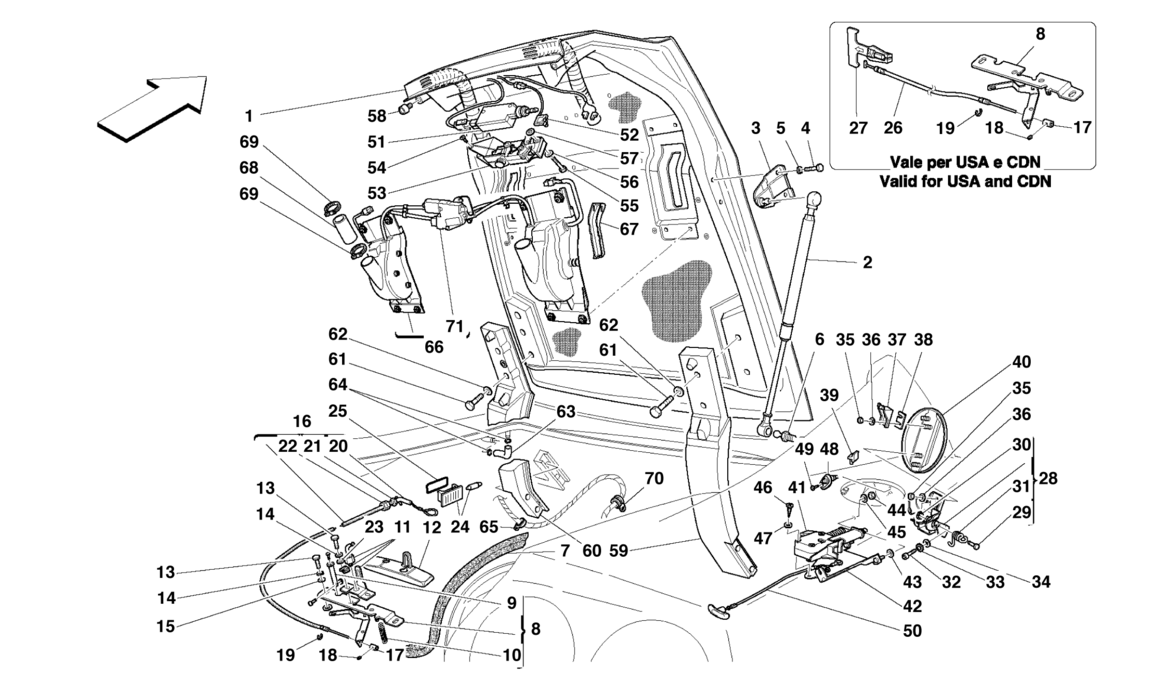

BOOT DOOR AND PETROL COVER

Location Part # Quantity* Description Price Add To Cart
1 68710200 1 COMPLETE TRUNK DOOR Unavailable
2 69059300 2 SHOCK ABSORBER FOR HOOD SUPPORT $38.96
3 68858000 2 BRACKET $63.56
4 10977824 4 SCREW $2.72
5 12637801 4 WASHER Superseded
6 69106400 2 PIN $2.86
7 68548500 1 BONNET GASKET $310.17
8 66466000 1 INNER DEVICE FOR HOOD UNLOCK -Not as spare part- -Replaced by 69411200- $39.67
8 69411200 1 INNER DEVICE FOR HOOD UNLOCK $119.04
9 63709300 1 ROLL Unavailable
10 63709500 1 SPRING $2.66
11 63143600 1 STRIKER $60.33
12 63861700 1 STRIKER PLATE OVERLAP $77.63
13 10902087 4 SCREW Unavailable
14 127494 4 WASHER $0.90
15 12647624 2 WASHER Unavailable
16 69059200 1 COMPLETE EMERGENCY CABLE $140.01
17 60276607 1 CONNECTION -Q.ty 2 for cars USA and CDN- $46.57
18 60276805 1 DOWEL -Q.ty 2 for cars USA and CDN- Unavailable
19 11087676 1 FLEXIBLE RING -Q.ty 2 for cars USA and CDN- Unavailable
20 69306600 1 CURVED PIPE Unavailable
21 16102310 1 NUT Unavailable
22 212191 1 NUT $9.11
23 12647624 2 WASHER Unavailable
24 139517 1 ROOF LIGHT Unavailable
25 157872 1 GASKET Unavailable
26 186500 1 CABLE FOR HANDLE -Valid for USA and CDN- $32.38
27 66403900 1 HANDLE FOR SAFETY CHILDREN -Valid for USA and CDN- $50.02
28 64575900 1 COMPLETE LID HINGE $79.35
29 63196400 1 PIN Unavailable
30 11087676 1 FLEXIBLE RING Unavailable
31 63196500 1 SPRING $105.24
32 14304124 2 SCREW Unavailable
33 12637878 2 WASHER Unavailable
34 12605274 2 WASHER Unavailable
35 13046011 4 NUT Unavailable
36 13579101 4 WASHER Unavailable
37 66679900 1 PLATE $13.78
38 66804900 2 SPACER $3.33
39 63879900 2 RUBBER PAD $22.82
40 68582000 1 FUEL INLET LID Unavailable
41 65395900 1 LID ACTUATOR $178.62
42 66679800 1 BRACKET $12.02
43 61529400 2 GASKET Unavailable
44 168698 2 NUT Unavailable
45 12637824 2 WASHER $0.90
46 15641275 2 SCREW $1.24
47 14496277 2 WASHER $1.02
48 153069 1 SWITCH $7.59
49 15916977 1 SCREW Unavailable
50 66678200 1 FUEL INLET LID SAFETY CABLE $39.67
51 63191100 1 ACTUATOR $373.50
52 173977 1 MICRO-SWITCH $56.41
53 63143300 1 BONNET LOCK $258.80
54 15903870 2 SCREW Unavailable
55 10903224 3 SCREW Superseded
56 10615474 3 WASHER Unavailable
57 10519424 3 WASHER Unavailable
58 67121100 2 RUBBER $1.97
59 68709500 1 R.H. SEMI-LEVER -Arrives also with motorized carrier 68708600- -Tab. 118 Ref. 1- $1,056.27
60 68709600 1 L.H. SEMI-LEVER -Arrives also with motorized carrier 68708600- -Tab. 118 Ref. 1- $1,056.27
61 16287731 8 SCREW $2.88
62 12625201 8 WASHER Superseded
63 69078400 2 WATER EXHAUST TUBE Unavailable
64 13000490 4 SCREW COLLAR Superseded
65 10441490 1 BRACKET WITH SHEATH Unavailable
66 68826200 1 COMPLETE REAR LOCK Unavailable
67 69336600 1 R.H. AESTHETIC COVER Unavailable
67 69336700 1 L.H. AESTHETIC COVER Unavailable
68 69348500 2 WATER EXHAUST TUBE $45.78
69 180957 4 COLLAR FOR SLEEVE Unavailable
70 10441190 1 BRACKET WITH SHEATH $0.90
71 214104 1 ELECTRIC MOTOR $422.22

* Quantity shown indicates the number of pieces used in the diagram.
