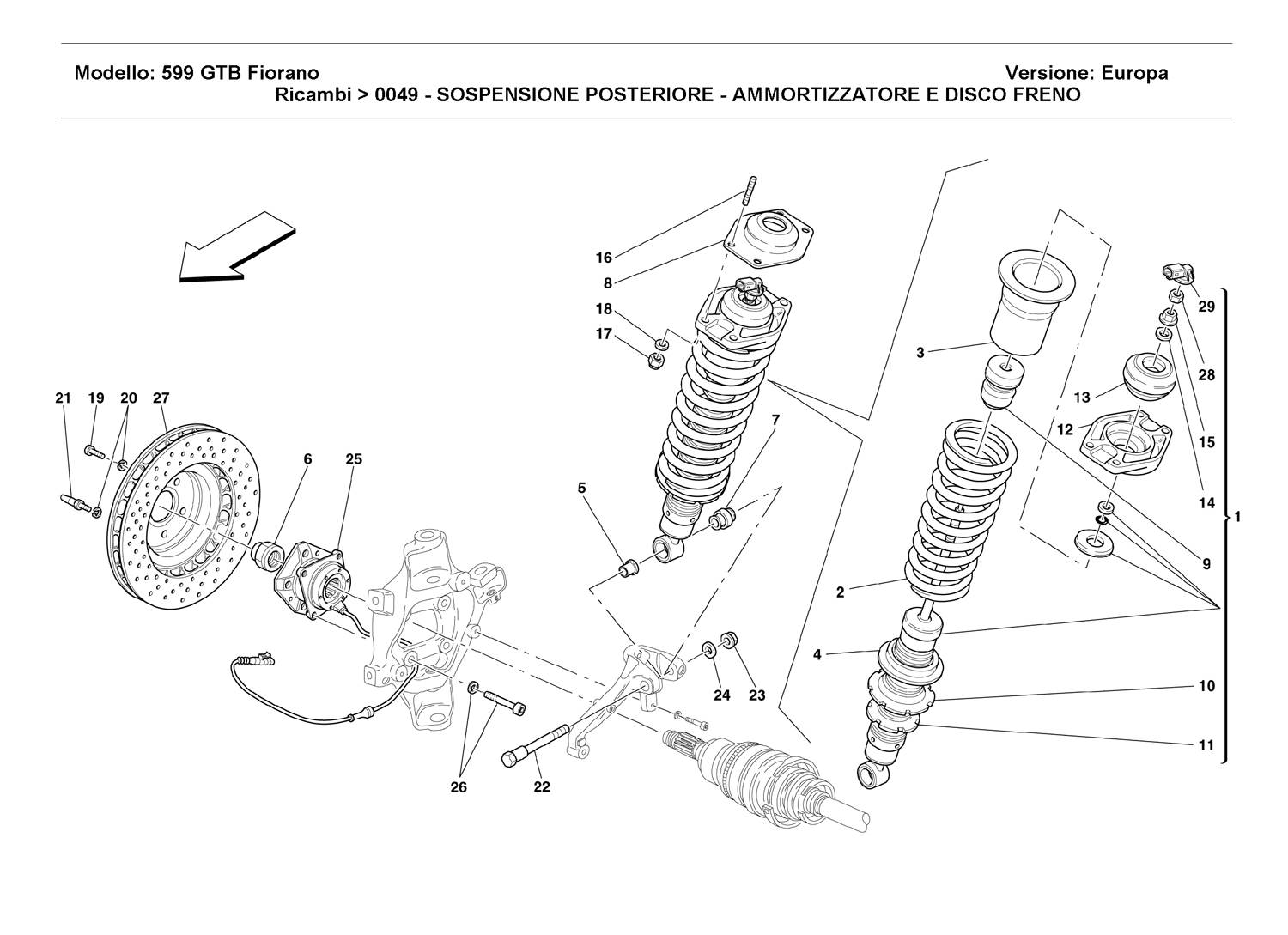

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 212509 *Qty: 2 REAR SHOCK ABSORBER Unavailable
Location: 2 Prev | Next Part: 211757 *Qty: 2 SUSPENSION SPRING $98.15
Location: 3 Prev | Next Part: 186489 *Qty: 2 UPPER SPACER $21.66
Location: 4 Prev | Next Part: 186487 *Qty: 2 LOWER SPACER $29.92
Location: 5 Prev | Next Part: 190702 *Qty: 2 SPACER $124.65
Location: 6 Prev | Next Part: 203780 *Qty: 2 NUT $25.46
Location: 7 Prev | Next Part: 157630 *Qty: 2 SHOCK ABSORBER BUSHING $106.14
Location: 8 Prev | Next Part: 190332 *Qty: 2 UPPER CUP $8.72
Location: 9 Prev | Next Part: 220349 *Qty: 2 SHOCK ABSORBER PAD $74.77
Location: 10 Prev | Next Part: 220350 *Qty: 2 SPACER $168.41
Location: 11 Prev | Next Part: 220351 *Qty: 2 RING NUT $50.80
Location: 12 Prev | Next Part: 190330 *Qty: 2 LOWER CUP $25.78
Location: 13 Prev | Next Part: 204606 *Qty: 2 HYPERBLOCK $216.08
Location: 14 Prev | Next Part: 220377 *Qty: 2 WASHER $8.65
Location: 15 Prev | Next Part: 220378 *Qty: 2 NUT $5.37
Location: 16 Prev | Next Part: 13543634 *Qty: 8 STUD $1.07
Location: 17 Prev | Next Part: 104030 *Qty: 8 NUT $0.90
Location: 18 Prev | Next Part: 14496524 *Qty: 8 WASHER $0.90
Location: 19 Prev | Next Part: 16043424 *Qty: 2 SCREW $0.90
Location: 20 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 21 Prev | Next Part: 104370 *Qty: 2 BRAKE DISC FIXING SCREW $0.90
Location: 22 Prev | Next Part: 190530 *Qty: 2 SCREW $70.66
Location: 23 Prev | Next Part: 14058721 *Qty: 2 NUT Unavailable
Location: 24 Prev | Next Part: 155002 *Qty: 2 WASHER $16.58
Location: 25 Prev | Next Part: 197232 *Qty: 2 BEARING FOR WHEEL $784.13
Location: 26 Prev | Next Part: 190723 *Qty: 8 SCREW WITH WASHER $11.07
Location: 27 Prev | Next Part: 198488 *Qty: 2 REAR BRAKE DISC
-Standard-
$564.10
Location: 27 Prev | Next Part: 216835 *Qty: 2 REAR BRAKE DISC
-CCM version-
$5,027.43
Location: 28 Prev | Next Part: 220382 *Qty: 2 NUT $44.84
Location: 29 Prev | Next Part: 245841 *Qty: 2 CONNECTOR Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
