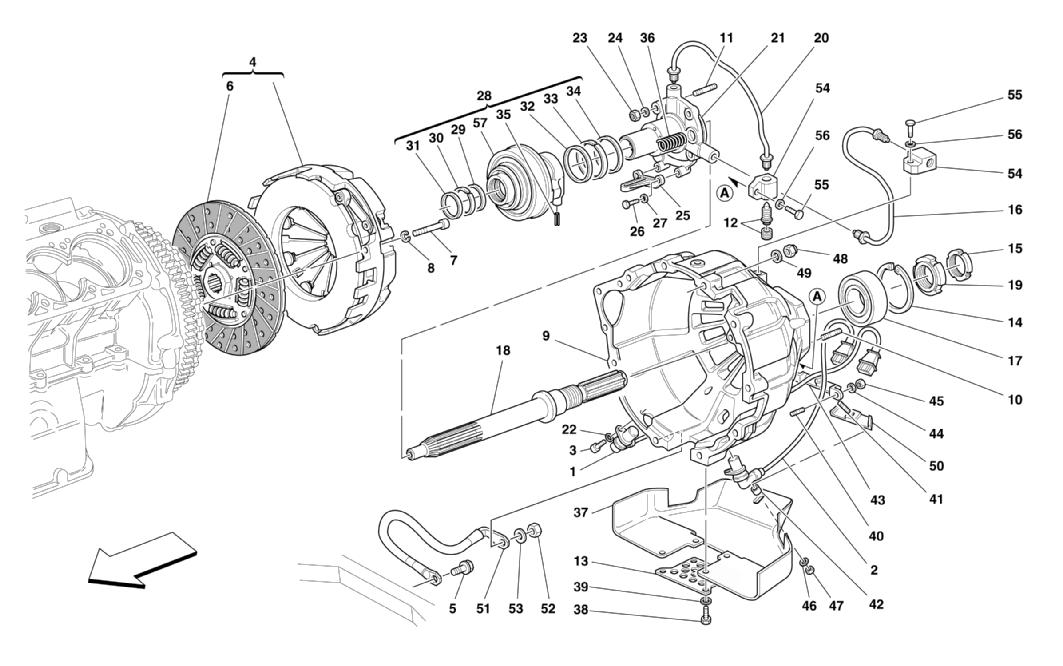

CLUTCH AND CONTROLS -NOT FOR F1-

Go to Split View

CLUTCH AND CONTROLS -NOT FOR F1-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 189548 *Qty: 1 R.H. SIDE ANGOLAR SPEED SENSOR $82.82
Location: 2 Prev | Next Part: 189540 *Qty: 1 L.H. SIDE ANGOLAR SPEED SENSOR $207.30
Location: 3 Prev | Next Part: 14305124 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 194775 *Qty: 1 COMPLETE CLUTCH $2,849.39
Location: 5 Prev | Next Part: 16296421 *Qty: 1 SCREW $36.24
Location: 6 Prev | Next Part: 194776 *Qty: 1 CLUTCH DISC $1,269.22
Location: 7 Prev | Next Part: 14305974 *Qty: 9 SCREW Unavailable
Location: 8 Prev | Next Part: 127494 *Qty: 9 WASHER $0.90
Location: 9 Prev | Next Part: 151601 *Qty: 1 COMPLETE CLUTCH HOUSING Unavailable
Location: 9 Prev | Next Part: 168915 *Qty: 1 CLUTCH HOUSING -With complete clutch housing Unavailable
Location: 10 Prev | Next Part: 13546334 *Qty: 8 STUD $1.11
Location: 11 Prev | Next Part: 13543124 *Qty: 4 STUD Unavailable
Location: 12 Prev | Next Part: 121699 *Qty: 1 BLEEDER SCREW $52.05
Location: 13 Prev | Next Part: 144441 *Qty: 1 CLUTCH HOUSING SMALL COVER $3.24
Location: 14 Prev | Next Part: 144511 *Qty: 1 STOP RING $2.33
Location: 15 Prev | Next Part: 165576 *Qty: 1 RING NUT $24.50
Location: 16 Prev | Next Part: 165759 *Qty: 1 OIL DELIVERY TUBE $381.30
Location: 17 Prev | Next Part: 145805 *Qty: 1 BEARING $146.53
Location: 18 Prev | Next Part: 165573 *Qty: 1 CLUTCH SHAFT $589.57
Location: 19 Prev | Next Part: 165575 *Qty: 1 RING NUT $24.50
Location: 20 Prev | Next Part: 165733 *Qty: 1 VENT PIPE Unavailable
Location: 21 Prev | Next Part: 169137 *Qty: 1 FLANGE WITH SLEEVE $895.49
Location: 22 Prev | Next Part: 12601274 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: 133989 *Qty: 4 NUT $0.90
Location: 24 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 25 Prev | Next Part: 151693 *Qty: 1 PLATE Unavailable
Location: 26 Prev | Next Part: 10977524 *Qty: 2 SCREW $0.90
Location: 27 Prev | Next Part: 127493 *Qty: 2 WASHER $0.90
Location: 28 Prev | Next Part: CRB456/550 *Qty: 1 Thrust Bearing with Seals $478.00
Location: 28 Prev | Next Part: 177201 *Qty: 1 COMPLETE THRUST BEARING -Not as spare part now $1,070.09
Location: 29 Prev | Next Part: 154505 *Qty: 1 SEAL RING $12.40
Location: 30 Prev | Next Part: 154504 *Qty: 1 RING $6.54
Location: 31 Prev | Next Part: 154550 *Qty: 1 SCRAPER RING $22.52
Location: 32 Prev | Next Part: 154508 *Qty: 1 SEAL RING $37.05
Location: 33 Prev | Next Part: 154507 *Qty: 1 RING $3.61
Location: 34 Prev | Next Part: 154551 *Qty: 1 SCRAPER RING $25.42
Location: 35 Prev | Next Part: 13904970 *Qty: 1 FLEXIBLE PIN Unavailable
Location: 36 Prev | Next Part: 155207 *Qty: 2 PRELOAD SPRING $11.12
Location: 37 Prev | Next Part: 170115 *Qty: 1 SHIELD FOR FASE SENSOR PROTECTION $440.81
Location: 38 Prev | Next Part: 10977824 *Qty: 4 SCREW $2.24
Location: 39 Prev | Next Part: 12601174 *Qty: 4 WASHER $0.90
Location: 40 Prev | Next Part: 13540824 *Qty: 2 STUD Unavailable
Location: 41 Prev | Next Part: 155177 *Qty: 1 STUD $9.42
Location: 42 Prev | Next Part: 155175 *Qty: 1 SPACER $1.86
Location: 43 Prev | Next Part: 154464 *Qty: 1 SUPPORT $42.57
Location: 44 Prev | Next Part: 12639724 *Qty: 2 WASHER Unavailable
Location: 45 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 46 Prev | Next Part: 11199274 *Qty: 1 WASHER Unavailable
Location: 47 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 48 Prev | Next Part: 16100814 *Qty: 5 NUT Unavailable
Location: 49 Prev | Next Part: 12601374 *Qty: 5 WASHER Unavailable
Location: 50 Prev | Next Part: 146654 *Qty: 1 SUPPORT $80.68
Location: 51 Prev | Next Part: 155918 *Qty: 1 GROUND CABLE $21.07
Location: 52 Prev | Next Part: 15896470 *Qty: 1 NUT $0.90
Location: 53 Prev | Next Part: 11199274 *Qty: 1 WASHER Unavailable
Location: 54 Prev | Next Part: 139471 *Qty: 2 UNION $38.38
Location: 55 Prev | Next Part: 10902624 *Qty: 2 SCREW Unavailable
Location: 56 Prev | Next Part: 11181874 *Qty: 2 WASHER Unavailable
Location: 57 Prev | Next Part: 177201 *Qty: 1 THRUST BEARING $1,070.09

* Quantity shown indicates the number of pieces used in the diagram.
