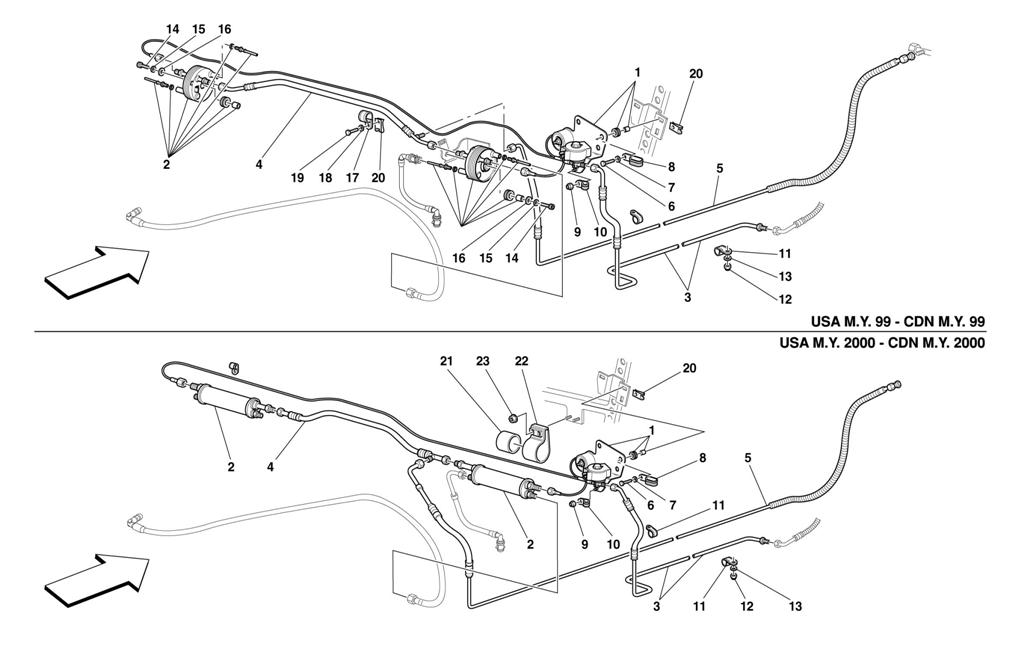

FUEL COOLING SYSTEM -VALID FOR USA AND CDN M.Y. 99 & 2000-

Go to Split View

FUEL COOLING SYSTEM -VALID FOR USA AND CDN M.Y. 99 & 2000-

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65864300 *Qty: 1 COMPLETE SOLENOID VALVE BODY $552.11
Location: 2 Prev | Next Part: 179811 *Qty: 2 FUEL/FREON HEAT EXCHANGER -Valid for USA M.Y. 99 and CDN M.Y. 99 $1,425.42
Location: 2 Prev | Next Part: 180838 *Qty: 2 FUEL/FREON HEAT EXCHANGER -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Unavailable
Location: 3 Prev | Next Part: 65857000 *Qty: 1 INLET GAS PIPE TO VALVE $136.80
Location: 4 Prev | Next Part: 65857400 *Qty: 1 EXCHANGER PIPE CONNECTION -Valid for USA M.Y. 99 and CDN M.Y. 99 $170.91
Location: 4 Prev | Next Part: 65930200 *Qty: 1 EXCHANGER PIPE CONNECTION -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $136.80
Location: 5 Prev | Next Part: 65857500 *Qty: 1 UNDERFLOOR SUCTION GAS PIPE -Valid for USA M.Y. 99 and CDN M.Y. 99 $410.24
Location: 5 Prev | Next Part: 65930300 *Qty: 1 UNDERFLOOR SUCTION GAS PIPE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $197.07
Location: 6 Prev | Next Part: 10902624 *Qty: 3 SCREW Unavailable
Location: 7 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 8 Prev | Next Part: 61712500 *Qty: 1 BRACKET $1.92
Location: 9 Prev | Next Part: 102741 *Qty: 1 NUT $0.90
Location: 10 Prev | Next Part: 10440990 *Qty: 1 BRACKET $1.69
Location: 11 Prev | Next Part: 10441290 *Qty: 12 BRACKET Unavailable
Location: 12 Prev | Next Part: 102948 *Qty: 12 NUT Superseded
Location: 13 Prev | Next Part: 14496424 *Qty: 12 WASHER Superseded
Location: 14 Prev | Next Part: 14306374 *Qty: 2 SCREW -Valid for USA M.Y. 99 and CDN M.Y. 99 Unavailable
Location: 15 Prev | Next Part: 127496 *Qty: 2 WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 16 Prev | Next Part: 12646724 *Qty: 2 WASHER -Valid for USA M.Y. 99 and CDN M.Y. 99 Unavailable
Location: 17 Prev | Next Part: 10441790 *Qty: 2 BRACKET -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 18 Prev | Next Part: 127494 *Qty: 3 WASHER $0.90
Location: 19 Prev | Next Part: 10902124 *Qty: 2 SCREW -Valid for USA M.Y. 99 and CDN M.Y. 99 $0.90
Location: 20 Prev | Next Part: 62766300 *Qty: 5 CLIP -For USA M.Y. 2000 and CDN M.Y. 2000 q.ty 3 Unavailable
Location: 21 Prev | Next Part: 181267 *Qty: 1 SLEEVE -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $39.07
Location: 22 Prev | Next Part: 180941 *Qty: 2 CLAMP -Valid for USA M.Y. 2000 and CDN M.Y. 2000 $7.16
Location: 23 Prev | Next Part: 15896214 *Qty: 4 NUT -Valid for USA M.Y. 2000 and CDN M.Y. 2000 Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
