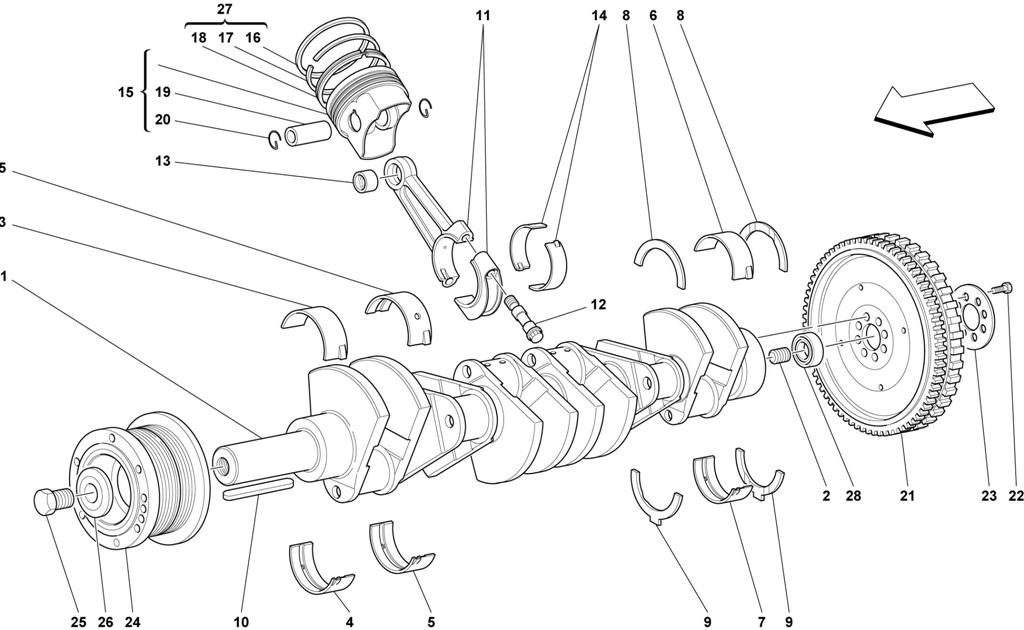

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 156634 *Qty: 1 CRANKSHAFT $3,012.76
Location: 2 Prev | Next Part: 10268450 *Qty: 1 THREADED PLUG $8.70
Location: 3 Prev | Next Part: 173484 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -NOMINAL $1,250.49
Location: 3 Prev | Next Part: 173485 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -1 st UNDERSIZE mm. 0,254 $1,843.54
Location: 3 Prev | Next Part: 173486 *Qty: 1 HALF-BEARINGS COMPLETE SERIES -2 nd UNDERSIZE mm. 0,508 $1,843.54
Location: 8 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM $15.72
Location: 8 Prev | Next Part: 164112 *Qty: 2 UPPER SHIM -1 st OVERSIZE mm. 0,127 Call
Location: 8 Prev | Next Part: 164113 *Qty: 2 UPPER SHIM -2 nd OVERSIZE mm. 0,254 Call
Location: 9 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM $15.72
Location: 9 Prev | Next Part: 164109 *Qty: 2 LOWER SHIM -1 st OVERSIZE mm. 0,127 Call
Location: 9 Prev | Next Part: 164110 *Qty: 2 LOWER SHIM -2 nd OVERSIZE mm. 0,254 Call
Location: 10 Prev | Next Part: 144876 *Qty: 1 KEY $5.19
Location: 11 Prev | Next Part: 170048 *Qty: 12 COMPLETE CONNECTING ROD AND CAP $962.50
Location: 12 Prev | Next Part: 158186 *Qty: 24 CONNECTING ROD TIGHTENING SCREW $115.47
Location: 13 Prev | Next Part: 170047 *Qty: 12 BUSHING $47.64
Location: 14 Prev | Next Part: 166566 *Qty: 24 CONNECTING ROD HALF BEARING -3 rd OVERSIZE mm. 0,762 $93.18
Location: 14 Prev | Next Part: 202389 *Qty: 24 CONNECTING ROD HALF BEARING $42.71
Location: 14 Prev | Next Part: 166564 *Qty: 24 CONNECTING ROD HALF BEARING -1 st OVERSIZE mm. 0,254 $71.24
Location: 14 Prev | Next Part: 166565 *Qty: 24 CONNECTING ROD HALF BEARING -2 nd OVERSIZE mm. 0,508 $80.05
Location: 15 Prev | Next Part: 171090 *Qty: 12 PISTON WITH RINGS -Valid till engine Nr 44633 $365.48
Location: 15 Prev | Next Part: 173808 *Qty: 12 PISTON WITH RINGS -Valid from engine Nr 44634 and valid till engine Nr 54458 $1,033.21
Location: 15 Prev | Next Part: 180805 *Qty: 12 PISTON WITH RINGS -Valid from engine Nr 54459 $355.95
Location: 16 Prev | Next Part: 157089 *Qty: 12 SEAL RING -1st groove -With complete series 159987 Call
Location: 17 Prev | Next Part: 156288 *Qty: 12 SEAL RING -2nd groove -With complete series 159987 Call
Location: 18 Prev | Next Part: 154098 *Qty: 12 OIL SCRAPING RING -3rd groove -With complete series 159987 Call
Location: 19 Prev | Next Part: 154717 *Qty: 12 PIN $38.24
Location: 20 Prev | Next Part: 166901 *Qty: 24 STOP RING $7.41
Location: 21 Prev | Next Part: 193051 *Qty: 1 ENGINE FLYWHEEL $1,308.17
Location: 22 Prev | Next Part: 103875 *Qty: 8 SCREW Superseded
Location: 23 Prev | Next Part: 103876 *Qty: 1 WASHER $10.96
Location: 24 Prev | Next Part: 168565 *Qty: 1 TORSION DAMPER Call
Location: 25 Prev | Next Part: 140925 *Qty: 1 SCREW Call
Location: 26 Prev | Next Part: 140922 *Qty: 1 WASHER Call
Location: 27 Prev | Next Part: 159987 *Qty: 12 PISTONS RINGS SET $185.89
Location: 28 Prev | Next Part: 103877 *Qty: 1 BEARING FOR SHAFT $29.17

* Quantity shown indicates the number of pieces used in the diagram.
