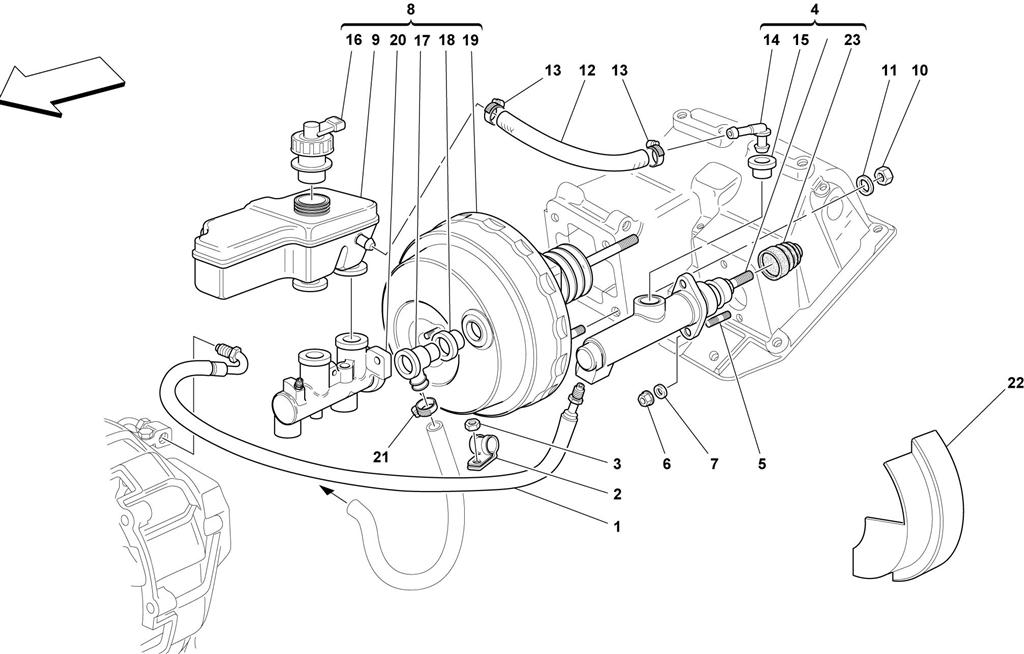

BRAKE AND CLUTCH HYDRAULIC SYSTEM

Go to Split View

BRAKE AND CLUTCH HYDRAULIC SYSTEM

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 154009 *Qty: 1 CLUTCH CONTROL TUBE -Not for RHD $627.98
Location: 1 Prev | Next Part: 156119 *Qty: 1 CLUTCH CONTROL TUBE -Valid for RHD $268.44
Location: 2 Prev | Next Part: 10441590 *Qty: 2 BRACKET WITH SHEATH Unavailable
Location: 3 Prev | Next Part: 102948 *Qty: 2 NUT Superseded
Location: 4 Prev | Next Part: 175211 *Qty: 1 CLUTCH CONTROL PUMP $306.72
Location: 5 Prev | Next Part: 13516824 *Qty: 2 STUD Unavailable
Location: 6 Prev | Next Part: 133215 *Qty: 2 NUT $3.09
Location: 7 Prev | Next Part: 12601374 *Qty: 2 WASHER Unavailable
Location: 8 Prev | Next Part: 169363 *Qty: 1 BRAKE BOOSTER WITH PUMP Unavailable
Location: 9 Prev | Next Part: 171783 *Qty: 1 BRAKE OIL TANK $87.21
Location: 10 Prev | Next Part: 101139 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: 12601374 *Qty: 2 WASHER Unavailable
Location: 12 Prev | Next Part: 173882 *Qty: 1 RUBBER PIPE $15.61
Location: 13 Prev | Next Part: 157934 *Qty: 2 SCREW COLLAR Superseded
Location: 14 Prev | Next Part: 184497 *Qty: 1 UNION -Valid for clutch pump 175211 Unavailable
Location: 15 Prev | Next Part: 175189 *Qty: 1 SEAL RING -Valid for clutch pump 175211 $22.07
Location: 16 Prev | Next Part: 153592 *Qty: 2 PLUG $60.93
Location: 17 Prev | Next Part: 144552 *Qty: 1 UNION $15.06
Location: 18 Prev | Next Part: 151475 *Qty: 1 CABLE GROMMET $11.65
Location: 19 Prev | Next Part: 171785 *Qty: 1 BOOSTER $906.16
Location: 20 Prev | Next Part: 171782 *Qty: 1 BRAKE PUMP $726.95
Location: 21 Prev | Next Part: 13000390 *Qty: 1 SCREW COLLAR $0.90
Location: 22 Prev | Next Part: 169745 *Qty: 1 INSULATING SHIELD FOR BRAKE BOOSTER -Not for RHD $96.85
Location: 22 Prev | Next Part: 172812 *Qty: 1 INSULATING SHIELD FOR BRAKE BOOSTER -Valid for RHD $102.58
Location: 23 Prev | Next Part: 175212 *Qty: 1 PROTECTION BOOT -Valid for clutch pump 175211 $30.05

* Quantity shown indicates the number of pieces used in the diagram.
