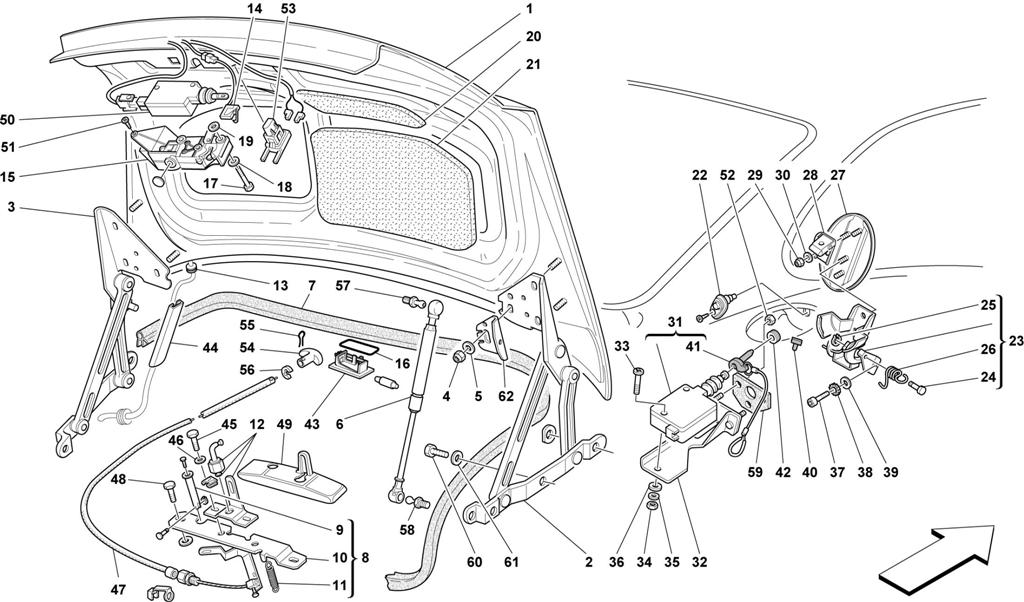

BOOT DOOR AND PETROL COVER

Go to Split View

BOOT DOOR AND PETROL COVER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 64716000 *Qty: 1 REAR HOOD BONNET $3,312.96
Location: 2 Prev | Next Part: 63143000 *Qty: 1 R.H. LID HINGE $495.56
Location: 3 Prev | Next Part: 63143100 *Qty: 1 L.H. LID HINGE $495.56
Location: 4 Prev | Next Part: 14039614 *Qty: 8 NUT $0.90
Location: 5 Prev | Next Part: 12643724 *Qty: 6 WASHER Superseded
Location: 6 Prev | Next Part: 63701800 *Qty: 2 SHOCK ABSORBER FOR HOOD SUPPORT $61.20
Location: 7 Prev | Next Part: 64576900 *Qty: 1 BONNET GASKET $386.48
Location: 8 Prev | Next Part: 66466000 *Qty: 1 INNER DEVICE FOR HOOD UNLOCK $30.63
Location: 9 Prev | Next Part: 63709300 *Qty: 1 ROLL $13.98
Location: 10 Prev | Next Part: 63709100 *Qty: 1 PLATE $10.63
Location: 11 Prev | Next Part: 63709500 *Qty: 1 SPRING $2.57
Location: 12 Prev | Next Part: 63143600 *Qty: 1 STRIKER $57.98
Location: 13 Prev | Next Part: 10396180 *Qty: 2 CABLE GROMMET $1.13
Location: 14 Prev | Next Part: 173977 *Qty: 1 MICRO-SWITCH $54.22
Location: 15 Prev | Next Part: 63143300 *Qty: 1 BONNET LOCK $198.38
Location: 16 Prev | Next Part: 139934 *Qty: 1 GASKET $0.99
Location: 17 Prev | Next Part: 10903224 *Qty: 3 SCREW Superseded
Location: 18 Prev | Next Part: 10615474 *Qty: 3 WASHER $0.90
Location: 19 Prev | Next Part: 10519424 *Qty: 3 WASHER Call
Location: 20 Prev | Next Part: 64981300 *Qty: 1 R.H. LOWER INSULATOR $113.68
Location: 20 Prev | Next Part: 64981400 *Qty: 1 L.H. LOWER INSULATOR $113.68
Location: 21 Prev | Next Part: 64981100 *Qty: 1 UPPER R.H. INSULATION $142.58
Location: 21 Prev | Next Part: 64981200 *Qty: 1 UPPER L.H. INSULATION $146.39
Location: 22 Prev | Next Part: 153069 *Qty: 1 SWITCH $6.26
Location: 23 Prev | Next Part: 64575900 *Qty: 1 COMPLETE LID HINGE $64.46
Location: 24 Prev | Next Part: 63196400 *Qty: 1 PIN Call
Location: 25 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 26 Prev | Next Part: 63196500 *Qty: 1 SPRING $86.53
Location: 27 Prev | Next Part: 64575300 *Qty: 1 FUEL INLET LID $64.88
Location: 28 Prev | Next Part: 64905800 *Qty: 1 PLATE $22.95
Location: 29 Prev | Next Part: 14084111 *Qty: 4 NUT $0.90
Location: 30 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 31 Prev | Next Part: 65841600 *Qty: 1 LID ACTUATOR $300.42
Location: 32 Prev | Next Part: 64575600 *Qty: 1 BRACKET $119.06
Location: 33 Prev | Next Part: 13273014 *Qty: 2 SCREW $0.90
Location: 34 Prev | Next Part: 10794011 *Qty: 2 NUT $0.90
Location: 35 Prev | Next Part: 127492 *Qty: 2 WASHER $0.90
Location: 36 Prev | Next Part: 10519224 *Qty: 2 WASHER $0.90
Location: 37 Prev | Next Part: 14304124 *Qty: 2 SCREW $0.90
Location: 38 Prev | Next Part: 12637878 *Qty: 2 WASHER Call
Location: 39 Prev | Next Part: 12605274 *Qty: 2 WASHER $0.90
Location: 40 Prev | Next Part: 63879900 *Qty: 2 RUBBER PAD $12.00
Location: 41 Prev | Next Part: 63716300 *Qty: 1 PIN FOR DOOR $8.66
Location: 42 Prev | Next Part: 10396280 *Qty: 1 CABLE GROMMET $0.90
Location: 43 Prev | Next Part: 139517 *Qty: 1 ROOF LIGHT $14.27
Location: 44 Prev | Next Part: 63887300 *Qty: 1 COVER FOR CABLES $0.90
Location: 45 Prev | Next Part: 10902087 *Qty: 2 SCREW $1.11
Location: 46 Prev | Next Part: 12647624 *Qty: 2 WASHER $0.90
Location: 47 Prev | Next Part: 65248300 *Qty: 1 EMERGENCY CABLE $17.96
Location: 48 Prev | Next Part: 10902024 *Qty: 4 SCREW $0.90
Location: 49 Prev | Next Part: 63861700 *Qty: 1 STRIKER PLATE OVERLAP $61.81
Location: 50 Prev | Next Part: 63191100 *Qty: 1 ACTUATOR $285.35
Location: 51 Prev | Next Part: 15903870 *Qty: 2 SCREW $0.90
Location: 52 Prev | Next Part: 168698 *Qty: 2 NUT $1.98
Location: 53 Prev | Next Part: 167955 *Qty: 1 SWITCH $15.15
Location: 54 Prev | Next Part: 60710900 *Qty: 1 EMERGENCY HANDLE Call
Location: 55 Prev | Next Part: 60711000 *Qty: 1 CLIP $0.90
Location: 56 Prev | Next Part: 11087676 *Qty: 1 FLEXIBLE RING $0.90
Location: 57 Prev | Next Part: 63402800 *Qty: 2 PIN $2.38
Location: 58 Prev | Next Part: 64577200 *Qty: 2 PIN -Not as spare part now -Replaced by 63402800 Call
Location: 58 Prev | Next Part: 63402800 *Qty: 2 PIN $2.38
Location: 59 Prev | Next Part: 64575700 *Qty: 1 GASKET FOR BRACKET $7.52
Location: 60 Prev | Next Part: 10902224 *Qty: 3 SCREW -R.h. side $0.90
Location: 60 Prev | Next Part: 10902624 *Qty: 3 SCREW -L.h. side $0.90
Location: 61 Prev | Next Part: 12647624 *Qty: 2 WASHER $0.90
Location: 62 Prev | Next Part: 64568600 *Qty: 1 R.H. BRACKET $8.45
Location: 62 Prev | Next Part: 64568700 *Qty: 1 L.H. BRACKET $8.45

* Quantity shown indicates the number of pieces used in the diagram.
