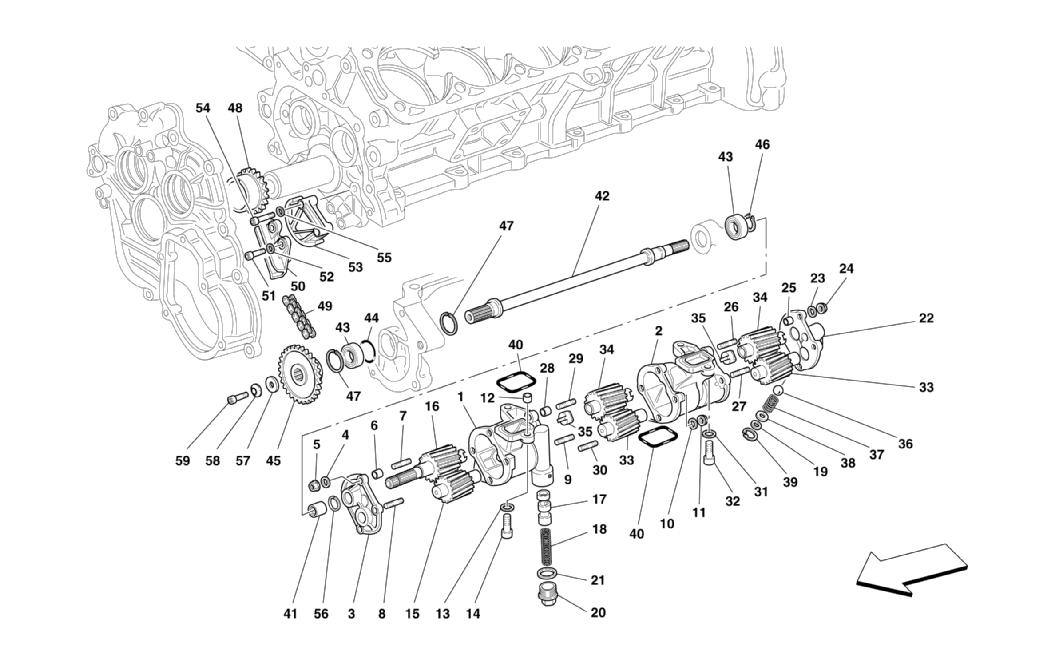

LUBRICATION - OIL PUMPS

Location Part # Quantity* Description Price Add To Cart
- 153198 1 COMPLETE RECOVERY PUMP BODY $2,127.52
- 153197 1 COMPLETE DELIVERY PUMP BODY $1,835.40
1 154575 1 DELIVERY PUMP BODY -With complete delivery pump body Unavailable
2 153198 1 RECOVERY PUMP BODY -With complete recovery pump body $2,127.52
3 141837 1 DELIVERY PUMP COVER $293.31
4 11197771 4 WASHER Superseded
5 134041 4 NUT Unavailable
6 102725 2 CENTERING DOWEL $1.50
7 13541124 2 STUD Unavailable
8 13540824 2 STUD Unavailable
9 11500224 1 STUD Unavailable
10 153366 4 WASHER Unavailable
11 132877 4 NUT Superseded
12 102704 2 CENTERING DOWEL $4.24
13 11193874 2 WASHER $0.90
14 14306524 2 SCREW Unavailable
15 154518 1 DRIVEN GEAR Unavailable
16 154519 1 DRIVING GEAR Unavailable
17 156950 1 PISTON $155.27
18 137614 1 SPRING Unavailable
19 168180 1 WASHER $2.02
20 156143 1 PLUG $16.73
21 10257460 1 GASKET $1.56
22 141838 1 RECOVERY PUMP COVER $127.67
23 11197771 4 WASHER Superseded
24 134041 4 NUT Unavailable
25 102725 2 CENTERING DOWEL $1.50
26 13541224 2 STUD $49.49
27 13540924 1 STUD $54.79
28 102725 2 CENTERING DOWEL $1.50
29 13541124 2 STUD Unavailable
30 13540824 1 STUD Unavailable
31 11193874 2 WASHER $0.90
32 14306424 2 SCREW Unavailable
33 154516 2 DRIVEN GEAR Unavailable
34 154517 2 DRIVING GEAR Unavailable
35 109309 2 COUPLING $18.96
36 121306 1 BALL Unavailable
37 109980 1 SPRING FOR BALL Unavailable
38 132772 1 SPACER Unavailable
39 11057876 1 SEEGER RING Unavailable
40 154588 5 O.R. GASKET $4.61
41 141252 1 COUPLING $54.85
42 157042 1 SHAFT Superseded
43 140915 2 BEARING Unavailable
44 140071 1 O.R. GASKET Unavailable
45 163750 1 DRIVEN GEAR $121.48
46 11066576 1 SEEGER RING Unavailable
47 11058876 2 SEEGER RING Unavailable
48 141459 1 DRIVING GEAR $107.98
49 163753 1 OIL PUMP CONTROL CHAIN $53.47
50 141525 1 CHAIN TENSIONER $124.22
51 14306424 2 SCREW Unavailable
52 14499401 2 WASHER Unavailable
53 152536 1 FIXED TENSION $122.49
54 14305521 2 SCREW Unavailable
55 10569279 2 WASHER Unavailable
56 11066376 2 SEEGER RING Unavailable
57 106744 1 WASHER $12.63
58 11197771 1 WASHER Superseded
59 14305224 1 SCREW Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
