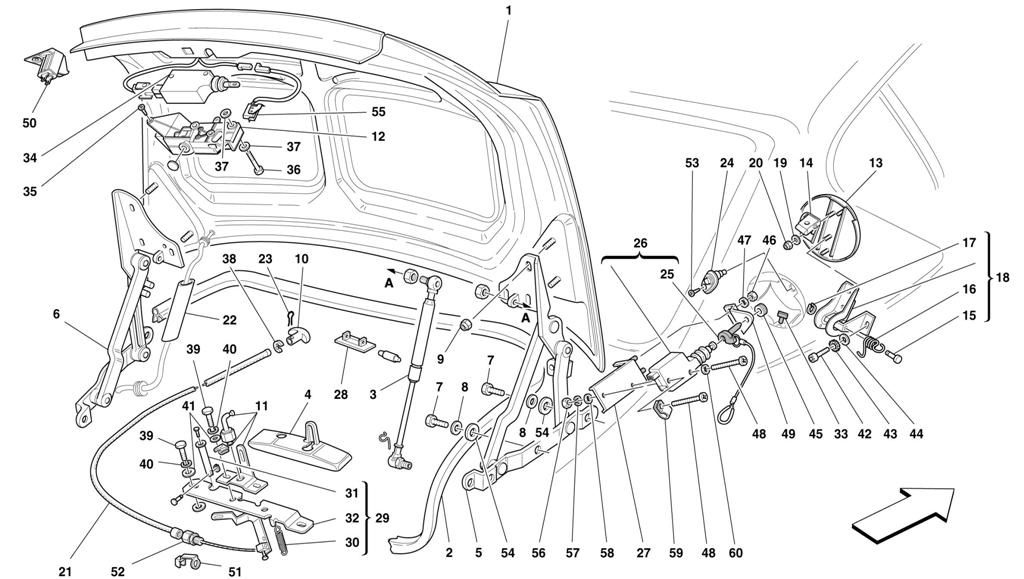

TRUNK HOOD BONNET AND PETROL COVER

Go to Split View

TRUNK HOOD BONNET AND PETROL COVER

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 65377100 *Qty: 1 TRUNK HOOD BONNET Unavailable
Location: 2 Prev | Next Part: 65384900 *Qty: 1 GASKET FOR TRUNK COMPARTMENT $346.81
Location: 3 Prev | Next Part: 63701800 *Qty: 2 GAS SPRING $39.45
Location: 4 Prev | Next Part: 63861700 *Qty: 1 STRIKER PLATE OVERLAP $63.05
Location: 5 Prev | Next Part: 65222700 *Qty: 1 R.H. TRUNK HOOD BONNET HINGE $338.94
Location: 6 Prev | Next Part: 65222800 *Qty: 1 L.H. TRUNK HOOD BONNET HINGE $338.94
Location: 7 Prev | Next Part: 95880322 *Qty: 6 SCREW Unavailable
Location: 8 Prev | Next Part: 10519424 *Qty: 6 WASHER Unavailable
Location: 9 Prev | Next Part: 14039614 *Qty: 6 NUT Unavailable
Location: 10 Prev | Next Part: 60710900 *Qty: 1 EMERGENCY HANDLE Unavailable
Location: 11 Prev | Next Part: 63143600 *Qty: 1 TRUNK HOOD BONNET CLOSING STRIKER $59.13
Location: 12 Prev | Next Part: 63143300 *Qty: 1 TRUNK HOOD BONNET LOCK $202.35
Location: 13 Prev | Next Part: 63707300 *Qty: 1 COMPLETE FUEL INLET LID $140.44
Location: 14 Prev | Next Part: 63771200 *Qty: 1 STRIKER PLATE FOR GAS UNION $10.82
Location: 15 Prev | Next Part: 63196400 *Qty: 1 PIN Unavailable
Location: 16 Prev | Next Part: 63196500 *Qty: 1 SPRING $88.26
Location: 17 Prev | Next Part: 11087676 *Qty: 1 SEEGER RING Unavailable
Location: 18 Prev | Next Part: 63746800 *Qty: 1 HINGE FOR GAS UNION DOOR $52.54
Location: 19 Prev | Next Part: 12638124 *Qty: 4 WASHER $0.90
Location: 20 Prev | Next Part: 14084111 *Qty: 4 NUT Unavailable
Location: 21 Prev | Next Part: 65374500 *Qty: 1 EMERGENCY CABLE Unavailable
Location: 22 Prev | Next Part: 63887300 *Qty: 1 COVER FOR CABLES Unavailable
Location: 23 Prev | Next Part: 60711000 *Qty: 1 CLIP Unavailable
Location: 24 Prev | Next Part: 153069 *Qty: 1 INDICATOR LAMP FOR FUEL DOOR $6.38
Location: 25 Prev | Next Part: 65832900 *Qty: 1 FUEL DOOR SAFETY CABLE $10.06
Location: 25 Prev | Next Part: 63716300 *Qty: 1 COMPLETE PIN -Not as spare part now -Replaced by 65832900 $8.83
Location: 26 Prev | Next Part: 65841600 *Qty: 1 FUEL DOOR ACTUATOR $467.48
Location: 27 Prev | Next Part: 63120900 *Qty: 1 BRACKET FOR ACTUATOR FIXING $3.21
Location: 28 Prev | Next Part: 139517 *Qty: 1 DOME LAMP Unavailable
Location: 29 Prev | Next Part: 66466000 *Qty: 1 COMPLETE TRUNK LOCK DEVICE $31.25
Location: 30 Prev | Next Part: 63709500 *Qty: 1 SPRING $2.62
Location: 31 Prev | Next Part: 63709300 *Qty: 1 EMERGENCY OPENING ROLL $13.98
Location: 32 Prev | Next Part: 63709100 *Qty: 1 PLATE $10.84
Location: 33 Prev | Next Part: 63879900 *Qty: 2 RUBBER PAD Unavailable
Location: 34 Prev | Next Part: 63191100 *Qty: 1 LID ACTUATOR $291.05
Location: 35 Prev | Next Part: 15903870 *Qty: 2 SCREW Unavailable
Location: 36 Prev | Next Part: 10903024 *Qty: 3 SCREW Unavailable
Location: 37 Prev | Next Part: 12601274 *Qty: 3 WASHER $0.90
Location: 38 Prev | Next Part: 11087676 *Qty: 2 FLEXIBLE RING Unavailable
Location: 39 Prev | Next Part: 10902124 *Qty: 4 SCREW $0.90
Location: 40 Prev | Next Part: 127494 *Qty: 4 WASHER $0.90
Location: 41 Prev | Next Part: 12643724 *Qty: 4 WASHER Superseded
Location: 42 Prev | Next Part: 14304124 *Qty: 2 SCREW Unavailable
Location: 43 Prev | Next Part: 12605274 *Qty: 2 WASHER Unavailable
Location: 44 Prev | Next Part: 12638177 *Qty: 2 WASHER Superseded
Location: 45 Prev | Next Part: 10396280 *Qty: 1 RUBBER FOR PIN $3.76
Location: 46 Prev | Next Part: 168698 *Qty: 2 NUT $2.02
Location: 47 Prev | Next Part: 11181574 *Qty: 6 WASHER Unavailable
Location: 48 Prev | Next Part: 13273014 *Qty: 2 SCREW Unavailable
Location: 49 Prev | Next Part: 64061200 *Qty: 1 BRACKET $2.42
Location: 50 Prev | Next Part: 167175 *Qty: 1 SWITCH Unavailable
Location: 51 Prev | Next Part: 62955500 *Qty: 2 CLIP $18.53
Location: 52 Prev | Next Part: 62984500 *Qty: 2 ADJUSTMENT SCREW $6.85
Location: 53 Prev | Next Part: 15915977 *Qty: 1 SCREW Unavailable
Location: 54 Prev | Next Part: 10571570 *Qty: 6 WASHER Unavailable
Location: 55 Prev | Next Part: 173977 *Qty: 1 CABLE COMPLETE MICRO-SWITCH $55.30
Location: 56 Prev | Next Part: 10794014 *Qty: 2 NUT Unavailable
Location: 57 Prev | Next Part: 127492 *Qty: 2 WASHER Unavailable
Location: 58 Prev | Next Part: 10519224 *Qty: 2 WASHER $0.90
Location: 59 Prev | Next Part: 10420301 *Qty: 1 BRACKET Unavailable
Location: 60 Prev | Next Part: 12637824 *Qty: 1 WASHER $0.90

* Quantity shown indicates the number of pieces used in the diagram.
