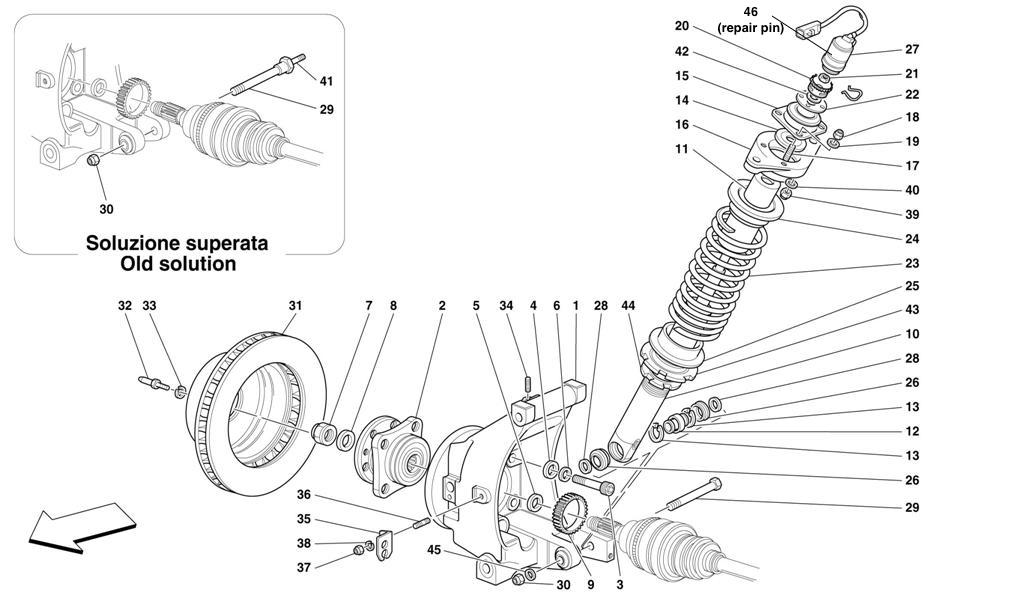

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

Go to Split View

REAR SUSPENSION - SHOCK ABSORBER AND BRAKE DISC

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: -0 Prev | Next Part: 165649 *Qty: 1 COMPLETE R.H. REAR HUB HOLDER -Valid after stock exhaustion of 153210 and till Ass. Nr. 22109 $1,005.57
Location: -0 Prev | Next Part: 165650 *Qty: 1 COMPLETE L.H. REAR HUB HOLDER -Valid after stock exhaustion of 153211 and till Ass. Nr. 22109 $3,243.80
Location: -0 Prev | Next Part: 171554 *Qty: 1 COMPLETE R.H. REAR HUB HOLDER -Valid from Ass. Nr. 22110 and till Ass. Nr. 25930 $3,489.31
Location: -0 Prev | Next Part: 171555 *Qty: 1 COMPLETE L.H. REAR HUB HOLDER -Valid from Ass. Nr. 22110 and till Ass. Nr. 25930 $3,558.15
Location: -0 Prev | Next Part: 175479 *Qty: 1 COMPLETE R.H. REAR HUB HOLDER -Valid from Ass. Nr. 25931 Unavailable
Location: -0 Prev | Next Part: 175480 *Qty: 1 COMPLETE L.H. REAR HUB HOLDER -Valid from Ass. Nr. 25931 $1,175.98
Location: -0 Prev | Next Part: 153211 *Qty: 1 COMPLETE L.H. REAR HUB HOLDER -Valid till stock exhaustion $1,142.02
Location: 1 Prev | Next Part: 154667 *Qty: 1 R.H. REAR HUB HOLDER -With complete R.H. hub older 153210 Unavailable
Location: 1 Prev | Next Part: 154668 *Qty: 0 Description not available Unavailable
Location: 1 Prev | Next Part: 165647 *Qty: 1 R.H. REAR HUB HOLDER -With complete R.H. hub older 165649 Unavailable
Location: 1 Prev | Next Part: 165648 *Qty: 0 Description not available Unavailable
Location: 1 Prev | Next Part: 169444 *Qty: 1 R.H. REAR HUB HOLDER -With complete R.H. hub older 171554 Unavailable
Location: 1 Prev | Next Part: 169445 *Qty: 0 Description not available Unavailable
Location: 1 Prev | Next Part: 175481 *Qty: 1 R.H. REAR HUB HOLDER -With complete R.H. hub older 175479 Unavailable
Location: 1 Prev | Next Part: 175482 *Qty: 0 Description not available Unavailable
Location: 2 Prev | Next Part: 157901 *Qty: 2 BEARING FOR WHEEL $1,400.19
Location: 3 Prev | Next Part: 14331974 *Qty: 8 SCREW $3.35
Location: 4 Prev | Next Part: 10732531 *Qty: 6 WASHER Unavailable
Location: 5 Prev | Next Part: 153355 *Qty: 2 WASHER $5.60
Location: 6 Prev | Next Part: 152250 *Qty: 8 WASHER Unavailable
Location: 7 Prev | Next Part: 167259 *Qty: 2 NUT Superseded
Location: 8 Prev | Next Part: 143332 *Qty: 2 WASHER $63.56
Location: 9 Prev | Next Part: 154313 *Qty: 2 REAR TOOTHED WHEEL $227.94
Location: 10 Prev | Next Part: 169314 *Qty: 2 REAR SHOCK ABSORBER -Sold in pair -Valid after stock exhaustion of 156964 Unavailable
Location: 11 Prev | Next Part: 155278 *Qty: 2 SHOCK ABSORBER PAD Unavailable
Location: 12 Prev | Next Part: 153285 *Qty: 2 BALL JOINT $490.78
Location: 13 Prev | Next Part: 145478 *Qty: 4 SEEGER RING Unavailable
Location: 14 Prev | Next Part: 152654 *Qty: 2 WASHER $36.56
Location: 15 Prev | Next Part: 114812 *Qty: 2 HYPERBLOCK $160.16
Location: 16 Prev | Next Part: 144712 *Qty: 2 CUP $153.78
Location: 17 Prev | Next Part: 13543324 *Qty: 8 STUD $3.61
Location: 18 Prev | Next Part: 147985 *Qty: 8 NUT $0.90
Location: 19 Prev | Next Part: 10519624 *Qty: 8 WASHER Unavailable
Location: 20 Prev | Next Part: 137824 *Qty: 2 SUPPORT Unavailable
Location: 21 Prev | Next Part: 137826 *Qty: 2 NUT $3.78
Location: 22 Prev | Next Part: 152653 *Qty: 2 WASHER $159.82
Location: 23 Prev | Next Part: 156945 *Qty: 2 SPRING -Sold in pair $236.43
Location: 23 Prev | Next Part: 168399 *Qty: 2 SPRING -Sold in pair -As an alternatives Unavailable
Location: 24 Prev | Next Part: 156978 *Qty: 2 UPPER SPACER $48.75
Location: 25 Prev | Next Part: 113581 *Qty: 2 LOWER SPACER $25.09
Location: 26 Prev | Next Part: 153286 *Qty: 4 RUBBER $5.00
Location: 27 Prev | Next Part: 158732 *Qty: 2 ACTUATOR ON THE SHOCK ABSORBER Unavailable
Location: 28 Prev | Next Part: 153495 *Qty: 2 SPACER WASHER mm.3.00 Unavailable
Location: 28 Prev | Next Part: 153496 *Qty: 0 SPACER WASHER mm.2.90 -As an alternative of 153495 Unavailable
Location: 28 Prev | Next Part: 153497 *Qty: 0 SPACER WASHER mm.3.10 -As an alternative of 153495 Unavailable
Location: 29 Prev | Next Part: 155146 *Qty: 2 PIN -Valid till Ass. Nr. 22109 $50.85
Location: 29 Prev | Next Part: 159309 *Qty: 2 PIN -Valid from Ass. Nr. 22110 Unavailable
Location: 30 Prev | Next Part: 148020 *Qty: 2 NUT $4.93
Location: 31 Prev | Next Part: 144061 *Qty: 2 REAR BRAKE DISC $394.78
Location: 32 Prev | Next Part: 104370 *Qty: 4 SCREW -Not as spare part replaced by 16043424 $0.90
Location: 32 Prev | Next Part: 16043424 *Qty: 4 SCREW -Replace the 104370 $0.90
Location: 33 Prev | Next Part: 127496 *Qty: 4 WASHER $0.90
Location: 34 Prev | Next Part: 11500124 *Qty: 2 STUD Unavailable
Location: 35 Prev | Next Part: 154618 *Qty: 2 SUPPORT $3.84
Location: 36 Prev | Next Part: 11500124 *Qty: 2 STUD Unavailable
Location: 37 Prev | Next Part: 102741 *Qty: 2 NUT $0.90
Location: 38 Prev | Next Part: 10519424 *Qty: 2 WASHER Unavailable
Location: 39 Prev | Next Part: 12574525 *Qty: 4 NUT Unavailable
Location: 40 Prev | Next Part: 12601474 *Qty: 4 WASHER Unavailable
Location: 41 Prev | Next Part: 13517334 *Qty: 2 STUD -Valid till Ass. Nr. 22109 $17.04
Location: 42 Prev | Next Part: 160461 *Qty: 2 WASHER $1.14
Location: 43 Prev | Next Part: 155086 *Qty: 4 SPACER $86.00
Location: 44 Prev | Next Part: 141860 *Qty: 4 RING NUT $65.00
Location: 45 Prev | Next Part: 12601574 *Qty: 2 WASHER -Valid from Ass. Nr. 22110 $0.90
Location: 46 Prev | Next Part: SAG456/MONT *Qty: 2 ACTUATOR REPAIR GEAR AND PIN $51.00

* Quantity shown indicates the number of pieces used in the diagram.
