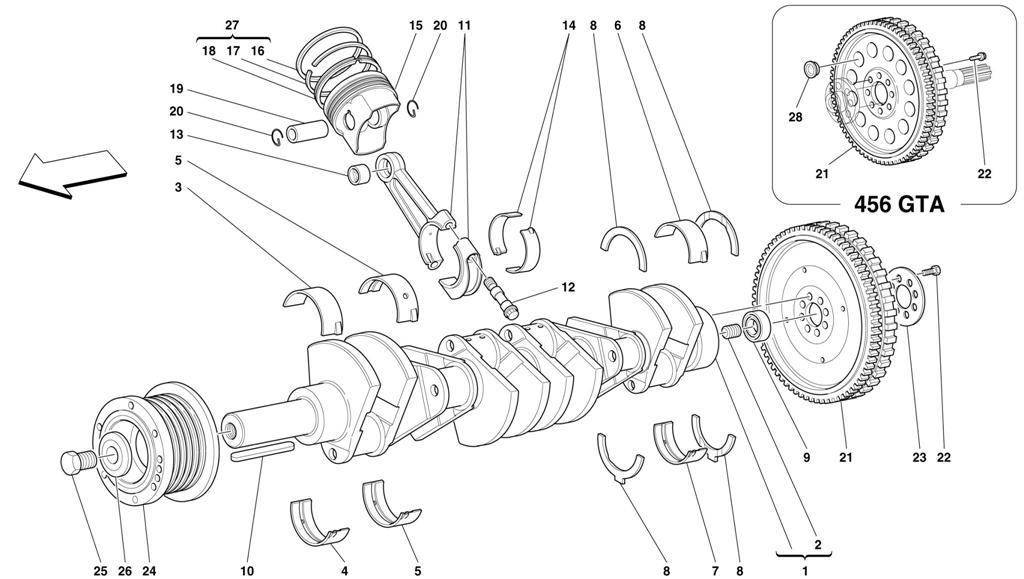

DRIVING SHAFT - CONNECTING RODS AND PISTONS

Go to Split View

DRIVING SHAFT - CONNECTING RODS AND PISTONS

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: 153213 *Qty: 1 HALF BEARING SET -NOMINAL- -Valid for MOTRONIC 2.7 Unavailable
Location: - Prev | Next Part: 153214 *Qty: 1 HALF BEARING SET -1st UNDERSIZE mm. 0,254 -Valid for MOTRONIC 2.7 $640.85
Location: - Prev | Next Part: 153215 *Qty: 1 HALF BEARING SET -2nd UNDERSIZE mm. 0,508 -Valid for MOTRONIC 2.7 $300.17
Location: - Prev | Next Part: 173484 *Qty: 1 HALF BEARING SET -NOMINAL- -Valid for MOTRONIC 5.2 $1,275.49
Location: - Prev | Next Part: 173485 *Qty: 1 HALF BEARING SET -1st UNDERSIZE mm. 0,254 -Valid for MOTRONIC 5.2 $1,880.42
Location: - Prev | Next Part: 173486 *Qty: 1 HALF BEARING SET -2nd UNDERSIZE mm. 0,508 -Valid for MOTRONIC 5.2 $1,880.42
Location: 1 Prev | Next Part: 140501 *Qty: 1 CRANKSHAFT $3,290.37
Location: 2 Prev | Next Part: 163528 *Qty: 1 THREADED PLUG $4.60
Location: 8 Prev | Next Part: 164113 *Qty: 0 UPPER SHIM 2nd OVERSIZE mm 0,254 -Valid for MOTRONIC 5.2 -With the complete series 173486 Unavailable
Location: 8 Prev | Next Part: 100146 *Qty: 2 SHIM -Valid for MOTRONIC 2.7 -With the complete series 153213 $32.61
Location: 8 Prev | Next Part: 100147 *Qty: 0 SHIM 2nd OVERSIZE mm 0.250 -Valid for MOTRONIC 2.7 -With the complete series 153215 $15.86
Location: 8 Prev | Next Part: 113984 *Qty: 0 SHIM 1st OVERSIZE mm 0.127 -Valid for MOTRONIC 2.7 -With the complete series 153214 $15.01
Location: 8 Prev | Next Part: 164108 *Qty: 2 LOWER SHIM -Valid for MOTRONIC 5.2 -With the complete series 173484 $128.88
Location: 8 Prev | Next Part: 164109 *Qty: 0 LOWER SHIM 1st OVERSIZE mm 0.127 -Valid for MOTRONIC 5.2 -With the complete series 173485 Unavailable
Location: 8 Prev | Next Part: 164110 *Qty: 0 LOWER SHIM 2nd OVERSIZE mm 0,254 -Valid for MOTRONIC 5.2 -With the complete series 173486 Unavailable
Location: 8 Prev | Next Part: 164111 *Qty: 2 UPPER SHIM -Valid for MOTRONIC 5.2 -With the complete series 173484 $128.88
Location: 8 Prev | Next Part: 164112 *Qty: 0 UPPER SHIM 1st OVERSIZE mm 0.127 -Valid for MOTRONIC 5.2 -With the complete series 173485 Unavailable
Location: 9 Prev | Next Part: 103877 *Qty: 1 BEARING FOR SHAFT -Not for 456 GTA $29.75
Location: 10 Prev | Next Part: 144876 *Qty: 1 KEY $5.30
Location: 11 Prev | Next Part: 155613 *Qty: 12 COMPLETE CONNECTING ROD AND HAT $514.45
Location: 12 Prev | Next Part: 150966 *Qty: 24 CONNECTING ROD $14.33
Location: 13 Prev | Next Part: 170047 *Qty: 12 BUSHING $48.59
Location: 14 Prev | Next Part: 106183 *Qty: 24 CONNECTING ROD HALF $21.52
Location: 14 Prev | Next Part: 100151 *Qty: 0 CONNECTING ROD HALF BEARING 1st UNDERSIZE mm 0.254 $71.85
Location: 14 Prev | Next Part: 100152 *Qty: 0 CONNECTING ROD HALF BEARING 2nd UNDERSIZE mm 0.508 $101.67
Location: 15 Prev | Next Part: 168173 *Qty: 12 PISTON WITH RINGS -Valid for MOTRONIC 5.2 $412.33
Location: 15 Prev | Next Part: 156166 *Qty: 12 PISTON WITH RINGS -Valid for MOTRONIC 2.7 -Valid till engine Nr. 39699 -For USA till engine Nr. 3 $1,018.01
Location: 15 Prev | Next Part: 163812 *Qty: 12 PISTON WITH RINGS -Valid for MOTRONIC 2.7 -Valid from engine Nr. 39700 -For USA from engine Nr. 3 $1,018.01
Location: 19 Prev | Next Part: 154717 *Qty: 12 PIN $39.00
Location: 20 Prev | Next Part: 152993 *Qty: 24 STOP RING $5.16
Location: 21 Prev | Next Part: 170774 *Qty: 1 ENGINE FLYWHEEL -Valid for 456 GTA $1,132.36
Location: 21 Prev | Next Part: 193051 *Qty: 1 ENGINE FLYWHEEL -Not for 456 GTA -Replace the 151258 $1,334.33
Location: 22 Prev | Next Part: 155750 *Qty: 8 SCREW -Valid for 456 GTA $21.51
Location: 22 Prev | Next Part: 103875 *Qty: 8 SCREW -Not for 456 GTA Superseded
Location: 23 Prev | Next Part: 103876 *Qty: 1 WASHER -Not for 456 GTA $11.18
Location: 24 Prev | Next Part: 175690 *Qty: 1 TORSION DAMPER -Valid for 456 GTA Unavailable
Location: 24 Prev | Next Part: 168565 *Qty: 1 TORSION DAMPER -Not for 456 GTA -Valid after stock exhaustion of 155410 Unavailable
Location: 25 Prev | Next Part: 140925 *Qty: 1 SCREW Unavailable
Location: 26 Prev | Next Part: 140922 *Qty: 1 WASHER Unavailable
Location: 27 Prev | Next Part: 159987 *Qty: 12 PISTONS RINGS SET -Valid till engine Nr. 39699, for USA till engine Nr. 38753, for CH till engine $248.90
Location: 27 Prev | Next Part: 173535 *Qty: 12 PISTONS RINGS SET -Valid from engine Nr. 39700, for USA from engine Nr. 38754, for CH from engine $312.61
Location: 28 Prev | Next Part: 111540 *Qty: 6 PLUG -Valid for 456 GTA Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
