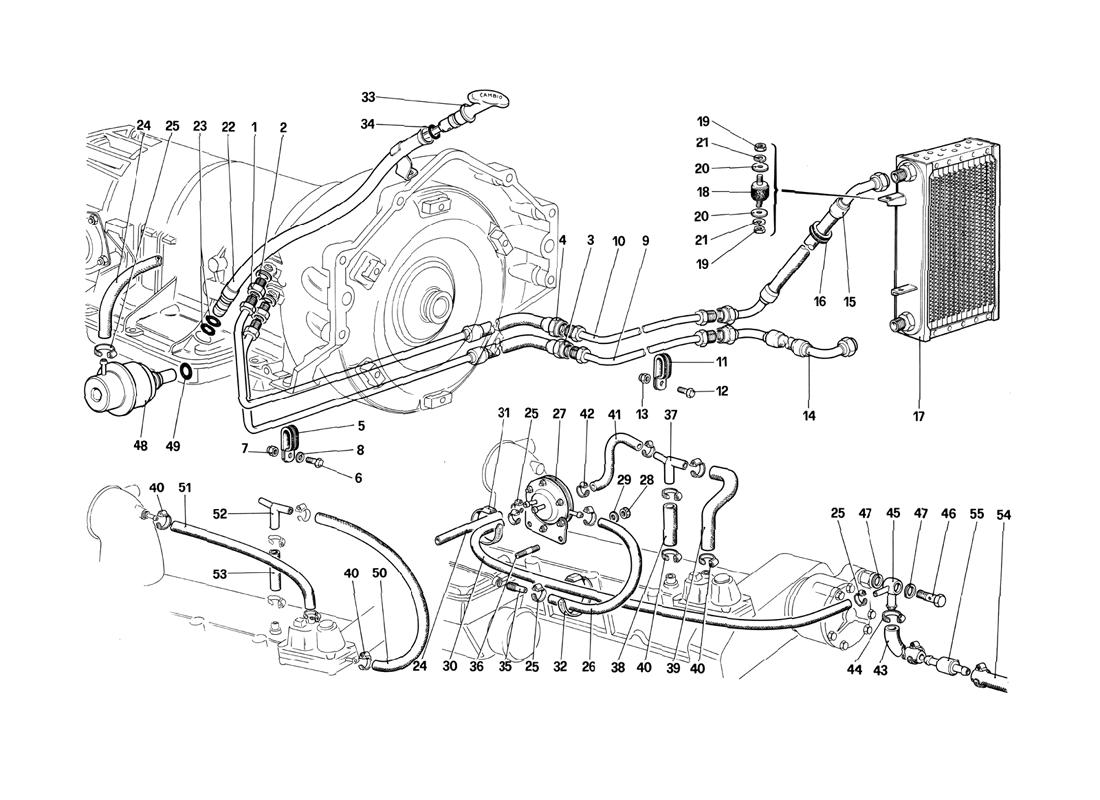

VACUUM AMPLIFYING VALVE AND OIL CIRCUIT - 412 A.

Go to Split View

VACUUM AMPLIFYING VALVE AND OIL CIRCUIT - 412 A.

in cart
Go to Split View
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 127421 *Qty: 2 Union $26.88
Location: 2 Prev | Next Part: 109444 *Qty: 2 Gasket $1.07
Location: 3 Prev | Next Part: 127418 *Qty: 1 Oil line to oil cooler $229.75
Location: 4 Prev | Next Part: 127419 *Qty: 1 Oil return line from oil cooler $229.75
Location: 5 Prev | Next Part: 126672 *Qty: 1 Clamp Unavailable
Location: 6 Prev | Next Part: 10902221 *Qty: 1 Bolt Unavailable
Location: 7 Prev | Next Part: 12574211 *Qty: 1 Nut Superseded
Location: 8 Prev | Next Part: 12643701 *Qty: 1 Washer Superseded
Location: 9 Prev | Next Part: 126589 *Qty: 1 Intermediate delivery pipe $108.91
Location: 10 Prev | Next Part: 126592 *Qty: 1 Intermediate return pipe $108.91
Location: 11 Prev | Next Part: 126672 *Qty: 2 Clamp Unavailable
Location: 11 Prev | Next Part: 10441290 *Qty: 4 Clamp $0.90
Location: 12 Prev | Next Part: 10902221 *Qty: 1 Bolt Unavailable
Location: 13 Prev | Next Part: 12574211 *Qty: 4 Nut Superseded
Location: 14 Prev | Next Part: 126590 *Qty: 1 Delivery pipe $181.88
Location: 15 Prev | Next Part: 126591 *Qty: 1 Return pipe $172.95
Location: 16 Prev | Next Part: 10396880 *Qty: 2 Fair -lead Unavailable
Location: 17 Prev | Next Part: 126297 *Qty: 1 Oil radiator $353.62
Location: 18 Prev | Next Part: 102947 *Qty: 3 Anti-vibration rubber $15.94
Location: 19 Prev | Next Part: 15006211 *Qty: 6 Nut Unavailable
Location: 20 Prev | Next Part: 12643701 *Qty: 6 Washer Superseded
Location: 21 Prev | Next Part: 106850 *Qty: 6 Washer Superseded
Location: 22 Prev | Next Part: 127634 *Qty: 1 Hose for level rod $143.49
Location: 23 Prev | Next Part: 109478 *Qty: 2 Sealing ring $5.45
Location: 24 Prev | Next Part: 111057 *Qty: 1 Pipe from valve to modulator $47.92
Location: 25 Prev | Next Part: 12179090 *Qty: 6 Clamp Superseded
Location: 26 Prev | Next Part: 115603 *Qty: 1 Pipe from valve to support $4.68
Location: 27 Prev | Next Part: 115565 *Qty: 1 Amplifying valve for vacuum $580.77
Location: 28 Prev | Next Part: 15896211 *Qty: 2 Nut Superseded
Location: 29 Prev | Next Part: 106850 *Qty: 2 Washer Superseded
Location: 30 Prev | Next Part: 111463 *Qty: 1 Pipe from valve to vacuum pump $222.62
Location: 31 Prev | Next Part: 103755 *Qty: 3 Clamp $0.90
Location: 32 Prev | Next Part: 105549 *Qty: 6 Clamp $1.90
Location: 33 Prev | Next Part: 111100 *Qty: 1 Oil level rod $97.01
Location: 34 Prev | Next Part: 100317 *Qty: 1 Sealing ring $1.28
Location: 35 Prev | Next Part: 104074 *Qty: 1 Union $39.50
Location: 36 Prev | Next Part: 11500021 *Qty: 2 Stud Superseded
Location: 37 Prev | Next Part: 114894 *Qty: 1 3 way fitting
With warm-up regulator no. 113973
$45.79
Location: 38 Prev | Next Part: 116760 *Qty: 1 Pipe
With warm-up regulator no. 113974
$2.12
Location: 39 Prev | Next Part: 116762 *Qty: 1 Pipe from 3 way to warm-up regulator
With warm-up regulator no. 113975
$26.46
Location: 40 Prev | Next Part: 12179190 *Qty: 4 Clamp Superseded
Location: 41 Prev | Next Part: 115603 *Qty: 1 Pipe from 3 way to valve $4.68
Location: 42 Prev | Next Part: 12179190 *Qty: 2 Clamp Superseded
Location: 43 Prev | Next Part: 111023 *Qty: 1 Pipe from vacuum pump to check valve $87.22
Location: 44 Prev | Next Part: 12179590 *Qty: 2 Clamp Superseded
Location: 45 Prev | Next Part: 111022 *Qty: 1 Union $25.69
Location: 46 Prev | Next Part: 100498 *Qty: 1 Union $14.25
Location: 47 Prev | Next Part: 10257460 *Qty: 2 Gasket $0.90
Location: 48 Prev | Next Part: 113204 *Qty: 1 Modulator $66.24
Location: 49 Prev | Next Part: 95860063 *Qty: 1 Sealing ring $1.85
Location: 50 Prev | Next Part: 121936 *Qty: 1 Pipe
With warm-up regulator no. 119825 and for CH
$13.55
Location: 51 Prev | Next Part: 121937 *Qty: 1 Pipe $4.04
Location: 52 Prev | Next Part: 121990 *Qty: 1 3 way $28.06
Location: 53 Prev | Next Part: 122005 *Qty: 1 Pipe $2.83
Location: 54 Prev | Next Part: 110747 *Qty: 1 Pipe from valve to vacuum servo $44.66
Location: 55 Prev | Next Part: 101538 *Qty: 1 Check valve Superseded

* Quantity shown indicates the number of pieces used in the diagram.
