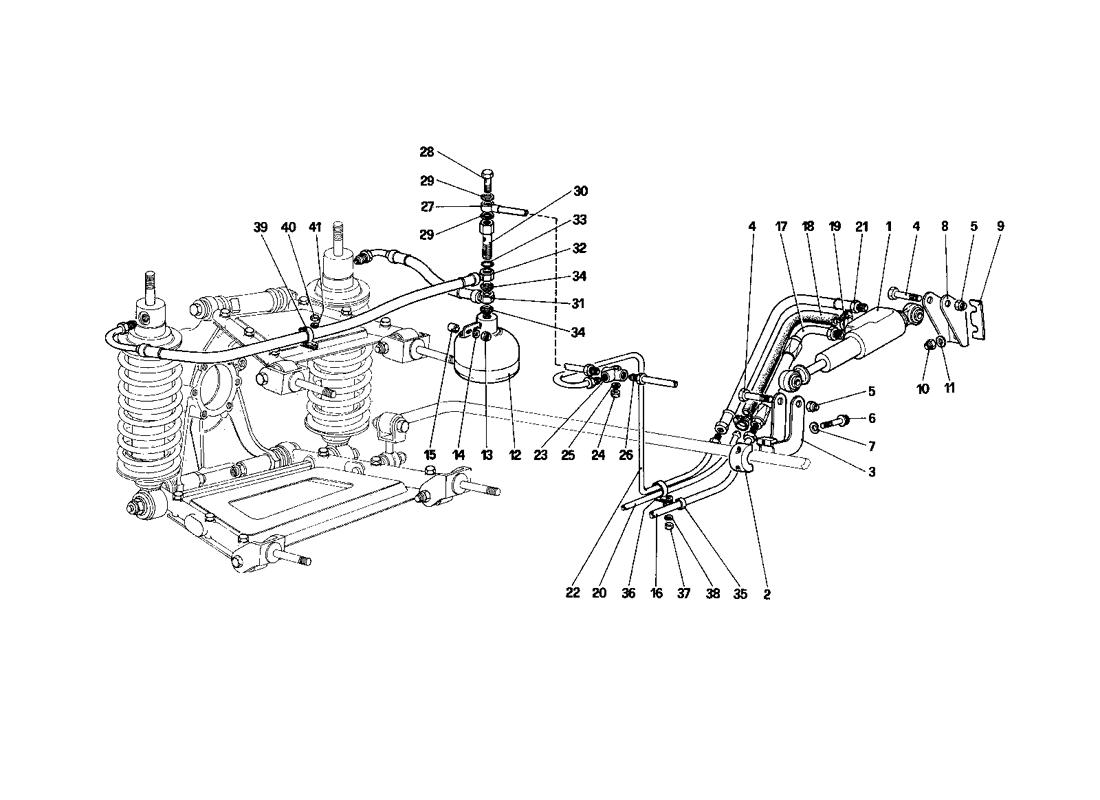

REAR SUSPENSION - SELF LEVELING VALVE AND OIL LINES

REAR SUSPENSION - SELF LEVELING VALVE AND OIL LINES

Location Part # Quantity* Description Price Add To Cart
1 117737 1 Valvola autolivellante Unavailable
2 117741 1 Cavallotto fissaggio leva alia barra $39.52
3 117744 1 Leva collegamento barra alia valvola autolivellante $99.71
4 16044121 2 Vite Unavailable
5 16104411 2 Dado $0.90
6 10902821 2 Vite Superseded
7 106850 2 Rondella elastica Superseded
8 117745 1 Staffa fissaggio valvola autolivellante $13.68
9 118149 1 Idem spessore 2 mm.
Di eventuale montaggio
$9.38
9 118150 1 Idem spessore 3 mm.
Di eventuale montaggio
$9.38
9 118148 1 Spessore di rasamento spessore 1 mm.
Di eventuale montaggio
$9.38
10 12574211 2 Dado Superseded
11 12643701 2 Rondella Superseded
12 117736 2 Accumulator
Dopo esaurimento vale n. 119922
Unavailable
13 16104111 4 Dado Superseded
14 10519601 4 Rondella
Di eventuale montaggio - Con accumulatoren. 119922
Superseded
15 13605711 4 Distanziale
Con accumulatore n. 119922
$1.12
16 117783 1 Tubo collegamento pompa e valvola autolivellante $320.60
17 117926 1 Tubo mandata olio dalla pompa alla valvola autolivellante $522.75
18 117776 1 Tubo $28.44
19 12579590 2 Fascetta Unavailable
20 118852 1 Tubo intermedio $367.94
21 117740 1 Tubo collegamento valvola al 3 vie $198.31
22 105855 1 Tubo collegamento tubo al 3 vie Unavailable
23 101394 1 Tre vie Unavailable
24 15896211 1 Dado Superseded
25 10516471 1 Rondella Superseded
26 117789 1 Tubo dal 3 vie all''accumulatore Sx. $70.38
27 117819 1 Tubo dal 3 vie all''accumulatore Dx. $54.00
28 113664 1 Bocchettone $89.58
29 14330260 4 Rondella $0.90
30 117735 2 Raccordo $178.44
31 117739 2 Tubo dall''accumulatore all''ammortizzatore posteriore $756.30
32 117738 2 Tubo dall''accumulatore all''ammortizzatore anteriore Unavailable
33 118018 2 Anello di teriuta $3.17
34 118024 4 Anello ditenuta $4.24
35 10441290 1 Fascetta Unavailable
36 10441490 1 Fascetta Unavailable
37 12575411 1 Dado Superseded
38 12639701 1 Rondella Unavailable
39 10441490 2 Fascetta Unavailable
40 12575411 2 Dado Superseded
41 10441490 2 Rondella Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
