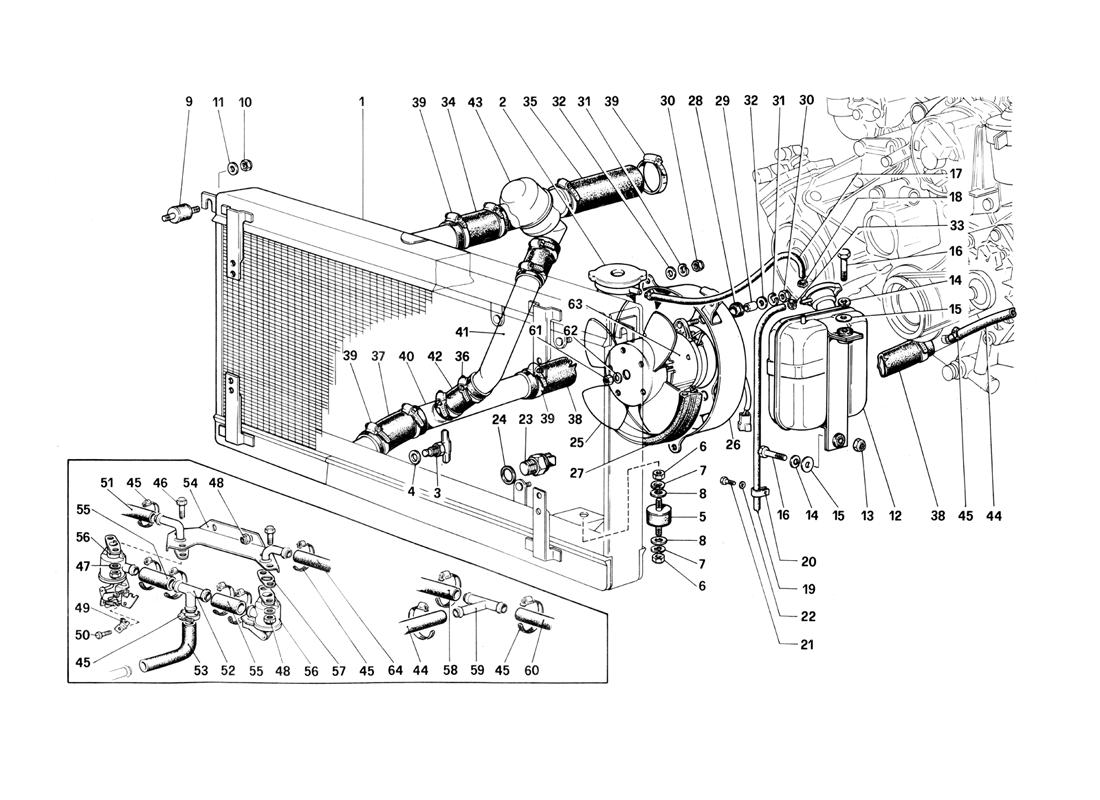

COOLING SYSTEM

COOLING SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 114707 1 Radiatore acqua $4,114.79
2 101484 1 Tappo per radiatore $37.86
3 101488 1 Rubinetto scarico acqua $212.72
4 101496 1 Guarnizione Unavailable
5 101495 2 Supporto antivibrante inferiore $20.67
6 16100811 4 Dado Superseded
7 106852 4 Rondella elastica Superseded
8 10519601 2 Rondella Superseded
9 102947 2 Supporto antivibrante superiore $17.42
10 12574211 2 Dado Superseded
11 12643701 2 Rondella Superseded
12 114708 1 Nourice per radiatore $955.76
13 16100811 1 Dado Superseded
14 106852 2 Rondella Superseded
15 12647001 2 Rondella Superseded
16 16043821 2 Vite Superseded
17 114719 1 Tubo dal radiatore alia nourice $23.16
18 12179490 2 Fascetta Superseded
19 120132 1 Tubo sf iato $4.36
20 10418300 1 Staffa fissaggio tubo sfiato $0.90
21 110105 1 Vite Unavailable
22 12642801 1 Rondella Unavailable
23 101507 1 Termocontatto Superseded
24 101508 1 Guarnizione $1.40
25 120485 1 Ventola
Con motorino 120484
$88.39
25 114711 1 Ventola
Con motorino 114710
Superseded
26 114712 1 Convogliatore $409.27
27 114713 1 Guarnizione $13.38
28 103549 3 Gommino antivibrante $1.50
29 103550 3 Dirtanziale $6.82
30 15896211 6 Dado Superseded
31 106850 6 Rondella elastica Superseded
32 12643701 6 Rondella Superseded
33 13423178 1 Fascetta Unavailable
34 106394 1 Manicotto dal radiatore al termostato Superseded
35 106392 1 Manicotto dal motore al termostato $223.00
36 101292 4 Fascetta $10.01
37 102957 1 Manicotto dal radiatore al 3 vie Superseded
38 105302 1 Manicotto dal 3 vie alia pompa Superseded
39 102958 8 Fascetta Superseded
40 114724 1 Trevie $143.20
41 119695 1 Tubo collegamento miscelatore 3 vie $386.35
41 114725 1 Tubo collegamento miscelatore 3 vie Unavailable
42 114726 2 Manicotto $38.94
43 106393 1 Termostato Unavailable
44 111599 1 Tubo dal 3 vie al motore Superseded
45 12179590 16 Fascetta Superseded
46 10902321 4 Vite Superseded
47 12639701 4 Rondella tranciata Unavailable
48 12574211 6 Dado autobloccante Superseded
49 60929000 2 Piastrina fissaggio guaina cavo $1.14
50 15680701 2 Vite autofilettante Unavailable
51 111598 1 Tubo da rubinetto a riscaldatore Dx. Superseded
52 118855 1 Raccordo a 3 vie $38.10
53 110758 1 Tubo dal motore al 3 vie Unavailable
54 118858 1 Staff a sostegno rubinetti Unavailable
55 118856 2 Manicotto dal 3 vie ai rubinetti $31.00
56 118857 2 Rubinotto $514.28
57 104291 2 Guarnizione rubinetto $6.48
58 107391 1 Tubo dal riscaldatore Dx. al 3 vie Superseded
59 100881 1 Trevie Unavailable
60 111598 1 Tubo dal riscaldatore Sx. al 3 vie Superseded
61 16100811 1 Dado
Con motorino 114710
Superseded
62 10615679 1 Rondella
Con motorino 114710
Unavailable
63 114710 1 Motorino elettroventilatore
Fino esaurimerrto
Superseded
63 120484 1 Motorino elettroventilatore
Vale dopo asaurimanto 114710
$299.00
64 107964 1 Tubo da rubinetto a riscaldatore Sx. Superseded

* Quantity shown indicates the number of pieces used in the diagram.
