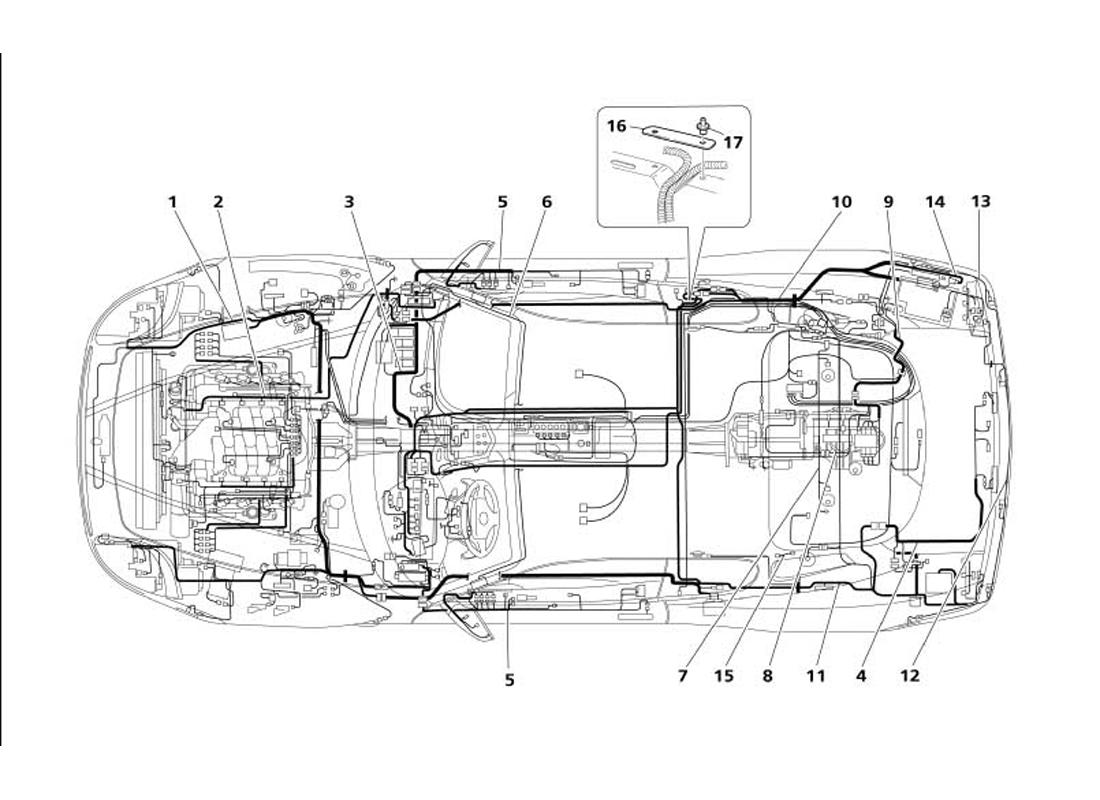

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 200488 *Qty: 1 ENGINE COMPARTMENT CABLES
Not for USA, CDN and GD
Call
Location: 1 Prev | Next Part: 200494 *Qty: 1 ENGINE COMPARTMENT CABLES
Valid for USA and CDN
$959.89
Location: 1 Prev | Next Part: 200496 *Qty: 1 ENGINE COMPARTMENT CABLES
Valid for GD
Call
Location: 2 Prev | Next Part: 209653 *Qty: 1 IGNITION DEVICE CABLES
Valid for USA and CDN
$1,138.40
Location: 2 Prev | Next Part: 209652 *Qty: 1 IGNITION DEVICE CABLES
Valid for GD
Call
Location: 2 Prev | Next Part: 209651 *Qty: 1 INJECTION DEVICE CABLES
Not for USA, CDN and GD
Call
Location: 3 Prev | Next Part: 208025 *Qty: 1 DASHBOARD CABLE
Valid for GD
Call
Location: 3 Prev | Next Part: 208023 *Qty: 1 DASHBOARD CABLE
Not for GD
$2,192.25
Location: 4 Prev | Next Part: 200492 *Qty: 1 TRUNK CABLE $78.29
Location: 5 Prev | Next Part: 200490 *Qty: 2 DOOR CABLE $369.55
Location: 6 Prev | Next Part: 200491 *Qty: 1 ROOF LIGHT CABLE
Not for GD
Call
Location: 6 Prev | Next Part: 200498 *Qty: 1 ROOF LIGHT CABLE
Valid for GD
Call
Location: 7 Prev | Next Part: 200500 *Qty: 1 TANK CABLE
Valid for USA and CDN
Call
Location: 7 Prev | Next Part: 200499 *Qty: 1 TANK CABLE
Not for USA and CDN
Call
Location: 8 Prev | Next Part: 184916 *Qty: 1 F1 GEAR CABLE ON GEARBOX $482.29
Location: 9 Prev | Next Part: 210287 *Qty: 1 F1 GEAR CABLE ON BODYWORK Call
Location: 10 Prev | Next Part: 208026 *Qty: 1 R.H. LONGITUDINAL CABLE
Not for GD
$1,063.24
Location: 10 Prev | Next Part: 208027 *Qty: 1 R.H. LONGITUDINAL CABLE
Valid for GD
Call
Location: 11 Prev | Next Part: 200507 *Qty: 1 L.H. LONGITUDINAL CABLE
Optional - Version sport
$233.32
Location: 12 Prev | Next Part: 200505 *Qty: 1 PARKING SENSOR CABLE
Optional - Parking sensor - Not for USA and CDN
Call
Location: 12 Prev | Next Part: 200509 *Qty: 1 SIDE MARKERS AND PARKING SENSOR CABLE
Optional - Parking sensor - Valid for USA and CDN
$481.40
Location: 13 Prev | Next Part: 200510 *Qty: 1 SIDE MARKER CABLE
Valid for USA and CDN
$596.75
Location: 14 Prev | Next Part: 200647 *Qty: 1 AMPLIFIER CABLES
Optional - HI FI system
$100.22
Location: 15 Prev | Next Part: 200493 *Qty: 1 REAR-WINDOW GROUND CABLE Call
Location: 16 Prev | Next Part: 329232405 *Qty: 2 CABLES FIXING BRACKET $4.09
Location: 17 Prev | Next Part: 312025509 *Qty: 4 BUTTON Call

* Quantity shown indicates the number of pieces used in the diagram.
