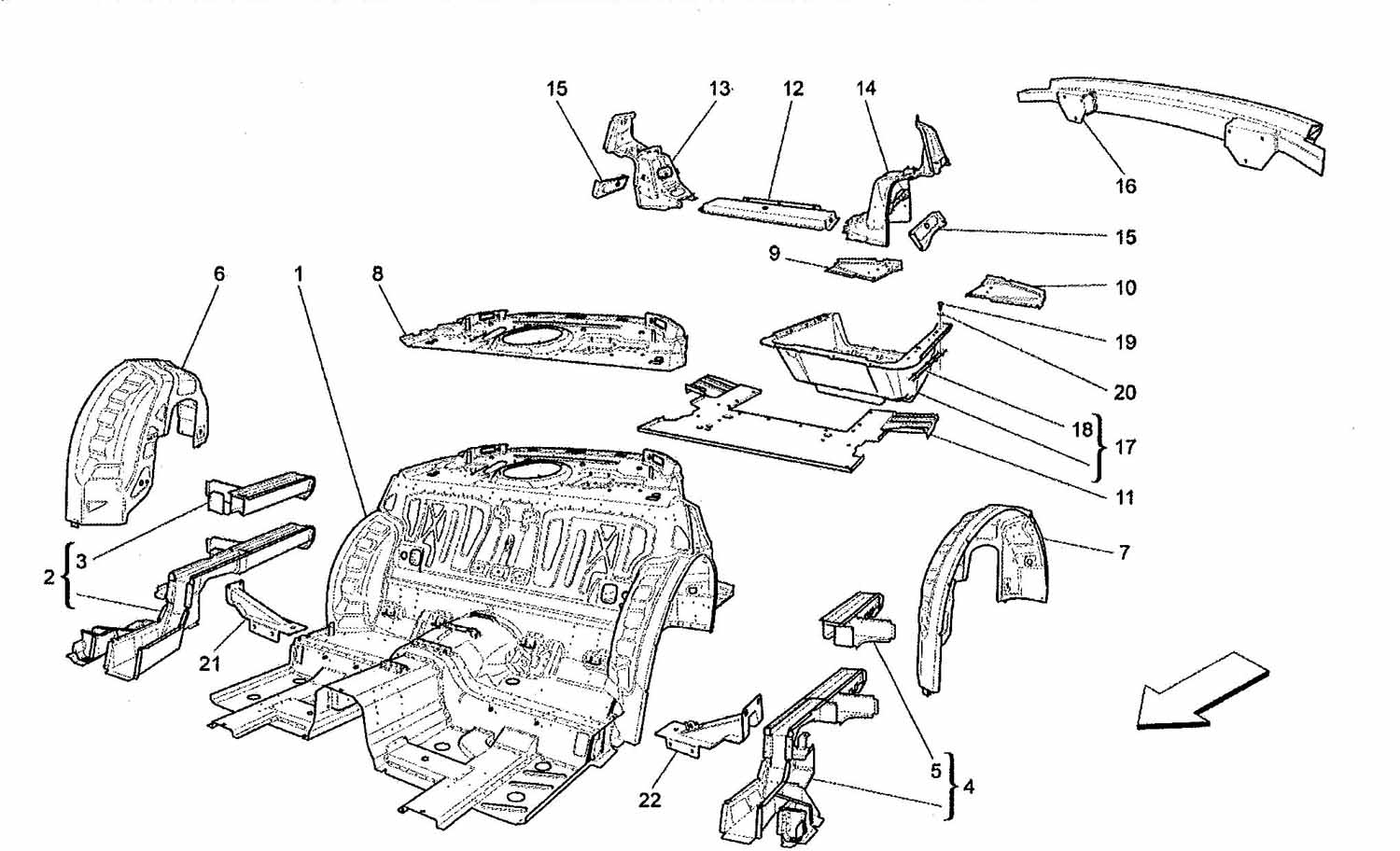

REAR STRUCTURAL FRAME

Go to Split View

REAR STRUCTURAL FRAME

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 980145058 *Qty: 1 Complete Rear Frame Call
Location: 2 Prev | Next Part: 980145046 *Qty: 1 Complete R.H. Longitudinal Member Call
Location: 3 Prev | Next Part: 980145048 *Qty: 1 R.H. Rear Sprag Call
Location: 4 Prev | Next Part: 980145047 *Qty: 1 Complete L.H. Longitudinal Member Call
Location: 5 Prev | Next Part: 980145049 *Qty: 1 L.H. Rear Sprag $2,943.88
Location: 6 Prev | Next Part: 980145050 *Qty: 1 R.H. Rear Wheelhouse Call
Location: 7 Prev | Next Part: 980145051 *Qty: 1 L.H. Rear Wheelhouse $1,375.04
Location: 8 Prev | Next Part: 980145052 *Qty: 1 Under Rear Window Panel Call
Location: 9 Prev | Next Part: 66829800 *Qty: 1 R.H. Rear Side Rear Floor Call
Location: 10 Prev | Next Part: 66829900 *Qty: 1 L.H. Rear Side Rear Floor Call
Location: 11 Prev | Next Part: 980145053 *Qty: 1 Front Side Rear Floor Call
Location: 12 Prev | Next Part: 67260800 *Qty: 1 Cross Member $162.85
Location: 13 Prev | Next Part: 980145054 *Qty: 1 R.H. Rear Reinforcement Call
Location: 14 Prev | Next Part: 980145055 *Qty: 1 L.H. Rear Reinforcement $479.16
Location: 15 Prev | Next Part: 67276600 *Qty: 2 Reinforcement Seal $256.81
Location: 16 Prev | Next Part: 80308900 *Qty: 1 Rear Bumper Cross Member $701.52
Location: 17 Prev | Next Part: 68267800 *Qty: 1 Complete Spare Wheel Step $241.15
Location: 18 Prev | Next Part: 68268000 *Qty: 1 Spare Wheel Step Gasket $10.62
Location: 19 Prev | Next Part: 13026124 *Qty: 18 Screw $3.59
Location: 20 Prev | Next Part: 14446521 *Qty: 18 Washer $0.90
Location: 21 Prev | Next Part: 69054900 *Qty: 1 R.H. Reinforcement Call
Location: 22 Prev | Next Part: 69112400 *Qty: 1 L.H. Reinforcement Call

* Quantity shown indicates the number of pieces used in the diagram.
