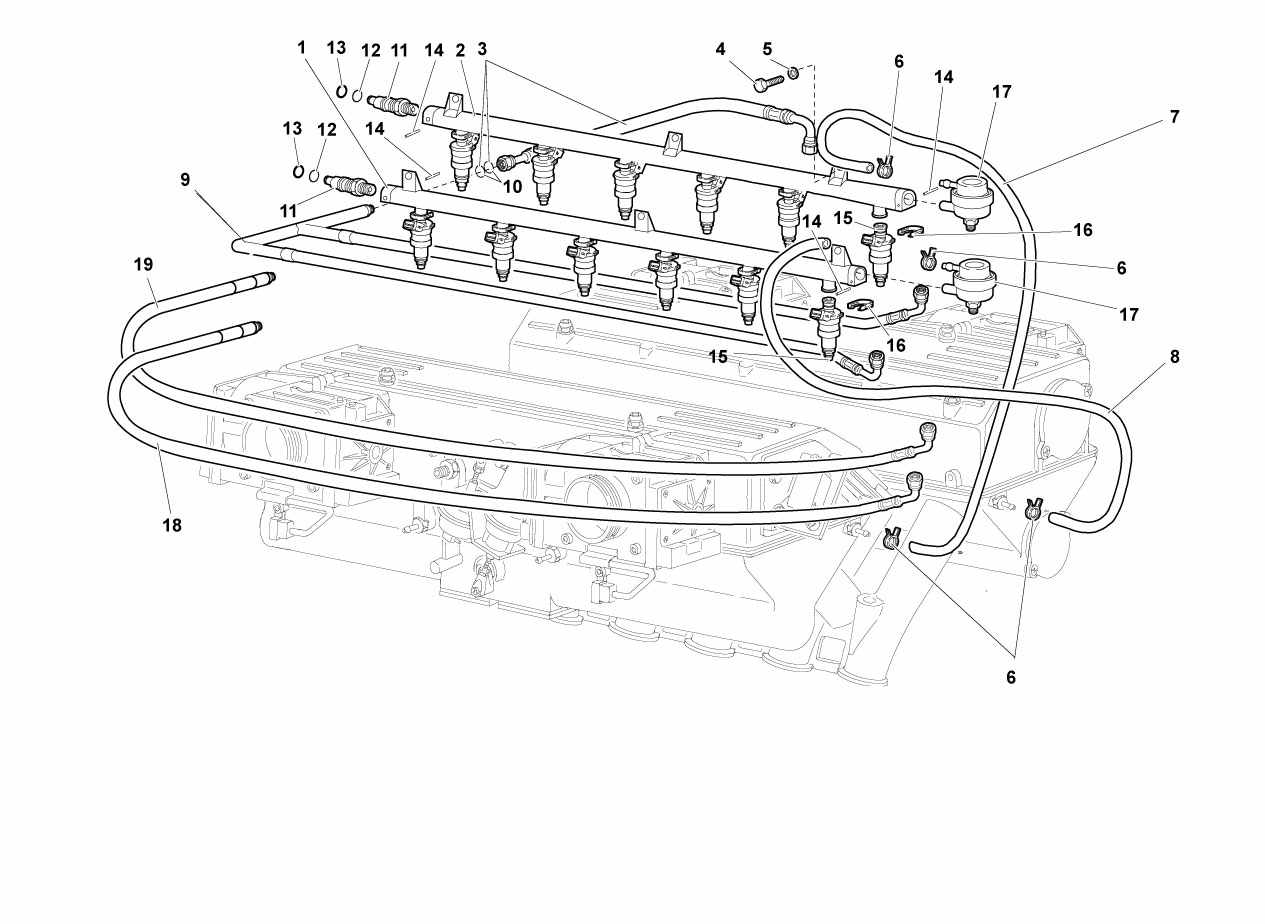

FUEL SYSTEM

Go to Split View

FUEL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7M133681A *Qty: 1 PIPE (INCLUDES 11 - 14 - 15 - 16 - 17) $2,427.24
Location: 2 Prev | Next Part: 7M133681 *Qty: 1 PIPE (INCLUDES 11 - 14 - 15 - 16 - 17) $2,427.24
Location: 3 Prev | Next Part: *Qty: 1 PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 4 Prev | Next Part: 8700644 *Qty: 3 SCREW $0.90
Location: 5 Prev | Next Part: WHT001197 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: N10279301 *Qty: 4 CLAMP $1.16
Location: 7 Prev | Next Part: 7M133264 *Qty: 1 PIPE $96.40
Location: 8 Prev | Next Part: 7M133264A *Qty: 1 PIPE $96.40
Location: 9 Prev | Next Part: *Qty: 1 PIPE (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 10 Prev | Next Part: 62013983 *Qty: 2 SEAL RING $5.79
Location: 11 Prev | Next Part: 7M133707 *Qty: 2 CONNECTOR $72.08
Location: 13 Prev | Next Part: 8600704 *Qty: 2 SEAL RING $1.65
Location: 14 Prev | Next Part: 8900401 *Qty: 4 PIN $0.90
Location: 15 Prev | Next Part: 7M906031 *Qty: 12 WE.IW031 430003 INJECTOR $967.17
Location: 16 Prev | Next Part: 7M133047 *Qty: 12 CLIP $8.68
Location: 17 Prev | Next Part: 7M133035 *Qty: 2 REGULATOR $667.26
Location: 18 Prev | Next Part: 410201219A *Qty: 1 PIPE 7-12 $235.20

* Quantity shown indicates the number of pieces used in the diagram.
