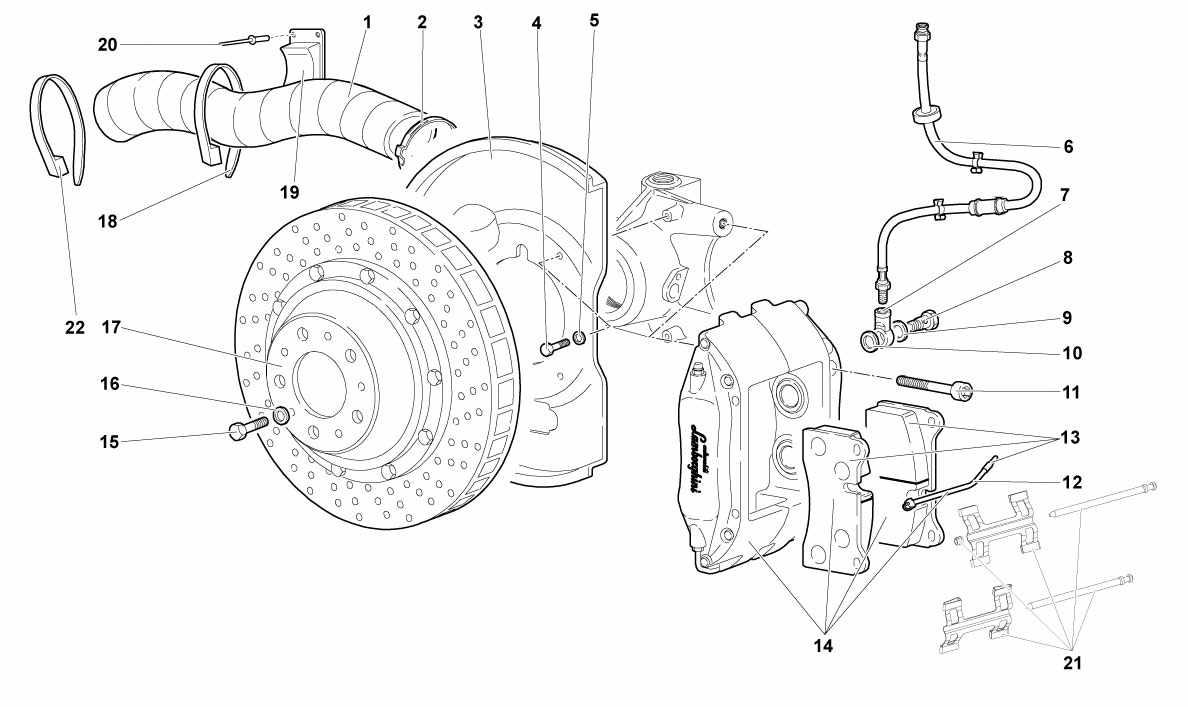

FRONT BRAKES

Go to Split View

FRONT BRAKES

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 410611359 *Qty: 2 PIPE $227.49
Location: 2 Prev | Next Part: 8836001 *Qty: 2 CLAMP $8.30
Location: 3 Prev | Next Part: 31017009 *Qty: 1 LH CONVEYOR $542.88
Location: 3 Prev | Next Part: 31017008 *Qty: 1 RH CONVEYOR $542.88
Location: 4 Prev | Next Part: N01020717 *Qty: 3 SCREW M5X12 $0.90
Location: 4 Prev | Next Part: 8100504 *Qty: 3 SCREW M5X12 $0.90
Location: 5 Prev | Next Part: 8410503 *Qty: 3 WASHER $0.90
Location: 6 Prev | Next Part: 410611775 *Qty: 2 HOSE $50.35
Location: 7 Prev | Next Part: *Qty: 0 CONNECTOR (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 8 Prev | Next Part: WHT000861 *Qty: 2 SCREW WITH HOLE $2.84
Location: 9 Prev | Next Part: WHT001191 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: WHT001191 *Qty: 2 WASHER $0.90
Location: 11 Prev | Next Part: WHT001330 *Qty: 4 SCREW $26.29
Location: 13 Prev | Next Part: 31016774 *Qty: 1 BRAKE PAD SET Call
Location: 14 Prev | Next Part: 410615105F *Qty: 1 BLACK LH FRONT BRAKE CALIPER $1,901.54
Location: 14 Prev | Next Part: 410615106F *Qty: 1 BLACK RH FRONT BRAKE CALIPER $1,901.54
Location: 14 Prev | Next Part: 410615105G *Qty: 1 GREY LH FRONT BRAKE CALIPER $1,901.54
Location: 14 Prev | Next Part: 410615106G *Qty: 1 GREY RH FRONT BRAKE CALIPER $1,901.54
Location: 14 Prev | Next Part: 410615105H *Qty: 1 YELLOW LH FRONT BRAKE CALIPER $1,901.54
Location: 14 Prev | Next Part: 410615106H *Qty: 1 YELLOW RH FRONT BRAKE CALIPER $1,901.54
Location: 15 Prev | Next Part: N10572401 *Qty: 3 SCREW $0.90
Location: 16 Prev | Next Part: WHT000771 *Qty: 3 WASHER $0.91
Location: 17 Prev | Next Part: 410615301 *Qty: 2 BRAKE DISK $1,691.32
Location: 18 Prev | Next Part: 410412177 *Qty: 2 CLAMP $3.24
Location: 19 Prev | Next Part: 410805889 *Qty: 1 LEFT SUPPORT $267.57
Location: 19 Prev | Next Part: 410805890 *Qty: 1 RIGHT SUPPORT $267.57
Location: 20 Prev | Next Part: 8953082 *Qty: 8 RIVET $0.90
Location: 21 Prev | Next Part: 400698135 *Qty: 2 JOURNAL AND CLIP $41.21
Location: 22 Prev | Next Part: 410616713 *Qty: 2 CLAMP $3.24

* Quantity shown indicates the number of pieces used in the diagram.
