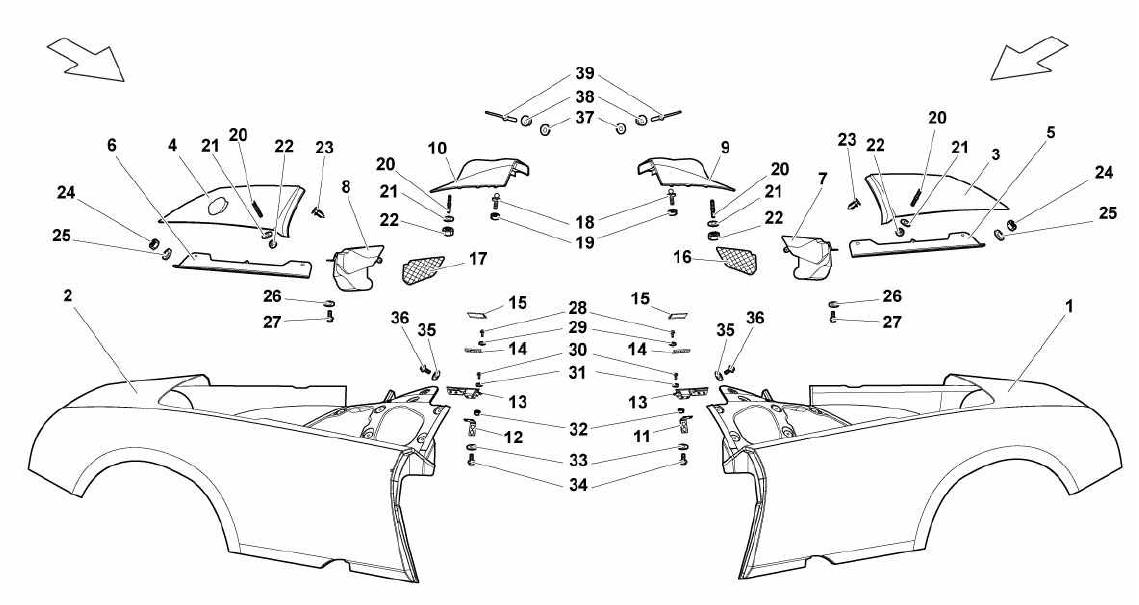

SIDE BODY ELEMENTS

Go to Split View

SIDE BODY ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 417821017B *Qty: 1 LEFT REAR FENDER ASSEMBLY $26,433.16
Location: 2 Prev | Next Part: 417821018B *Qty: 1 RIGHT REAR FENDER ASSEMBLY $26,433.16
Location: 3 Prev | Next Part: 417809921 *Qty: 1 FENDER LEFT COVER $11,172.34
Location: 4 Prev | Next Part: 417809922 *Qty: 1 FENDER RH COVER AND FUEL LID $11,172.34
Location: 5 Prev | Next Part: 417813919 *Qty: 1 CHANNEL $125.40
Location: 6 Prev | Next Part: 417813920 *Qty: 1 CHANNEL $125.40
Location: 7 Prev | Next Part: 417809963 *Qty: 1 LEFT ENGINE AIR INTAKE DUCT $1,704.62
Location: 8 Prev | Next Part: 417809964 *Qty: 1 RIGHT ENGINE AIR INTAKE DUCT $1,704.62
Location: 9 Prev | Next Part: 417813161 *Qty: 1 REAR LEFT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY $6,428.58
Location: 10 Prev | Next Part: 417813162 *Qty: 1 REAR RIGHT ENGINE COMPARTMENT UPHOLSTERY ASSEMBLY $6,428.58
Location: 11 Prev | Next Part: 417809165A *Qty: 1 BRACKET $19.74
Location: 12 Prev | Next Part: 417809166A *Qty: 1 BRACKET $19.74
Location: 13 Prev | Next Part: 417805968 *Qty: 1 CENTRAL ORNAMENT ON REAR SIDE OF SOFT-TOP $36.20
Location: 14 Prev | Next Part: 417809117 *Qty: 1 ORNAMENT FOR FENDER SLIDING FLAP $49.82
Location: 15 Prev | Next Part: 417809967 *Qty: 1 FENDER SLIDING FLAP $40.84
Location: 16 Prev | Next Part: 417853677 *Qty: 1 LEFT GRID $115.27
Location: 17 Prev | Next Part: 417853676 *Qty: 1 RIGHT GRID $115.27
Location: 18 Prev | Next Part: 418805416 *Qty: 2 SCREW $19.36
Location: 19 Prev | Next Part: N01100411 *Qty: 2 NUT $0.90
Location: 20 Prev | Next Part: WHT003228 *Qty: 14 STUD BOLT M5X14 $9.36
Location: 21 Prev | Next Part: N91109201 *Qty: 14 WASHER 5.30X20X1 $5.44
Location: 22 Prev | Next Part: WHT003112 *Qty: 14 NUT M5 $0.90
Location: 23 Prev | Next Part: 400867299 *Qty: 4 FASTENER LYS FUSION- YELLOW $0.90
Location: 24 Prev | Next Part: WHT003112 *Qty: 6 NUT M5 $0.90
Location: 25 Prev | Next Part: N10612001 *Qty: 6 WASHER 5.30X15X1 $0.90
Location: 26 Prev | Next Part: N01152427 *Qty: 4 WASHER $0.90
Location: 27 Prev | Next Part: WHT001190 *Qty: 4 SCREW M5X12 $1.60
Location: 29 Prev | Next Part: 8400401 *Qty: 4 WASHER 4.3X9X0.8 $0.90
Location: 32 Prev | Next Part: N90777702 *Qty: 4 CLIP $0.90
Location: 33 Prev | Next Part: N10612001 *Qty: 4 WASHER $0.90
Location: 34 Prev | Next Part: N10648502 *Qty: 4 SCREW M5X10 $1.01
Location: 35 Prev | Next Part: N90485901 *Qty: 4 WASHER 4.55 $0.90
Location: 36 Prev | Next Part: N90455205 *Qty: 4 SCREW M4X10 $0.90
Location: 37 Prev | Next Part: WHT000512 *Qty: 2 WASHER $1.03
Location: 38 Prev | Next Part: 417863999 *Qty: 2 SNAP BUTTON $0.93
Location: 39 Prev | Next Part: N91094501 *Qty: 2 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
