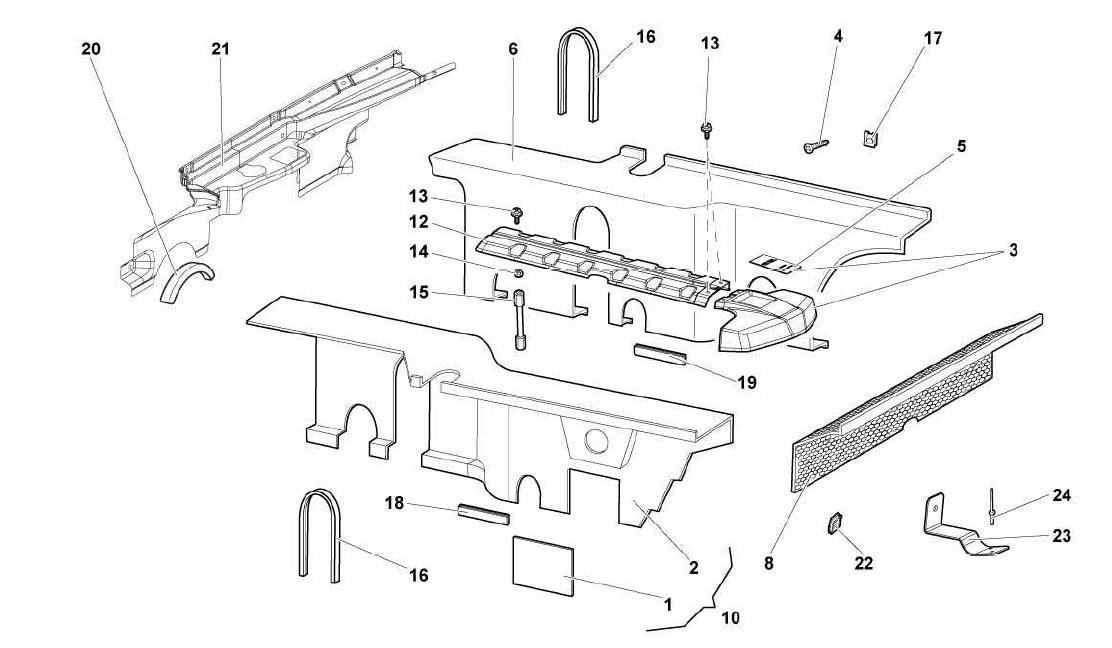

ENGINE COMPARTMENT PANELS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 417103704 *Qty: 1 ENGINE COMPARTMENT LOWER LEFT SIDE PAINTED PANEL $152.73
Location: 2 Prev | Next Part: *Qty: 0 PAINTED BULKHEAD ON LEFT SIDE IN ENGINE COMPARTMENT (CANNOT BE SOLD SEPARATELY - SEE REF. 10) Call
Location: 3 Prev | Next Part: 7M103926J *Qty: 1 FUEL PIPING COVER $2,714.10
Location: 4 Prev | Next Part: N0902661 *Qty: 20 SCREW $2.46
Location: 5 Prev | Next Part: 7M103115G *Qty: 1 FUEL PIPING COVER PLATE $48.32
Location: 6 Prev | Next Part: 417103730A *Qty: 1 PAINTED BULKHEAD ON RIGHT SIDE IN ENGINE COMPARTMENT $4,267.37
Location: 8 Prev | Next Part: 417864878A *Qty: 1 AUXILIARY COMPONENTS COVERING GRID $631.44
Location: 10 Prev | Next Part: 417103553 *Qty: 1 PAINTED BULKHEAD ON LEFT SIDE IN ENGINE COMPARTMENT SET $4,358.40
Location: 12 Prev | Next Part: 7M103927F *Qty: 1 FUEL PIPING COVER $2,239.14
Location: 13 Prev | Next Part: N90842903 *Qty: 6 SCREW $0.90
Location: 14 Prev | Next Part: 8400703 *Qty: 2 WASHER $0.90
Location: 15 Prev | Next Part: 7M103728B *Qty: 2 STUD $51.51
Location: 16 Prev | Next Part: 410103121 *Qty: 2 GASKET $70.21
Location: 17 Prev | Next Part: 8220402 *Qty: 10 CLIP $1.31
Location: 18 Prev | Next Part: 417103483 *Qty: 1 GASKET $7.66
Location: 19 Prev | Next Part: 417103484 *Qty: 1 GASKET $6.37
Location: 20 Prev | Next Part: 410103727 *Qty: 1 GASKET $39.20
Location: 21 Prev | Next Part: *Qty: 0 LOCK COVER (SEE TABLE 827.04.00 - 39) Call
Location: 22 Prev | Next Part: WHT003383 *Qty: 4 CLIP $12.00
Location: 23 Prev | Next Part: 410813988 *Qty: 4 BRACKET $6.91
Location: 24 Prev | Next Part: 410809864 *Qty: 8 RIVET $0.90

* Quantity shown indicates the number of pieces used in the diagram.
