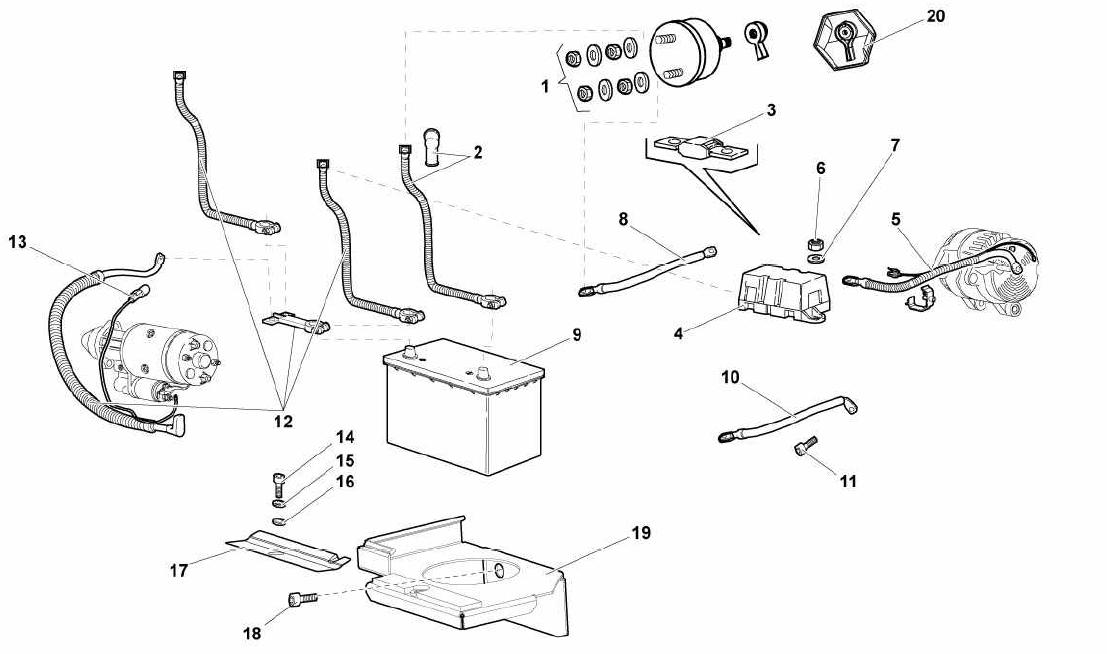

ELECTRICAL SYSTEM

Go to Split View

ELECTRICAL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: R1470113 *Qty: 1 MEGA FUSE HOLDER BOX / 250A MEGA FUSE KIT (ORDERABLE FOR $24.93
Location: - Prev | Next Part: *Qty: 0 0 Call
Location: 1 Prev | Next Part: 410915519 *Qty: 1 BATTERY ISOLATOR $225.03
Location: 2 Prev | Next Part: 410971235C *Qty: 1 CABLE (CABLE (-) FROM BATTERY TO MAIN BATTERY SWITCH) $82.21
Location: 3 Prev | Next Part: 400937629 *Qty: 1 250A FUSE $10.85
Location: 4 Prev | Next Part: 400937495 *Qty: 1 MEGA FUSE HOLDER BOX $42.58
Location: 5 Prev | Next Part: 410971134A *Qty: 1 CABLE (CABLE FROM ALTERNATOR TO FUSE CONNECTION) $67.41
Location: 6 Prev | Next Part: N0211963 *Qty: 5 NUT M5 $0.90
Location: 7 Prev | Next Part: WHT001187 *Qty: 1 WASHER 10X5.3X1 $0.90
Location: 8 Prev | Next Part: 410971227 *Qty: 1 CABLE (CABLE (-) FROM MAIN BATTERY SWITCH TO CHASSIS) $39.25
Location: 9 Prev | Next Part: 7L0915105 *Qty: 1 BATTERY $681.23
Location: 10 Prev | Next Part: 410971237 *Qty: 1 CABLE (CABLE (-) FROM ENGINE TO CHASSIS) $42.33
Location: 11 Prev | Next Part: N10049308 *Qty: 1 SCREW M8X20 $1.04
Location: 12 Prev | Next Part: 410971097A *Qty: 1 CABLE $203.28
Location: 13 Prev | Next Part: 410971347A *Qty: 1 CABLE (CABLE (+50) STARTER MOTOR EXCITATION) $28.47
Location: 14 Prev | Next Part: N10285602 *Qty: 1 SCREW $0.90
Location: 15 Prev | Next Part: WHT002962 *Qty: 1 WASHER 14X8.4X1.5 $0.90
Location: 16 Prev | Next Part: WHT001397 *Qty: 1 WASHER $0.90
Location: 17 Prev | Next Part: 7L6915138A *Qty: 1 BRACKET $4.71
Location: 18 Prev | Next Part: N10005204 *Qty: 1 SCREW M8X18 $0.90
Location: 19 Prev | Next Part: 410915517A *Qty: 1 BRACKET $45.29
Location: 20 Prev | Next Part: *Qty: 1 KNOB (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
