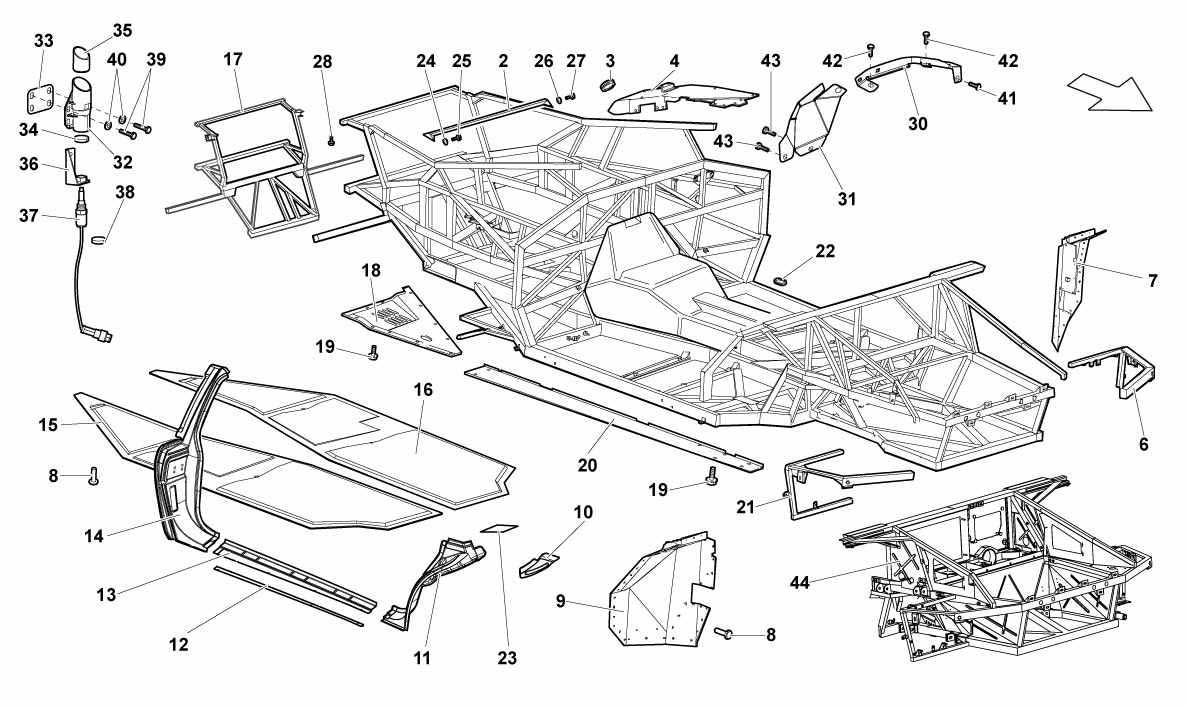

FRAME ELEMENTS

Go to Split View

FRAME ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 410813528 *Qty: 1 CROSS MEMBER $590.32
Location: 3 Prev | Next Part: 8931810 *Qty: 4 PLUG $1.92
Location: 4 Prev | Next Part: 41009139 *Qty: 1 RH SHEET $241.28
Location: 4 Prev | Next Part: 41009138 *Qty: 1 LH SHEET $241.28
Location: 6 Prev | Next Part: 41013497 *Qty: 1 LEFT FRONT FRAME $938.73
Location: 7 Prev | Next Part: 418809153 *Qty: 1 LEFT FRONT WHEELARCH, REAR PART $3,972.39
Location: 8 Prev | Next Part: 410821316 *Qty: 66 RIVET $5.08
Location: 8 Prev | Next Part: 410821316 *Qty: 202 RIVET $5.08
Location: 9 Prev | Next Part: 418809154 *Qty: 1 RIGHT FRONT WHEELARCH, REAR PART $3,972.39
Location: 10 Prev | Next Part: 410809440 *Qty: 1 RIGID UPPER CONNECTION $82.87
Location: 10 Prev | Next Part: 410809439 *Qty: 1 RIGID UPPER CONNECTION $82.87
Location: 11 Prev | Next Part: 410805048 *Qty: 1 FRONT RIGHT COVERING $2,154.84
Location: 11 Prev | Next Part: 410805047 *Qty: 1 FRONT LEFT COVERING $2,154.84
Location: 12 Prev | Next Part: 410831166 *Qty: 1 OUTER LOWER RIGHT PROFILE $79.77
Location: 12 Prev | Next Part: 410831165 *Qty: 1 OUTER LOWER LEFT PROFILE $66.29
Location: 13 Prev | Next Part: 410801256 *Qty: 1 CENTER RIGHT COVERING $590.32
Location: 13 Prev | Next Part: 410801255 *Qty: 1 CENTER LEFT COVERING $590.32
Location: 14 Prev | Next Part: 418868814 *Qty: 1 REAR RIGHT COVERING $1,653.71
Location: 14 Prev | Next Part: 418868813 *Qty: 1 REAR LEFT COVERING $481.07
Location: 15 Prev | Next Part: 410825219 *Qty: 1 BOARD $6,206.86
Location: 16 Prev | Next Part: 41008014 *Qty: 1 BOARD $4,905.98
Location: 17 Prev | Next Part: 41013499 *Qty: 1 REAR FRAME $3,129.10
Location: 18 Prev | Next Part: 410825216 *Qty: 1 RIGHT REAR SIDE MEMBER BOTTOM $1,160.85
Location: 18 Prev | Next Part: 410825215 *Qty: 1 LEFT REAR SIDE MEMBER BOTTOM $892.02
Location: 19 Prev | Next Part: WHT003069 *Qty: 11 SCREW M6X1X20 $3.06
Location: 20 Prev | Next Part: 410825210 *Qty: 1 RIGHT FRONT SIDE MEMBER BOTTOM $1,072.20
Location: 20 Prev | Next Part: 410825211 *Qty: 1 LEFT FRONT SIDE MEMBER BOTTOM $1,072.20
Location: 21 Prev | Next Part: 41013498 *Qty: 1 RIGHT FRONT FRAME $938.73
Location: 22 Prev | Next Part: 410821801 *Qty: 1 PLUG $28.94
Location: 23 Prev | Next Part: 410837267 *Qty: 2 LID $141.31
Location: 24 Prev | Next Part: 8400814 *Qty: 4 WASHER $0.90
Location: 26 Prev | Next Part: N90179103 *Qty: 2 WASHER 18X8,4X2,5 $0.90
Location: 27 Prev | Next Part: 8100854 *Qty: 2 SCREW $1.66
Location: 30 Prev | Next Part: *Qty: 0 SHEET (VALID FOR A DIFFERENT MODEL) Call
Location: 31 Prev | Next Part: *Qty: 0 SHEET (VALID FOR A DIFFERENT MODEL) Call
Location: 32 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL) Call
Location: 33 Prev | Next Part: *Qty: 0 SPACER (VALID FOR A DIFFERENT MODEL) Call
Location: 34 Prev | Next Part: *Qty: 0 RUBBER BUFFER (VALID FOR A DIFFERENT MODEL) Call
Location: 35 Prev | Next Part: *Qty: 0 BUSHING (VALID FOR A DIFFERENT MODEL) Call
Location: 36 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL) Call
Location: 37 Prev | Next Part: *Qty: 0 SWITCH (VALID FOR A DIFFERENT MODEL) Call
Location: 38 Prev | Next Part: *Qty: 0 RUBBER BUFFER (VALID FOR A DIFFERENT MODEL) Call
Location: 39 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 40 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MODEL) Call
Location: 41 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 42 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 43 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 44 Prev | Next Part: 410898045 *Qty: 1 FRONT FRAME (SEE IDENTITY PLATE PROCEDURE) $19,556.88

* Quantity shown indicates the number of pieces used in the diagram.
