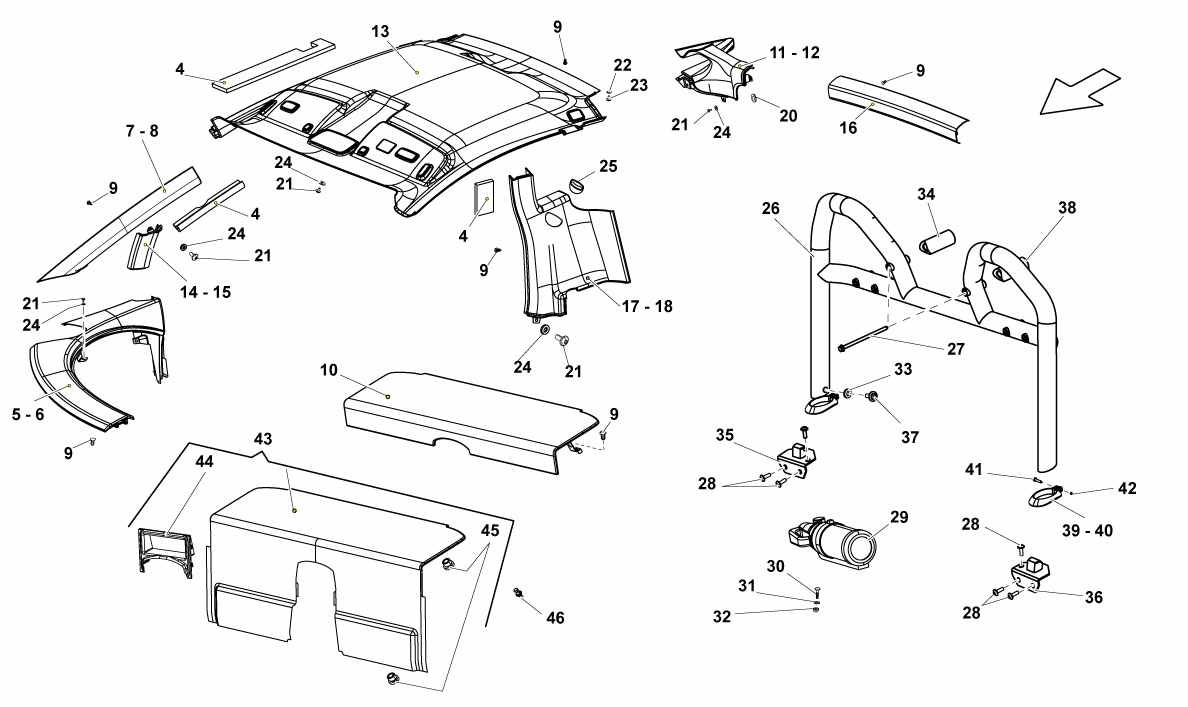

PASSENGER COMPARTMENT TRIMS

Go to Split View

PASSENGER COMPARTMENT TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 4 Prev | Next Part: 400857345 *Qty: 1 HEAD PROTECTION PAD KIT $30.56
Location: 5 Prev | Next Part: 403858345 *Qty: 1 DASH COWL TRIM LH (ALCANTARA UPHOLSTERY - SUPPLY VIN) $2,413.25
Location: 6 Prev | Next Part: 403858346 *Qty: 1 DASH COWL TRIM RH (ALCANTARA UPHOLSTERY - SUPPLY VIN) $2,413.25
Location: 7 Prev | Next Part: 400867233D *Qty: 1 LEFT A PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) $613.87
Location: 8 Prev | Next Part: 400867234D *Qty: 1 RIGHT A PILLAR COVERING ASSEMBLY (ALCANTARA UPHOLSTERY - SUPPLY VIN) $613.87
Location: 9 Prev | Next Part: 400867299 *Qty: 20 FASTENER LYS FUSION YELLOW $0.90
Location: 10 Prev | Next Part: 403868711A *Qty: 1 REAR BENCH ASSY (WITH PREDISPOSITION FOR ROLL BAR - SUPPLY VIN) $441.85
Location: 10 Prev | Next Part: 403868711 *Qty: 1 REAR BENCH ASSY (WITH PREDISPOSITION FOR FIRE EXTINGUISHER - SUPPLY VIN) $339.94
Location: 10 Prev | Next Part: 403868711B *Qty: 1 REAR BENCH ASSY (WITH PREDISPOSITION FOR FIRE EXTINGUISHER - ROLL BAR - SUPPLY VIN) $491.79
Location: 10 Prev | Next Part: 400868711A *Qty: 1 REAR BENCH ASSY (SUPPLY VIN) $290.01
Location: 11 Prev | Next Part: 403867287 *Qty: 1 C-PILLAR COVERING LH (ALCANTARA UPHOLSTERY - SUPPLY VIN) $1,564.30
Location: 11 Prev | Next Part: 403867287A *Qty: 1 C-PILLAR COVERING LH (ALCANTARA UPHOLSTERY - WITH 4 POINTS STICHING - SUPPLY VIN) $1,564.30
Location: 12 Prev | Next Part: 403867288A *Qty: 1 C-PILLAR COVERING RH (ALCANTARA UPHOLSTERY - WITH 4 POINTS STICHING - SUPPLY VIN) $1,564.30
Location: 12 Prev | Next Part: 403867288 *Qty: 1 C-PILLAR COVERING RH (ALCANTARA UPHOLSTERY - SUPPLY VIN) $1,564.30
Location: 13 Prev | Next Part: 403868631 *Qty: 1 ROOF PANEL ASSY (SUPPLY VIN) $2,286.79
Location: 14 Prev | Next Part: 400867269D *Qty: 1 LH A2-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - SUPPLY VIN) $423.40
Location: 15 Prev | Next Part: 400867270D *Qty: 1 RH A2-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - SUPPLY VIN) $423.40
Location: 16 Prev | Next Part: 400868573D *Qty: 1 REAR WINDOW GLASS LOWER COVERING ASSY (ALCANTARA UPHOLSTERY - SUPPLY VIN) $563.48
Location: 17 Prev | Next Part: 403868417A *Qty: 1 LH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITH PREDISPOSITION FOR ROLL BAR - SUPPLY VIN) $1,328.30
Location: 17 Prev | Next Part: 403868417 *Qty: 1 LH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITHAUT PREDISPOSITION FOR ROLL BAR - SUPPLY VIN) $1,324.73
Location: 18 Prev | Next Part: 403868418A *Qty: 1 RH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITH PREDISPOSITION FOR ROLL BAR - SUPPLY VIN) $1,328.30
Location: 18 Prev | Next Part: 403868418 *Qty: 1 RH B-PILLAR COVERING ASSY (ALCANTARA UPHOLSTERY - WITHAUT PREDISPOSITION FOR ROLL BAR - SUPPLY VIN) $1,324.73
Location: 20 Prev | Next Part: WHT001942 *Qty: 2 SPACER $0.90
Location: 21 Prev | Next Part: WHT000756 *Qty: 17 SCREW $0.90
Location: 22 Prev | Next Part: N10663401 *Qty: 2 WASHER $0.90
Location: 23 Prev | Next Part: N90659901 *Qty: 2 SCREW $0.90
Location: 24 Prev | Next Part: WHT000778 *Qty: 17 WASHER $0.90
Location: 25 Prev | Next Part: 408868529 *Qty: 2 SEAT BELT ORNAMENT $23.65
Location: 26 Prev | Next Part: *Qty: 1 ROLL BAR (VALID FOR A DIFFERENT MARKET) Call
Location: 27 Prev | Next Part: *Qty: 2 SCREW M8X180 (VALID FOR A DIFFERENT MARKET) Call
Location: 28 Prev | Next Part: *Qty: 6 SCREW M8X25 (VALID FOR A DIFFERENT MARKET) Call
Location: 29 Prev | Next Part: 403860283 *Qty: 1 FIRE EXTINGUISHER $155.36
Location: 30 Prev | Next Part: N10596302 *Qty: 2 SCREW M5X25.0 $0.90
Location: 31 Prev | Next Part: WHT000778 *Qty: 2 WASHER $0.90
Location: 32 Prev | Next Part: N90663602 *Qty: 2 NUT M5 $0.90
Location: 33 Prev | Next Part: *Qty: 2 WASHER (VALID FOR A DIFFERENT MARKET) Call
Location: 34 Prev | Next Part: *Qty: 1 RH ROLL BAR SPACER (VALID FOR A DIFFERENT MARKET) Call
Location: 35 Prev | Next Part: *Qty: 1 RH PLATE (VALID FOR A DIFFERENT MARKET) Call
Location: 36 Prev | Next Part: *Qty: 1 LH PLATE (VALID FOR A DIFFERENT MARKET) Call
Location: 37 Prev | Next Part: *Qty: 2 SCREW M10X30 (VALID FOR A DIFFERENT MARKET) Call
Location: 38 Prev | Next Part: *Qty: 1 LH ROLL BAR SPACER (VALID FOR A DIFFERENT MARKET) Call
Location: 39 Prev | Next Part: *Qty: 1 LH FRAME (VALID FOR A DIFFERENT MARKET) Call
Location: 40 Prev | Next Part: *Qty: 1 FRAME RH (VALID FOR A DIFFERENT MARKET) Call
Location: 41 Prev | Next Part: *Qty: 2 SCREW M3X8 (VALID FOR A DIFFERENT MARKET) Call
Location: 42 Prev | Next Part: *Qty: 2 NUT M3 (VALID FOR A DIFFERENT MARKET) Call
Location: 43 Prev | Next Part: *Qty: 1 REAR BENCH ASSY (VALID FOR A DIFFERENT MODEL) Call
Location: 44 Prev | Next Part: *Qty: 0 TRIM (VALID FOR A DIFFERENT MODEL) Call
Location: 45 Prev | Next Part: *Qty: 0 RUBBER BUFFER (VALID FOR A DIFFERENT MODEL) Call
Location: 46 Prev | Next Part: *Qty: 0 JOURNAL (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
