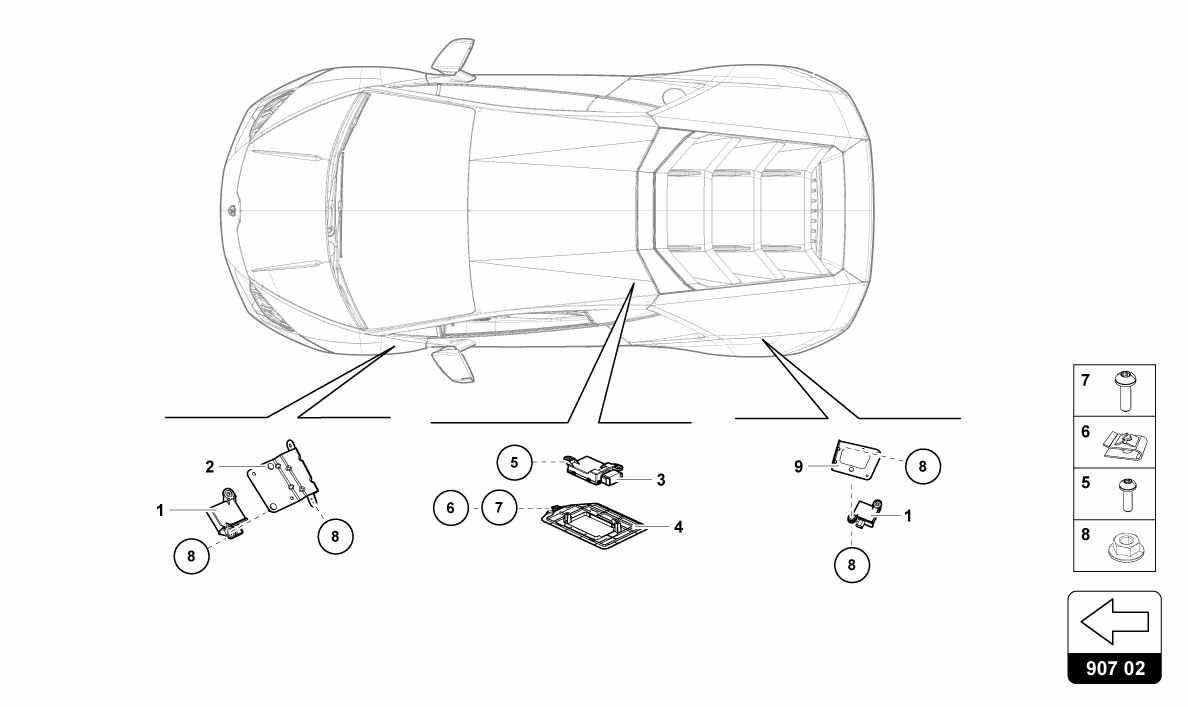

TIRE PRESSURE MONITOR SYSTEM

Go to Split View

TIRE PRESSURE MONITOR SYSTEM

Location Part # Quantity* Description Price Add To Cart
1 7PP907283 4 CONTROL UNIT (TRANSMITTING UNIT) Unavailable
2 4S0907455 1 LH SUPPORT Unavailable
2 4S0907456 1 RH SUPPORT Unavailable
3 4H0907273B 4 TIRE PRESSURE - TPMS (433.92 MHz - EU - Scandinavia - Sweden - GB -South Africa - Russia - Arabia - Dubai - Brasil - Sud Korea - Australia - New Zealand - Philippine - USA - Canada - Mexico - Taiwan) Unavailable
4 4S0907297 1 BRACKET Unavailable
5 N90905902 4 SCREW (M6X16) Unavailable
6 N90342503 4 CLIP Unavailable
7 N91096701 4 SCREW (TP5X17) Unavailable
8 N01508210 8 NUT ( M6) Unavailable
9 4S0810675A 1 LH SUPPORT Unavailable
9 4S0810676A 1 RH SUPPORT Unavailable

* Quantity shown indicates the number of pieces used in the diagram.
