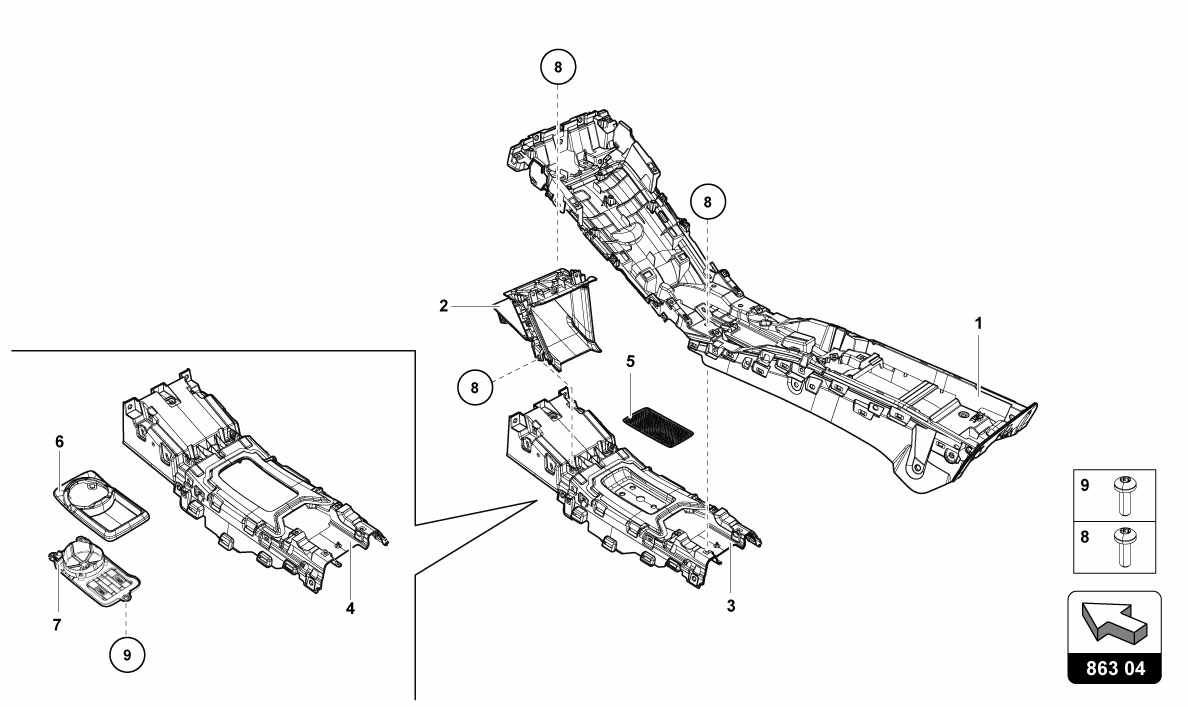

FRONT TUNNEL

Go to Split View

FRONT TUNNEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 4T0863240E *Qty: 1 CENTRE CONSOLE STRUCTURE Call
Location: 2 Prev | Next Part: 4T0864363 *Qty: 1 CENTRE CONSOLE Call
Location: 3 Prev | Next Part: 4T0863241 *Qty: 1 PANEL TRIM FOR CENTRE CONSOLE (NO SMOKER) Call
Location: 4 Prev | Next Part: 4T0863244 *Qty: 1 PANEL TRIM FOR CENTRE CONSOLE (NO SMOKER) Call
Location: 4 Prev | Next Part: 4T0863244C *Qty: 1 PANEL TRIM FOR CENTRE CONSOLE (SMOKER) Call
Location: 5 Prev | Next Part: 4T0863049 *Qty: 2 MAT (NO SMOKER) Call
Location: 6 Prev | Next Part: 4T0863084 *Qty: 1 ASHTRAY BEZEL (SMOKER) Call
Location: 7 Prev | Next Part: 4T0863160 *Qty: 1 ASHTRAY (SMOKER) Call
Location: 8 Prev | Next Part: N90944604 *Qty: 16 SCREW M5X12 $1.12
Location: 9 Prev | Next Part: N10602101 *Qty: 2 SCREW M6X16 $0.90

* Quantity shown indicates the number of pieces used in the diagram.
