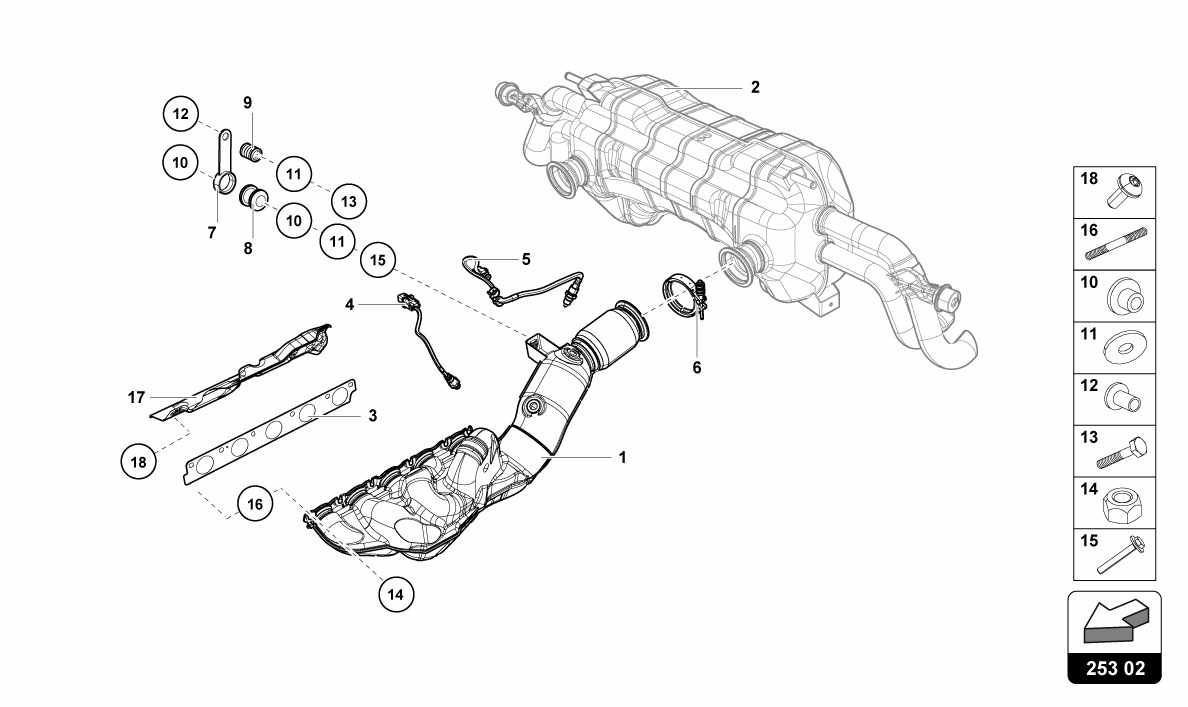

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 420251211H *Qty: 1 LEFT EXHAUST MANIFOLD Call
Location: 1 Prev | Next Part: 420251212H *Qty: 1 RIGHT EXHAUST MANIFOLD Call
Location: 2 Prev | Next Part: *Qty: 1 SILENCER ASSEMBLY (SEE TABLE 253.02.00) Call
Location: 3 Prev | Next Part: 7L253039P *Qty: 2 GASKET $26.62
Location: 4 Prev | Next Part: 4S0906262 *Qty: 1 RH FRONT OXYGEN SENSOR $280.27
Location: 4 Prev | Next Part: 4S0906262C *Qty: 1 LH FRONT OXYGEN SENSOR $280.27
Location: 5 Prev | Next Part: 4S0906262D *Qty: 2 REAR OXYGEN SENSOR $280.27
Location: 6 Prev | Next Part: 420251143 *Qty: 12 CLAMP $75.48
Location: 7 Prev | Next Part: 8K0253295 *Qty: 2 HOOK $6.78
Location: 8 Prev | Next Part: 3B0253149 *Qty: 2 RUBBER BUSHING $9.01
Location: 9 Prev | Next Part: 893253353 *Qty: 2 SPRING $9.59
Location: 10 Prev | Next Part: 4B0253205G *Qty: 4 BUSHING $5.13
Location: 11 Prev | Next Part: N01167026 *Qty: 2 WASHER (8X24X2) $0.90
Location: 12 Prev | Next Part: 4B0253205C *Qty: 2 BUSHING $3.89
Location: 13 Prev | Next Part: N0403016 *Qty: 2 SCREW (M8X48) $1.50
Location: 14 Prev | Next Part: N90894601 *Qty: 12 NUT (M8) $0.90
Location: 15 Prev | Next Part: N10314506 *Qty: 1 SCREW (M10X50) $3.97
Location: 16 Prev | Next Part: N91021502 *Qty: 12 SCREW (M8X25) $1.14
Location: 17 Prev | Next Part: 420199455 *Qty: 1 LH PANEL $71.60
Location: 17 Prev | Next Part: 420199456 *Qty: 1 RH PANEL $71.60
Location: 18 Prev | Next Part: N90780901 *Qty: 5 SCREW (M6X16) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
