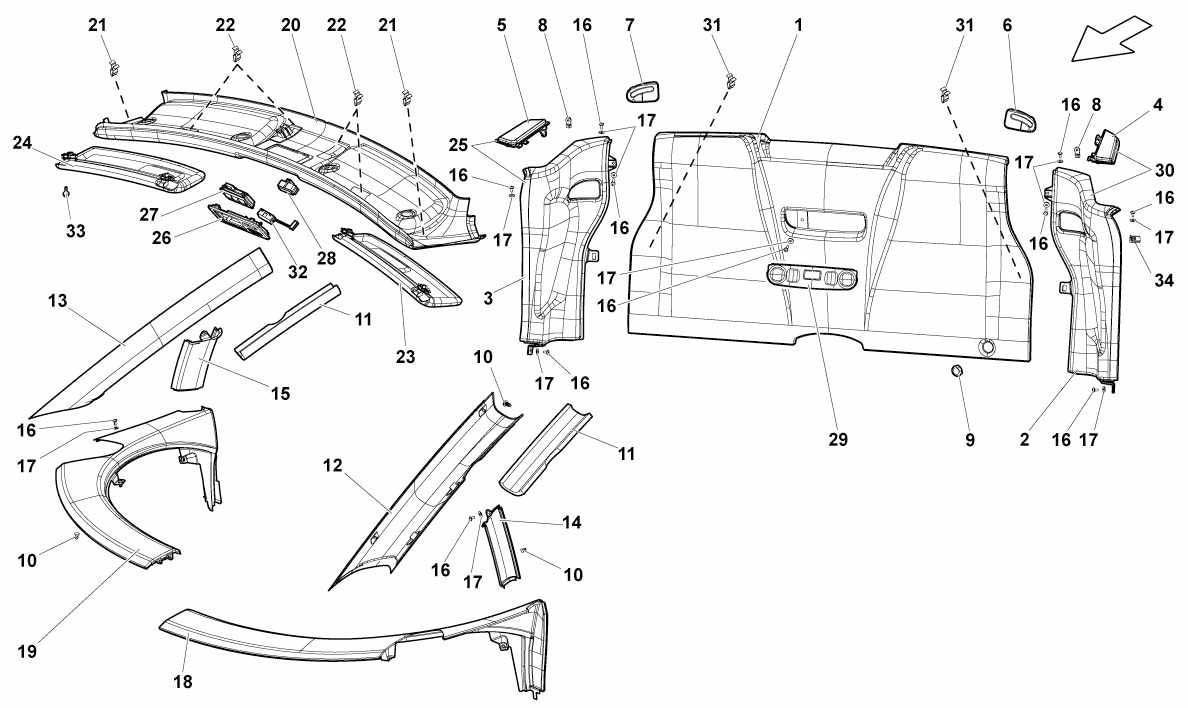

PASSENGER COMPARTMENT TRIMS

Go to Split View

PASSENGER COMPARTMENT TRIMS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407868573D *Qty: 1 REAR PANEL (SUPPLY VIN) $1,002.31
Location: 2 Prev | Next Part: *Qty: 1 LEFT C A-PILLAR- INSIDE (CANNOT BE SOLD SEPARATELY - SEE REF. 30) Call
Location: 3 Prev | Next Part: *Qty: 1 RIGHT C A-PILLAR- INSIDE (CANNOT BE SOLD SEPARATELY - SEE REF. 25) Call
Location: 4 Prev | Next Part: 407871303B *Qty: 1 LID- LEFT (SUPPLY VIN) $254.76
Location: 5 Prev | Next Part: 407871304B *Qty: 1 LID- RIGHT (SUPPLY VIN) $254.76
Location: 6 Prev | Next Part: 407868529 *Qty: 1 SEAT BELT ORNAMENT LEFT $25.48
Location: 7 Prev | Next Part: 407868530 *Qty: 1 SEAT BELT ORNAMENT RIGHT $25.48
Location: 8 Prev | Next Part: 407868449A *Qty: 2 FASTENER $0.90
Location: 9 Prev | Next Part: 407813519 *Qty: 1 PLUG (SUPPLY VIN) $35.27
Location: 10 Prev | Next Part: 400867299 *Qty: 8 FASTENER LYS FUSION- YELLOW $0.90
Location: 11 Prev | Next Part: 407857361 *Qty: 1 HEAD PROTECTION PAD LEFT $26.41
Location: 11 Prev | Next Part: 407857362 *Qty: 1 HEAD PROTECTION PAD RIGHT $26.41
Location: 12 Prev | Next Part: 400867233 *Qty: 1 LEFT A PILLAR COVERING ASSEMBLY (SUPPLY VIN) $284.62
Location: 13 Prev | Next Part: 400867234 *Qty: 1 RIGHT A PILLAR COVERING ASSEMBLY (SUPPLY VIN) $284.62
Location: 14 Prev | Next Part: 400867269A *Qty: 1 LH A2-PILLAR COVERING ASSY (SUPPLY VIN) $423.40
Location: 15 Prev | Next Part: 400867270A *Qty: 1 RH A2-PILLAR COVERING ASSY (SUPPLY VIN) $423.40
Location: 16 Prev | Next Part: N10569501 *Qty: 15 SCREW M5X16 $0.90
Location: 17 Prev | Next Part: WHT000778 *Qty: 15 WASHER $0.90
Location: 18 Prev | Next Part: 400858345 *Qty: 1 DASH COWL TRIM- LEFT (SUPPLY VIN) $2,616.81
Location: 19 Prev | Next Part: 400858346 *Qty: 1 DASH COWL TRIM- RIGHT (SUPPLY VIN) $2,616.81
Location: 20 Prev | Next Part: 407867512A *Qty: 1 WINDSHIELD CROSS MEMBER COVERING ASSEMBLY (SUPPLY VIN) $1,835.16
Location: 21 Prev | Next Part: 4A0867276A *Qty: 2 CLIP $0.90
Location: 22 Prev | Next Part: 4A0867276 *Qty: 4 CLIP $0.90
Location: 23 Prev | Next Part: 407857551 *Qty: 1 SUN VISOR LEFT (SUPPLY VIN) $441.85
Location: 24 Prev | Next Part: 407857552 *Qty: 0 SUN VISOR RIGHT (SUPPLY VIN) $451.13
Location: 25 Prev | Next Part: 407868258D *Qty: 1 RIGHT C A-PILLAR- INSIDE ASSEMBLY (SUPPLY VIN) $1,485.43
Location: 26 Prev | Next Part: 407858340 *Qty: 1 FRAME $39.24
Location: 26 Prev | Next Part: 407858340A *Qty: 1 FRAME BOX OPENING MODULE $34.14
Location: 27 Prev | Next Part: 8N0959719 *Qty: 1 BOX OPENING MODULE $186.85
Location: 28 Prev | Next Part: 407919234 *Qty: 1 WARNING LIGHT $32.56
Location: 29 Prev | Next Part: 407947111 *Qty: 1 INNER LAMP $75.76
Location: 30 Prev | Next Part: 407868257D *Qty: 1 LEFT C A-PILLAR- INSIDE ASSEMBLY (SUPPLY VIN) $1,485.43
Location: 31 Prev | Next Part: 400868563A *Qty: 2 CLIP $31.78
Location: 32 Prev | Next Part: *Qty: 0 MICROPHONE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 33 Prev | Next Part: WHT001194 *Qty: 2 SCREW M5X14 $0.90
Location: 34 Prev | Next Part: N90356204 *Qty: 2 CLIP $0.90

* Quantity shown indicates the number of pieces used in the diagram.
