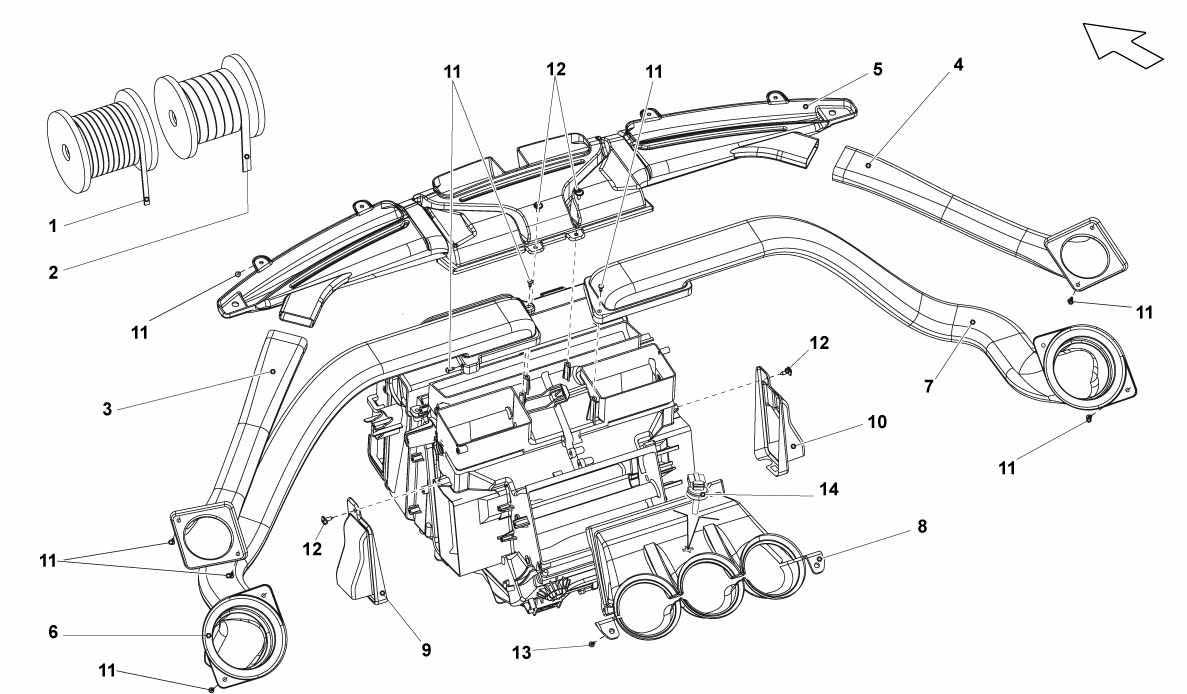

DASHBOARD AIR PIPE

Go to Split View

DASHBOARD AIR PIPE

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 51763003 *Qty: 1 GASKET (ORDER BY THE METRE) $8.66
Location: 2 Prev | Next Part: 51763004 *Qty: 1 GASKET (ORDER BY THE METRE) $10.47
Location: 3 Prev | Next Part: 400815683 *Qty: 1 LH PIPE $23.56
Location: 4 Prev | Next Part: 400815684 *Qty: 1 RH PIPE $23.56
Location: 5 Prev | Next Part: 400819203 *Qty: 1 DEFROSTER AIR CONVEYOR ASSEMBLY $101.21
Location: 6 Prev | Next Part: 400819869A *Qty: 1 LH PIPE $36.24
Location: 7 Prev | Next Part: 400819870A *Qty: 1 RH PIPE $36.24
Location: 8 Prev | Next Part: 400819382B *Qty: 1 AIR VENT ASSEMBLY $37.45
Location: 9 Prev | Next Part: 400864255A *Qty: 1 PIPE UNION $23.61
Location: 10 Prev | Next Part: 400864256B *Qty: 1 PIPE UNION $24.04
Location: 11 Prev | Next Part: N90562401 *Qty: 12 SCREW $1.41
Location: 12 Prev | Next Part: N90986801 *Qty: 4 SCREW $0.90
Location: 13 Prev | Next Part: N90944603 *Qty: 2 SCREW $0.90
Location: 14 Prev | Next Part: *Qty: 0 SENSOR (SEE TABLE 260.03.00) Call

* Quantity shown indicates the number of pieces used in the diagram.
