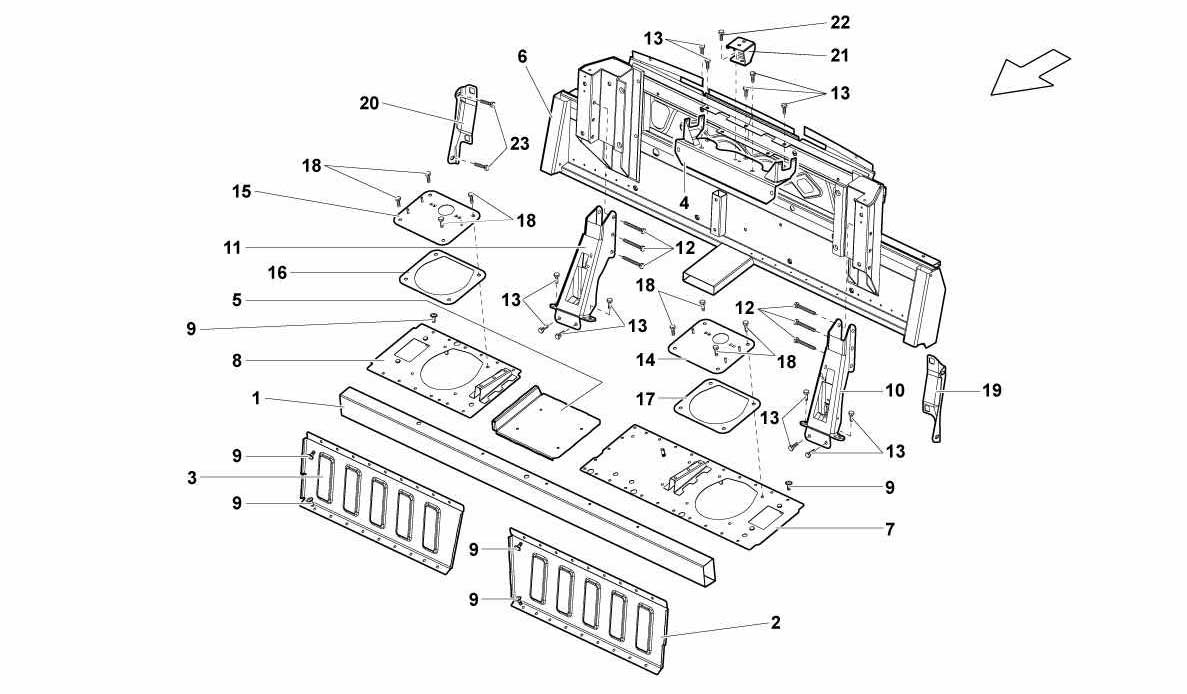

CENTER FRAME ELEMENTS

Go to Split View

CENTER FRAME ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 407803221 *Qty: 1 CROSS MEMBER $542.62
Location: 2 Prev | Next Part: 408801403 *Qty: 1 BOARD $424.98
Location: 3 Prev | Next Part: 408801404 *Qty: 1 BOARD $424.98
Location: 4 Prev | Next Part: 407803145 *Qty: 1 BRACKET $85.97
Location: 5 Prev | Next Part: 400804210A *Qty: 1 INSERT $260.87
Location: 6 Prev | Next Part: 407813467 *Qty: 1 REAR PANEL $3,927.60
Location: 7 Prev | Next Part: 407813503 *Qty: 1 BOARD $503.99
Location: 8 Prev | Next Part: 407813504 *Qty: 1 BOARD $473.52
Location: 9 Prev | Next Part: N90919302 *Qty: 55 SCREW M5X18.0 $0.90
Location: 10 Prev | Next Part: 407803227 *Qty: 1 LH BRACKET $256.15
Location: 11 Prev | Next Part: 407803228 *Qty: 1 RH BRACKET $256.15
Location: 12 Prev | Next Part: 407813975 *Qty: 6 SCREW AM8X75.0 $0.90
Location: 13 Prev | Next Part: N91000203 *Qty: 9 SCREW M8X25.0 $4.07
Location: 14 Prev | Next Part: 407201970A *Qty: 1 COVER- LH $36.21
Location: 15 Prev | Next Part: 407201970B *Qty: 1 COVER- RH $36.21
Location: 16 Prev | Next Part: 400201621 *Qty: 1 GASKET $28.66
Location: 17 Prev | Next Part: 400201621 *Qty: 1 GASKET $28.66
Location: 18 Prev | Next Part: N90847901 *Qty: 8 SCREW M6X15.0 $0.90
Location: 19 Prev | Next Part: 407803581 *Qty: 1 FIXING CORNER $138.48
Location: 20 Prev | Next Part: 407803582 *Qty: 1 FIXING CORNER $138.48
Location: 21 Prev | Next Part: 407827876 *Qty: 1 SUPPORT $23.25
Location: 22 Prev | Next Part: N90693702 *Qty: 2 SCREW M5X20.0 $0.90
Location: 23 Prev | Next Part: N10347804 *Qty: 4 SCREW M8X20.00 $1.04

* Quantity shown indicates the number of pieces used in the diagram.
