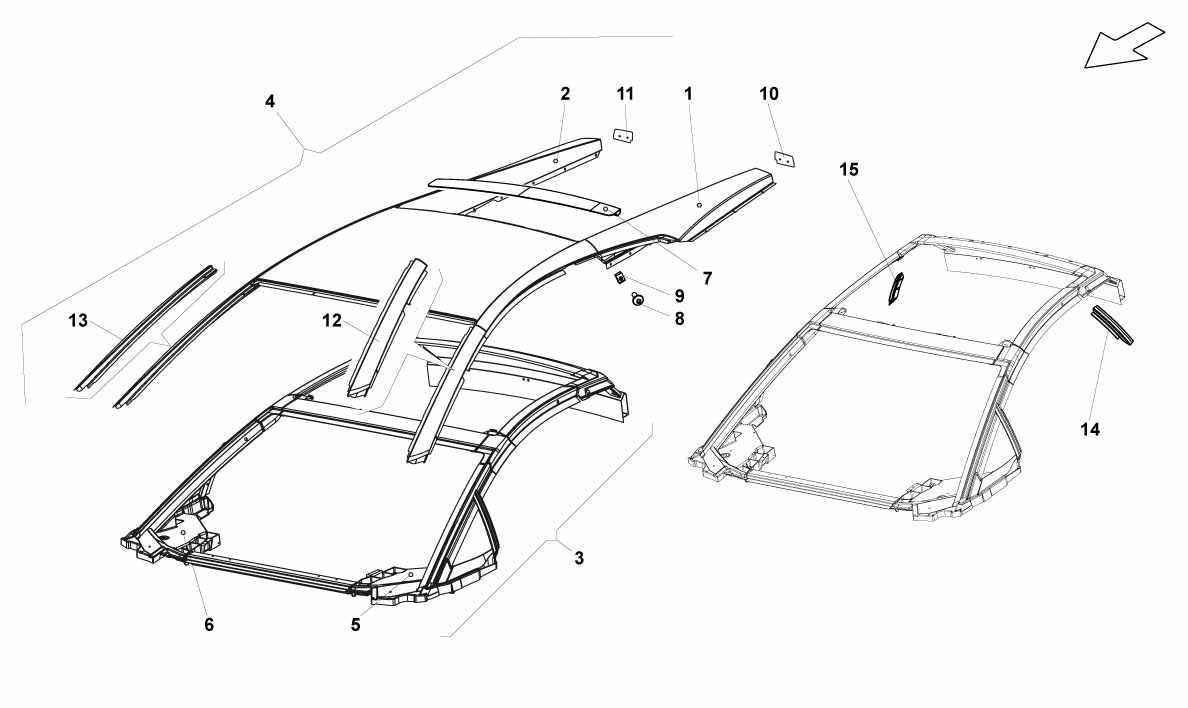

ROOF PANEL

Go to Split View

ROOF PANEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 408809267A *Qty: 1 EXTERNAL C A-PILLAR $3,783.38
Location: 2 Prev | Next Part: 408809268A *Qty: 1 EXTERNAL C A-PILLAR $3,783.38
Location: 3 Prev | Next Part: 408817021A *Qty: 1 ROOF FRAME $8,893.50
Location: 4 Prev | Next Part: 408817101A *Qty: 1 ROOF PANEL $19,842.11
Location: 5 Prev | Next Part: 400805151D *Qty: 1 A-PILLAR COVER Call
Location: 6 Prev | Next Part: 400805152D *Qty: 1 A-PILLAR COVER Call
Location: 7 Prev | Next Part: 408853236C *Qty: 1 ROOF FRAME COMPLETION $1,157.34
Location: 8 Prev | Next Part: N90986803 *Qty: 5 SCREW ST4.2X13 $0.90
Location: 9 Prev | Next Part: N90698801 *Qty: 5 CLIP $0.90
Location: 10 Prev | Next Part: 400809649 *Qty: 1 INSERT $72.69
Location: 11 Prev | Next Part: 400809650 *Qty: 1 INSERT $72.69
Location: 12 Prev | Next Part: 408809245 *Qty: 1 EXTERNAL A A-PILLAR $782.90
Location: 13 Prev | Next Part: 408809246 *Qty: 1 EXTERNAL A A-PILLAR $782.90
Location: 14 Prev | Next Part: 408809891 *Qty: 1 EXTERNAL B-PILLAR $233.11
Location: 15 Prev | Next Part: 408809892 *Qty: 1 EXTERNAL B-PILLAR $233.11

* Quantity shown indicates the number of pieces used in the diagram.
