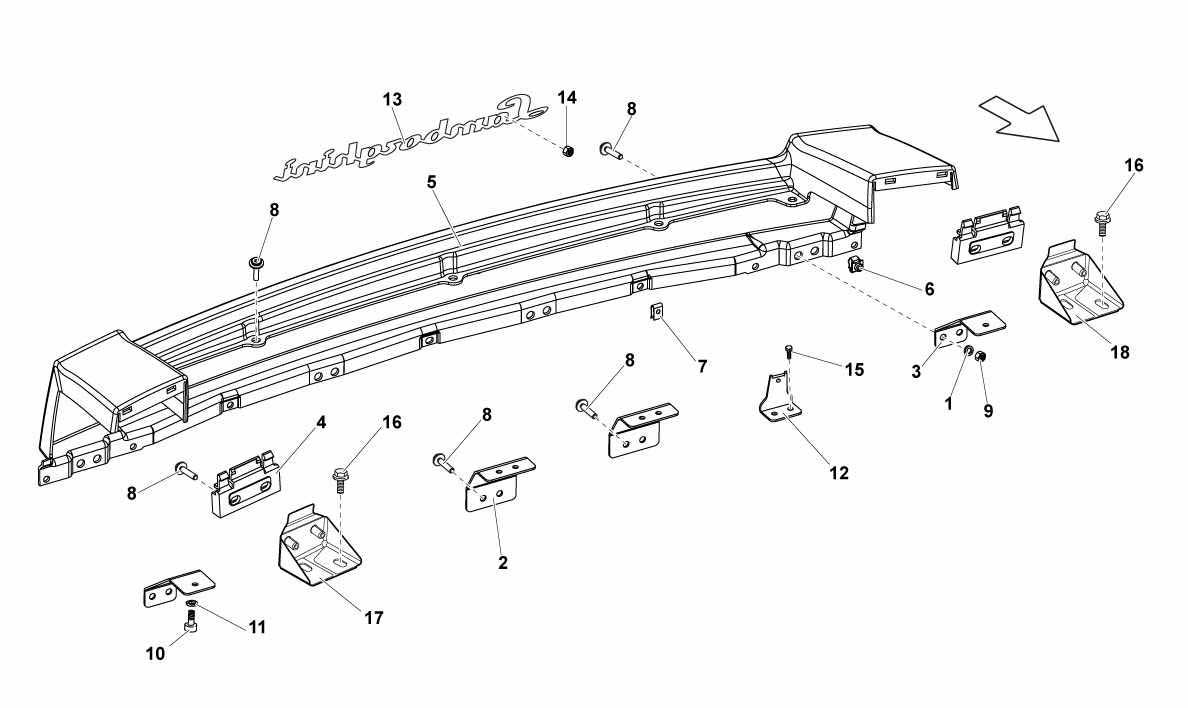

REAR END PANEL

Go to Split View

REAR END PANEL

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: WHT000778 *Qty: 12 WASHER $0.90
Location: 2 Prev | Next Part: 400864185A *Qty: 2 FIXING BRACKET- INNER $14.60
Location: 3 Prev | Next Part: 400864186 *Qty: 2 FIXING BRACKET- OUTER $6.13
Location: 4 Prev | Next Part: 400864455A *Qty: 2 CLIP $79.43
Location: 5 Prev | Next Part: 400864487 *Qty: 1 ORNAMENT- REAR $671.99
Location: 6 Prev | Next Part: N90834301 *Qty: 7 CLIP $0.90
Location: 7 Prev | Next Part: N90526602 *Qty: 3 CLIP $0.90
Location: 8 Prev | Next Part: N90807405 *Qty: 8 SCREW M5X18 $0.90
Location: 9 Prev | Next Part: N0211963 *Qty: 8 NUT M5 $0.90
Location: 10 Prev | Next Part: WHT001190 *Qty: 9 SCREW $1.60
Location: 11 Prev | Next Part: WHT000778 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 400807125 *Qty: 6 BRACKET $70.39
Location: 13 Prev | Next Part: 400853742B *Qty: 1 REAR LAMBORGHINI DECORATION $201.61
Location: 14 Prev | Next Part: 400853139 *Qty: 2 CLIP $0.90
Location: 15 Prev | Next Part: N90365912 *Qty: 12 SCREW $0.90
Location: 16 Prev | Next Part: *Qty: 4 SCREW (VALID FOR A DIFFERENT MODEL) Call
Location: 17 Prev | Next Part: *Qty: 1 BRACKET (VALID FOR A DIFFERENT MODEL) Call
Location: 18 Prev | Next Part: *Qty: 1 BRACKET (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
