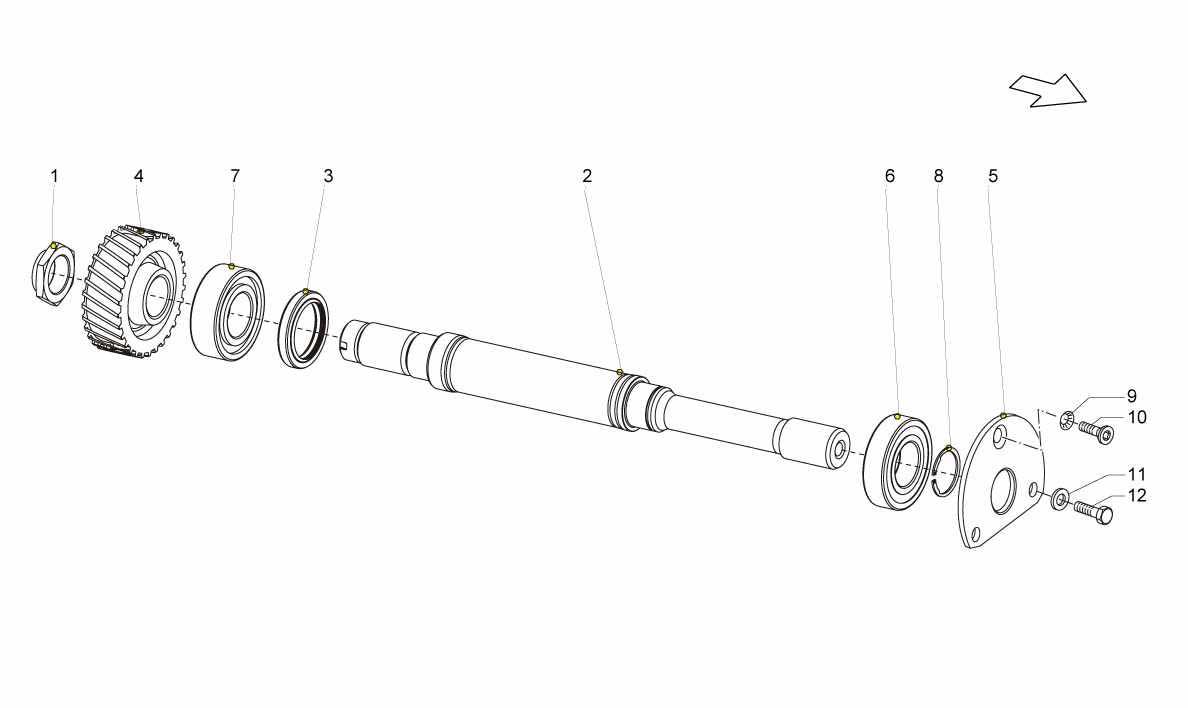

DISMISSAL SHAFT

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 86307303 *Qty: 1 RING NUT $78.71
Location: 2 Prev | Next Part: 86311106 *Qty: 1 MAIN SHAFT $506.21
Location: 3 Prev | Next Part: 86311113 *Qty: 1 SEAL RING $35.58
Location: 4 Prev | Next Part: 86311345A *Qty: 1 GEAR $330.70
Location: 5 Prev | Next Part: 86525283B *Qty: 1 COVER $114.84
Location: 6 Prev | Next Part: 86311133A *Qty: 1 BEARING $43.40
Location: 7 Prev | Next Part: 86311372A *Qty: 1 BEARING $270.40
Location: 8 Prev | Next Part: 86311317 *Qty: 1 RING $4.46
Location: 9 Prev | Next Part: 86311276 *Qty: 1 WASHER ( FOR 086525283A) $0.90
Location: 10 Prev | Next Part: N90744801 *Qty: 1 SCREW ( FOR 086525283A) $0.90
Location: 11 Prev | Next Part: N01155813 *Qty: 2 WASHER (FOR 086525283A) $0.90
Location: 12 Prev | Next Part: N10545402 *Qty: 2 SCREW ( FOR 086525283A) $1.04

* Quantity shown indicates the number of pieces used in the diagram.
