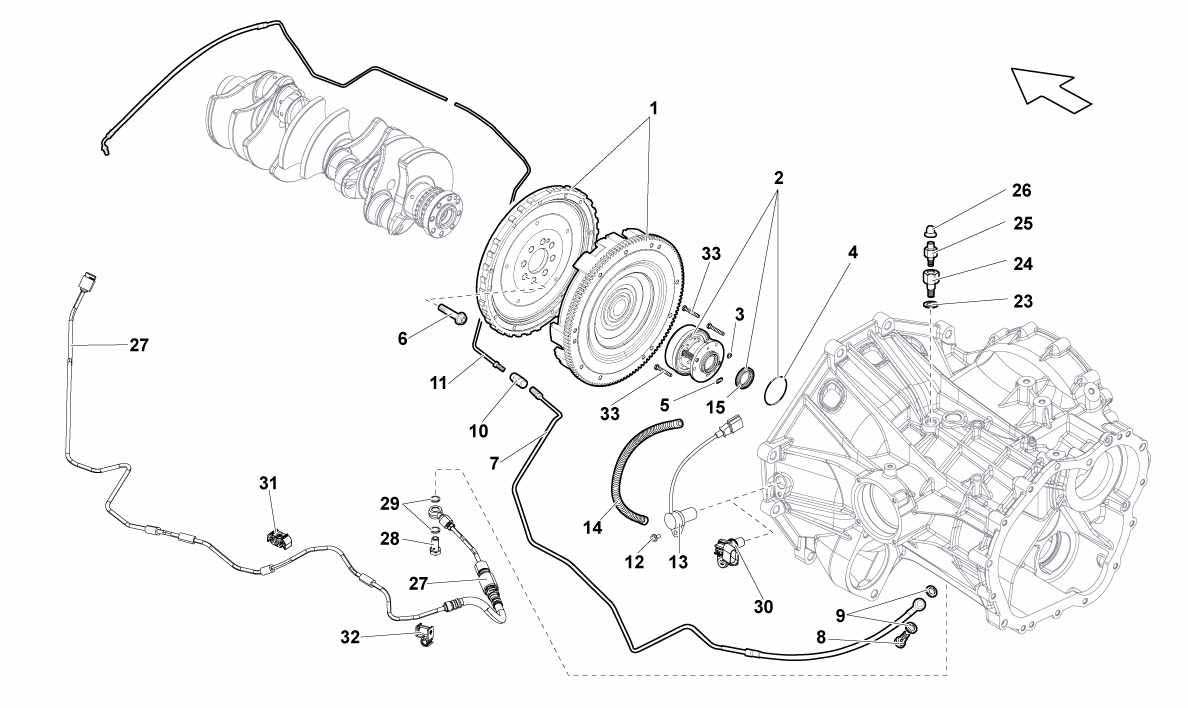

CLUTCH (MANUAL)

Go to Split View

CLUTCH (MANUAL)

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L105269G *Qty: 1 CLUTCH FLYWHEEL (MANUAL GEARBOX) $4,133.77
Location: 2 Prev | Next Part: 86141671A *Qty: 1 THRUST BEARING (MANUAL GEARBOX) $4,653.97
Location: 3 Prev | Next Part: N90039604 *Qty: 1 O-RING 9.25X1.78 (MANUAL GEARBOX) $1.42
Location: 4 Prev | Next Part: N91020601 *Qty: 1 O-RING 44.17X1.78 $4.40
Location: 5 Prev | Next Part: N90111301 *Qty: 1 O-RING 12.42X1.78 (MANUAL GEARBOX) $0.98
Location: 6 Prev | Next Part: WHT000938 *Qty: 8 SCREW M10X1X19X11 $6.28
Location: 7 Prev | Next Part: 400721462D *Qty: 1 PIPE $403.47
Location: 8 Prev | Next Part: N0210717 *Qty: 1 SCREW $6.12
Location: 9 Prev | Next Part: N0138131 *Qty: 2 WASHER $0.90
Location: 10 Prev | Next Part: 400721419 *Qty: 1 CONNECTOR $105.91
Location: 11 Prev | Next Part: 400721461B *Qty: 1 PIPE $742.77
Location: 12 Prev | Next Part: N10451405 *Qty: 1 SCREW M6X16 $0.90
Location: 13 Prev | Next Part: 79905381 *Qty: 1 TRANSDUCER $75.61
Location: 14 Prev | Next Part: 400971788 *Qty: 1 PIPE $0.90
Location: 15 Prev | Next Part: 86141243A *Qty: 1 OIL SEAL $18.61
Location: 23 Prev | Next Part: N91014802 *Qty: 1 O-RING 11.11X1.78 $2.91
Location: 24 Prev | Next Part: 86301065 *Qty: 1 CONNECTOR $51.84
Location: 25 Prev | Next Part: 86301138 *Qty: 1 PLUG $20.50
Location: 26 Prev | Next Part: 86301147 *Qty: 1 BOOT $0.90
Location: 27 Prev | Next Part: *Qty: 0 PIPE (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 28 Prev | Next Part: *Qty: 0 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 29 Prev | Next Part: *Qty: 0 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 30 Prev | Next Part: *Qty: 0 TRANSDUCER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 31 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 32 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 33 Prev | Next Part: *Qty: 0 SCREW M6X20 (VALID FOR A DIFFERENT MODEL YEAR) Call

* Quantity shown indicates the number of pieces used in the diagram.
