SEATS AND SAFETY BELTS

Go to Split View

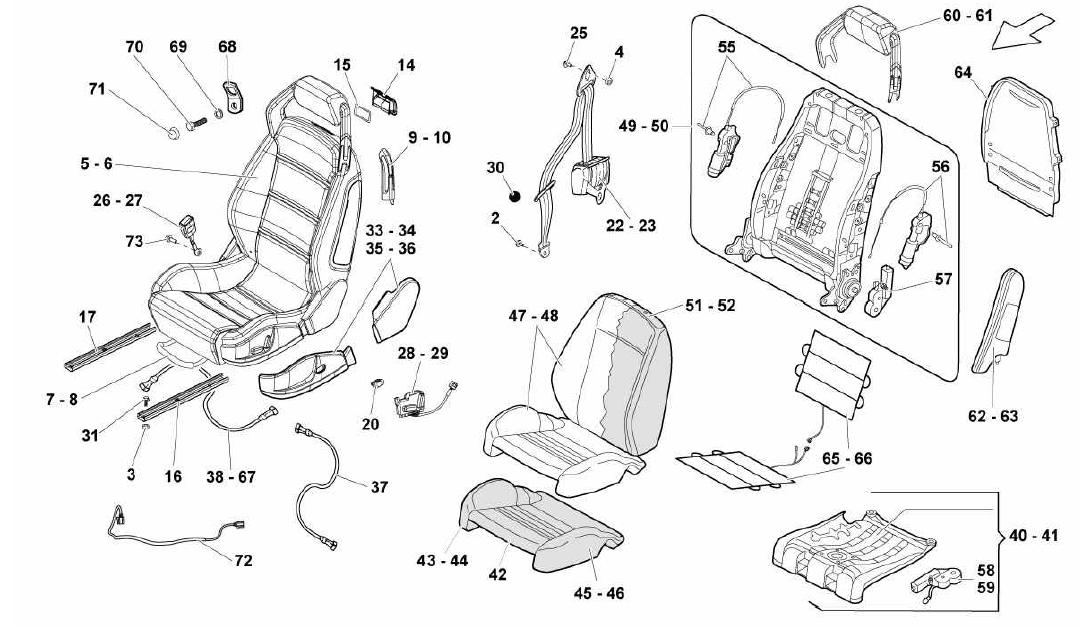

SEATS AND SAFETY BELTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 2 Prev | Next Part: 111857799 *Qty: 4 SCREW $0.90
Location: 3 Prev | Next Part: 400804347 *Qty: 8 SPACER PLATE $7.77
Location: 4 Prev | Next Part: 400857767 *Qty: 2 SEAT BELT SPACER $13.74
Location: 5 Prev | Next Part: 400881003A *Qty: 1 LEFT SEAT (LEFT ELECTRIC SEAT ? SUPPLY VIN - USE REF. 72) $19,842.11
Location: 5 Prev | Next Part: 400881003 *Qty: 1 LEFT SEAT (LEFT MANUAL SEAT - SUPPLY VIN - USE REF. 72) $8,267.54
Location: 6 Prev | Next Part: 400881004A *Qty: 1 RIGHT SEAT (RIGHT ELECTRIC SEAT ? SUPPLY VIN - USE REF. 72) $19,842.11
Location: 6 Prev | Next Part: 400881004 *Qty: 1 RIGHT SEAT (RIGHT MANUAL SEAT - SUPPLY VIN - USE REF. 72) $8,267.54
Location: 7 Prev | Next Part: 400881091 *Qty: 1 LH MANUAL SEAT RELEASE LEVER $114.60
Location: 8 Prev | Next Part: 400881091 *Qty: 1 RH MANUAL SEAT RELEASE LEVER $114.60
Location: 9 Prev | Next Part: 400881259 *Qty: 1 LH BELT GUIDE $103.03
Location: 10 Prev | Next Part: 400881260 *Qty: 1 RH BELT GUIDE $103.03
Location: 14 Prev | Next Part: 400881605 *Qty: 2 SEAT RECLINER LEVER $155.71
Location: 15 Prev | Next Part: 400881607 *Qty: 2 LEVER ORNAMENT $165.35
Location: 16 Prev | Next Part: *Qty: 0 SEAT RAIL- LH (CANNOT BE SOLD SEPARATELY - SEE REF. 40 - 41) Call
Location: 17 Prev | Next Part: *Qty: 0 SEAT RAIL- RH (CANNOT BE SOLD SEPARATELY - SEE REF. 40 - 41) Call
Location: 20 Prev | Next Part: 400959777 *Qty: 1 LH SEATBACK BUTTON $125.91
Location: 22 Prev | Next Part: 401857705A *Qty: 1 SEAT BELT (LH) $574.71
Location: 23 Prev | Next Part: 401857706A *Qty: 1 SEAT BELT (RH) $587.80
Location: 25 Prev | Next Part: 481857757 *Qty: 2 SCREW $0.93
Location: 26 Prev | Next Part: 4E0857755A *Qty: 1 BUCKLE- LH $465.15
Location: 27 Prev | Next Part: 4E0857756A *Qty: 1 BUCKLE- RH $580.20
Location: 28 Prev | Next Part: 4E0959765 *Qty: 1 LH POWER SEAT CONTROL SWITCH $500.98
Location: 29 Prev | Next Part: 4E0959766 *Qty: 1 RH POWER SEAT CONTROL SWITCH $500.98
Location: 30 Prev | Next Part: 811857845 *Qty: 2 BELT SCREW CAP $0.90
Location: 31 Prev | Next Part: N10578904 *Qty: 8 SCREW $1.04
Location: 33 Prev | Next Part: 400881325 *Qty: 1 LH MANUAL SEAT CARTER $321.51
Location: 34 Prev | Next Part: 400881326 *Qty: 1 RH MANUAL SEAT CARTER $321.51
Location: 35 Prev | Next Part: 400881325C *Qty: 1 LH POWER SEAT CARTER (CARBON INTERIOR ? SUPPLY VIN) $2,176.12
Location: 35 Prev | Next Part: 400881325A *Qty: 1 LH POWER SEAT CARTER $321.51
Location: 36 Prev | Next Part: 400881326C *Qty: 1 RH POWER SEAT CARTER (LEATHER INTERIOR - SUPPLY VIN) $2,176.12
Location: 36 Prev | Next Part: 400881326A *Qty: 1 RH POWER SEAT CARTER $321.51
Location: 37 Prev | Next Part: *Qty: 0 WIRING HARNESS (VALID FOR A DIFFERENT MARKET/MODEL YEAR) Call
Location: 38 Prev | Next Part: 400971384B *Qty: 1 ELECTRIC SEAT WIRING HARNESS RIGHT $1,135.17
Location: 38 Prev | Next Part: 400971384A *Qty: 2 MANUAL SEAT WIRING HARNESS $856.32
Location: 40 Prev | Next Part: 400881157A *Qty: 1 SEAT FFRAME ELECTRIC LEFT (WITH MOTOR) $2,480.26
Location: 40 Prev | Next Part: 400881157 *Qty: 1 SEAT FFRAME LEFT $2,480.26
Location: 41 Prev | Next Part: 400881158A *Qty: 1 SEAT FFRAME ELECTRIC RIGHT (WITH MOTOR) $2,480.26
Location: 41 Prev | Next Part: 400881158 *Qty: 1 SEAT FFRAME RIGHT $2,480.26
Location: 42 Prev | Next Part: 400881375B *Qty: 1 PADDING FOR SEAT ELECTRIC (CENTER) $226.71
Location: 42 Prev | Next Part: 400881375C *Qty: 1 PADDING FOR SEAT ELECTRIC (CENTER - COMFORT) $323.08
Location: 42 Prev | Next Part: 400881375A *Qty: 1 PADDING FOR SEAT MANUAL (CENTER) $226.71
Location: 43 Prev | Next Part: 400881377A *Qty: 1 PADDING FOR SEAT LEFT (OUTER) $189.23
Location: 44 Prev | Next Part: 400881378A *Qty: 1 PADDING FOR SEAT RIGHT (OUTER) $189.23
Location: 45 Prev | Next Part: 400881377B *Qty: 1 PADDING FOR SEAT LEFT (INNER RIGHT) $189.33
Location: 46 Prev | Next Part: 400881378B *Qty: 1 PADDING FOR SEAT RIGHT (INNER LEFT) $189.33
Location: 47 Prev | Next Part: 400881405 *Qty: 1 SEAT COVER LEFT (CLOTH/LEATHER - SUPPLY VIN) $9,094.30
Location: 48 Prev | Next Part: 400881406 *Qty: 1 SEAT COVER RIGHT (CLOTH/LEATHER - SUPPLY VIN) $9,094.30
Location: 49 Prev | Next Part: 400881045A *Qty: 1 BACKREST FRAME LEFT ELECTRIC $2,480.26
Location: 50 Prev | Next Part: 400881046 *Qty: 1 BACKREST FRAME RIGHT MANUAL $2,480.26
Location: 51 Prev | Next Part: 400882843B *Qty: 1 PADDING FOR BACKREST LEFT ELECTRIC (COMFORT) $599.35
Location: 51 Prev | Next Part: 400882843A *Qty: 1 PADDING FOR BACKREST LEFT ELECTRIC $767.00
Location: 51 Prev | Next Part: 400882843 *Qty: 1 PADDING FOR BACKREST LEFT MANUAL $767.00
Location: 52 Prev | Next Part: 400882844B *Qty: 1 PADDING FOR BACKREST RIGHT ELECTRIC (COMFORT) $599.35
Location: 52 Prev | Next Part: 400882844A *Qty: 1 PADDING FOR BACKREST RIGHT ELECTRIC $767.00
Location: 52 Prev | Next Part: 400882844 *Qty: 1 PADDING FOR BACKREST RIGHT MANUAL $767.00
Location: 55 Prev | Next Part: 400959706 *Qty: 1 MOTOR FOR LUMBAR ADJUSTMENT (RIGHT SEAT) $655.04
Location: 56 Prev | Next Part: 400959705 *Qty: 1 MOTOR FOR LUMBAR ADJUSTMENT (LEFT SEAT) $487.70
Location: 57 Prev | Next Part: 400959761 *Qty: 2 MOTOR FOR BACKREST ADJUSTMENT $264.78
Location: 58 Prev | Next Part: *Qty: 1 SEAT ADJUSTMENT MOTOR FOR HEIGHT ADJUSTMENT LEFT (CANNOT BE SOLD SEPARATELY - SEE REF. 40) Call
Location: 59 Prev | Next Part: *Qty: 1 SEAT ADJUSTMENT MOTOR FOR HEIGHT ADJUSTMENT RIGHT (CANNOT BE SOLD SEPARATELY - SEE REF. 41) Call
Location: 60 Prev | Next Part: 400881901 *Qty: 1 HEAD RESTRAINT WITH COVER LEFT (SUPPLY VIN) $2,066.89
Location: 60 Prev | Next Part: 400881901A *Qty: 1 HEAD RESTRAINT WITH COVER LEFT (WITH LOGO - SUPPLY VIN) $1,688.91
Location: 61 Prev | Next Part: 400881902 *Qty: 1 HEAD RESTRAINT WITH COVER RIGHT (SUPPLY VIN) $2,066.89
Location: 61 Prev | Next Part: 400881902A *Qty: 1 HEAD RESTRAINT WITH COVER RIGHT (WITH LOGO - SUPPLY VIN) $1,688.91
Location: 62 Prev | Next Part: 8H0880241 *Qty: 1 AIRBAG LEFT $528.79
Location: 63 Prev | Next Part: 8H0880242 *Qty: 1 AIRBAG RIGHT $528.79
Location: 64 Prev | Next Part: 400881097 *Qty: 2 TRIM PANEL FOR BAKREST LEATHER (SUPPLY VIN) $1,074.78
Location: 64 Prev | Next Part: 400881097A *Qty: 2 TRIM PANEL FOR BAKREST LEATHERETTE (SUPPLY VIN) $350.54
Location: 65 Prev | Next Part: 400963551 *Qty: 1 HEATER ELEMENT LEFT $786.29
Location: 66 Prev | Next Part: 400963551 *Qty: 1 HEATER ELEMENT RIGHT $786.29
Location: 67 Prev | Next Part: 400971383 *Qty: 1 ELECTRIC SEAT WIRING HARNESS LEFT $1,135.17
Location: 68 Prev | Next Part: 400858849 *Qty: 1 CHILD RESTRAINT ANCHOR $72.66
Location: 69 Prev | Next Part: *Qty: 0 0 Call
Location: 69 Prev | Next Part: N01153111 *Qty: 1 WASHER $0.90
Location: 70 Prev | Next Part: 803019837C *Qty: 1 SCREW $1.09
Location: 71 Prev | Next Part: 811857845 *Qty: 1 BELT SCREW CAP $0.90
Location: 72 Prev | Next Part: 400971396 *Qty: 1 WIRING HARNESS $66.37

* Quantity shown indicates the number of pieces used in the diagram.
