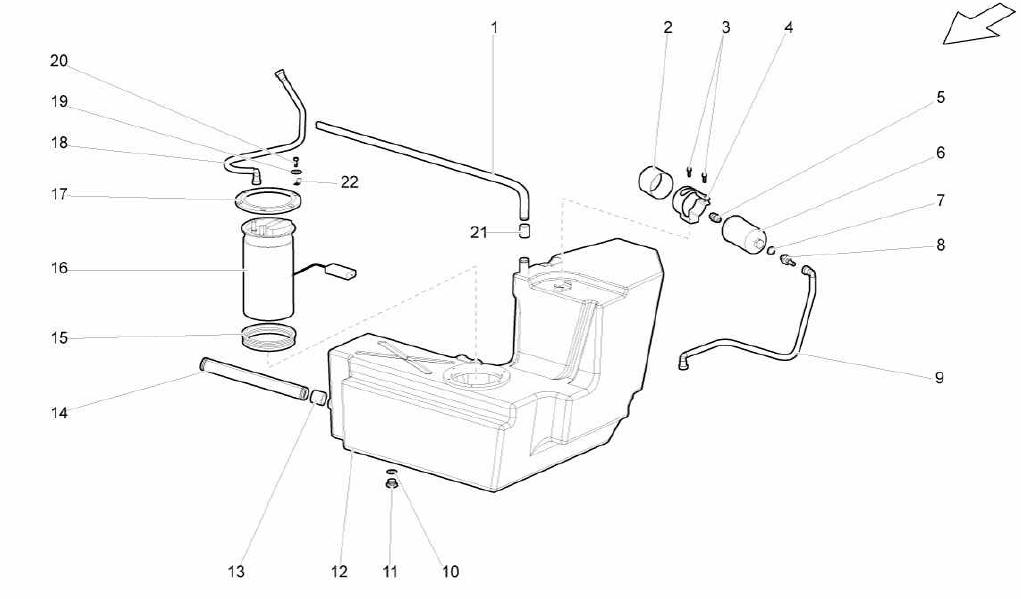

LH TANK

Go to Split View

LH TANK

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400201787 *Qty: 1 PIPE $39.44
Location: 2 Prev | Next Part: 400201558 *Qty: 1 GASKET $2.40
Location: 3 Prev | Next Part: N10207001 *Qty: 2 SCREW $0.90
Location: 4 Prev | Next Part: 400201255 *Qty: 1 BRACKET $9.51
Location: 5 Prev | Next Part: 400201149A *Qty: 1 CONNECTOR $34.97
Location: 6 Prev | Next Part: 400201511A *Qty: 1 FUEL FILTER (UP TO MY05 USE 400201558A) $109.21
Location: 7 Prev | Next Part: 400201349 *Qty: 1 WASHER $9.11
Location: 8 Prev | Next Part: 400201149 *Qty: 1 CONNECTOR $47.34
Location: 9 Prev | Next Part: 400201215 *Qty: 1 LH PIPE $83.17
Location: 10 Prev | Next Part: WHT003362 *Qty: 1 WASHER (UNTIL THE VIN 5LA02250) $1.04
Location: 11 Prev | Next Part: 8931203 *Qty: 1 PLUG (UNTIL THE VIN 5LA02250) $25.89
Location: 12 Prev | Next Part: 400201075 *Qty: 1 LH TANK $2,021.05
Location: 13 Prev | Next Part: 400201130A *Qty: 2 SLEEVE $23.56
Location: 14 Prev | Next Part: 400201341 *Qty: 1 PIPE $15.49
Location: 15 Prev | Next Part: 1J0919133 *Qty: 1 GASKET $16.04
Location: 16 Prev | Next Part: 8L0919051H *Qty: 1 PUMP $578.73
Location: 17 Prev | Next Part: 400201099 *Qty: 1 FLANGE $84.73
Location: 18 Prev | Next Part: 400201219 *Qty: 1 LH PIPE $80.05
Location: 19 Prev | Next Part: WHT001187 *Qty: 6 WASHER $0.90
Location: 20 Prev | Next Part: 8700508 *Qty: 6 SCREW $0.90
Location: 21 Prev | Next Part: 400201539 *Qty: 2 SLEEVE $32.13
Location: 22 Prev | Next Part: 400201211 *Qty: 1 FASTON $2.40
Location: 30 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
