HEAT SHIELD

Go to Split View

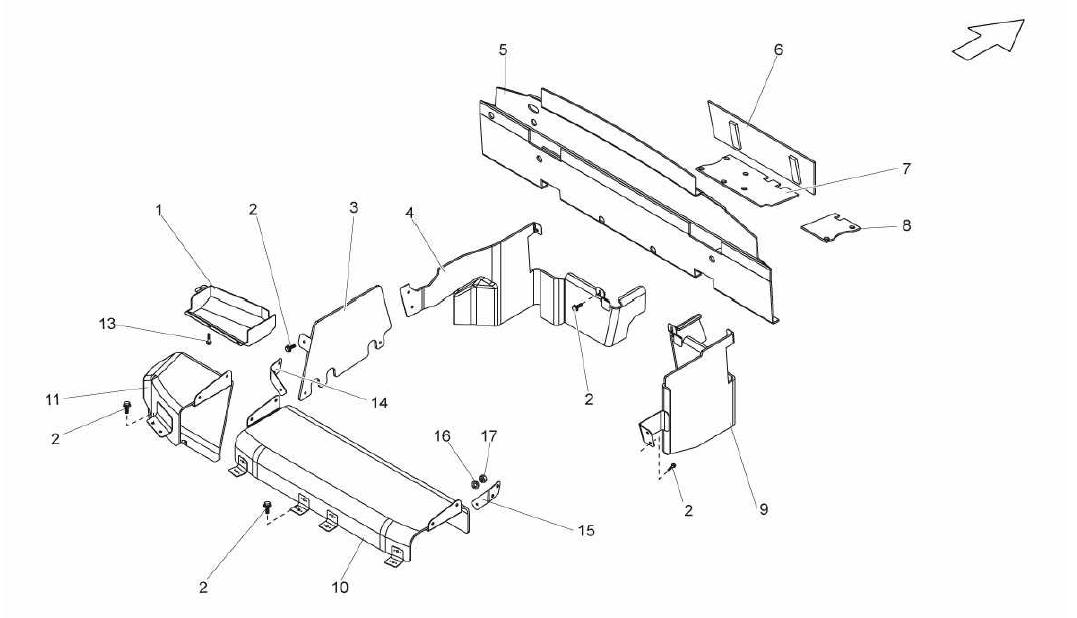

HEAT SHIELD

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 400103755 *Qty: 1 PROTECTION $196.68
Location: 2 Prev | Next Part: N90847903 *Qty: 8 SCREW $0.90
Location: 3 Prev | Next Part: 400501715 *Qty: 1 RH PANEL $250.32
Location: 3 Prev | Next Part: 400501716 *Qty: 1 LH PANEL $250.32
Location: 4 Prev | Next Part: 400201783 *Qty: 1 LH PANEL $733.08
Location: 5 Prev | Next Part: 400103747 *Qty: 1 FIREPROOF SHIELD $482.76
Location: 6 Prev | Next Part: 400103754 *Qty: 1 RH PANEL $107.28
Location: 6 Prev | Next Part: 400103753 *Qty: 1 LH PANEL $107.28
Location: 7 Prev | Next Part: 400103749 *Qty: 1 LH PANEL $98.33
Location: 8 Prev | Next Part: 400103750 *Qty: 1 RH PANEL $44.69
Location: 9 Prev | Next Part: 400201782 *Qty: 1 RH PANEL $670.50
Location: 10 Prev | Next Part: 400251413 *Qty: 1 PROTECTION $1,428.80
Location: 11 Prev | Next Part: 7L251384 *Qty: 1 RH COVER $998.21
Location: 11 Prev | Next Part: 7L251383 *Qty: 1 LH COVER $998.21
Location: 13 Prev | Next Part: N90847903 *Qty: 3 SCREW $0.90
Location: 14 Prev | Next Part: *Qty: 1 LH BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 15 Prev | Next Part: *Qty: 1 RH BRACKET (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 16 Prev | Next Part: *Qty: 2 WASHER (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 17 Prev | Next Part: *Qty: 2 SCREW (VALID FOR A DIFFERENT MODEL YEAR) Call
Location: 30 Prev | Next Part: *Qty: 0 0 Call

* Quantity shown indicates the number of pieces used in the diagram.
