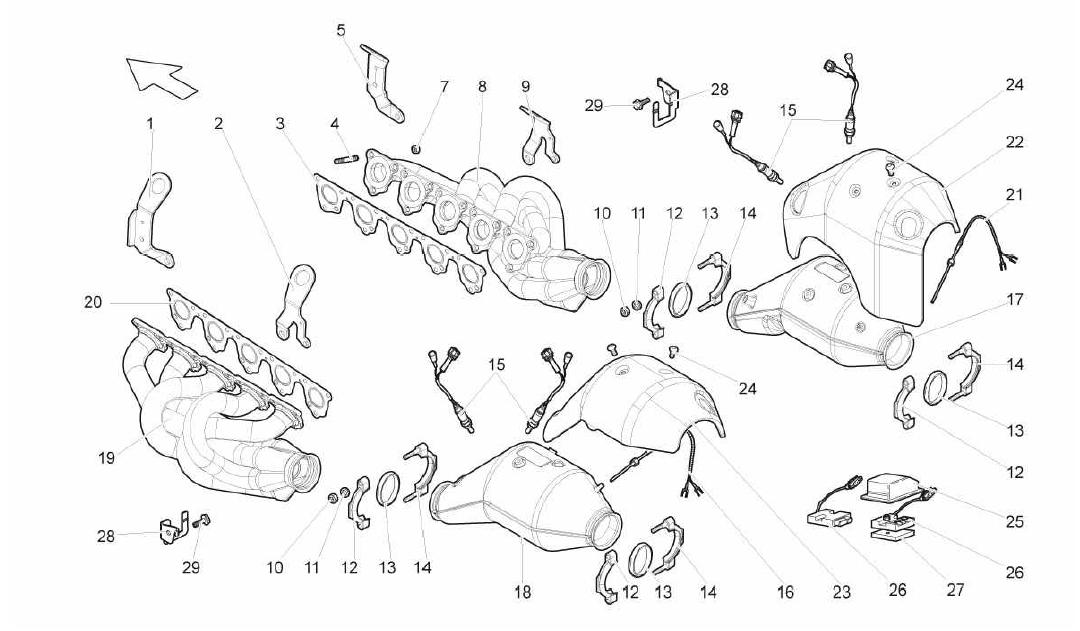

EXHAUST SYSTEM

Go to Split View

EXHAUST SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 7L199079 *Qty: 1 HOOK $28.46
Location: 2 Prev | Next Part: 7L199329 *Qty: 1 HOOK $28.59
Location: 3 Prev | Next Part: 7L253039D *Qty: 1 GASKET $43.19
Location: 4 Prev | Next Part: N0444447 *Qty: 30 STUD BOLT $0.90
Location: 5 Prev | Next Part: 7L199080 *Qty: 1 HOOK $28.59
Location: 7 Prev | Next Part: N90824302 *Qty: 15 NUT $0.90
Location: 8 Prev | Next Part: 7L253033A *Qty: 1 EXHAUST MANIFOLD 1-5 $979.75
Location: 9 Prev | Next Part: 7L199330 *Qty: 1 HOOK $27.99
Location: 10 Prev | Next Part: N0221468 *Qty: 4 NUT $0.90
Location: 11 Prev | Next Part: N01152520 *Qty: 4 WASHER $0.90
Location: 12 Prev | Next Part: 400251143 *Qty: 4 COLLAR $81.55
Location: 13 Prev | Next Part: 400131797 *Qty: 4 DUAL CONE $31.78
Location: 14 Prev | Next Part: 400251143B *Qty: 4 COLLAR $84.73
Location: 15 Prev | Next Part: 6A906262A *Qty: 4 OXYGEN SENSOR Call
Location: 16 Prev | Next Part: *Qty: 0 LEFT THERMOCOUPLE (CANNOT BE SOLD SEPARATELY - SEE REF. 26) Call
Location: 17 Prev | Next Part: 7L251718 *Qty: 1 RIGHT CATALYST ASSEMBLY $4,960.53
Location: 18 Prev | Next Part: 7L251717 *Qty: 1 FRONT CATALYST ASSEMBLY $4,960.53
Location: 19 Prev | Next Part: 7L253034A *Qty: 1 EXHAUST MANIFOLD 6-10 $1,348.37
Location: 20 Prev | Next Part: 7L253039E *Qty: 1 GASKET $43.19
Location: 21 Prev | Next Part: *Qty: 0 RIGHT THERMOCOUPLE (CANNOT BE SOLD SEPARATELY - SEE REF. 26) Call
Location: 22 Prev | Next Part: 7L251356 *Qty: 1 COVER FOR RIGHT CATALYST $601.91
Location: 23 Prev | Next Part: 7L251355 *Qty: 1 COVER FOR LEFT CATALYST $601.91
Location: 24 Prev | Next Part: N90833101 *Qty: 6 SCREW $0.90
Location: 25 Prev | Next Part: *Qty: 0 COVER (NOT AVAILABLE) Call
Location: 26 Prev | Next Part: R1400030 *Qty: 1 CATALYST COLD JOINT/THERMOCOUPLE KIT $749.39
Location: 27 Prev | Next Part: *Qty: 0 0 Call
Location: 27 Prev | Next Part: *Qty: 0 BRACKET (CANNOT BE SOLD SEPARATELY - SEE REF. 26) Call
Location: 28 Prev | Next Part: *Qty: 0 SUPPORT (VALID FOR A DIFFERENT MODEL) Call
Location: 29 Prev | Next Part: *Qty: 0 SCREW M8X16 (VALID FOR A DIFFERENT MODEL) Call

* Quantity shown indicates the number of pieces used in the diagram.
