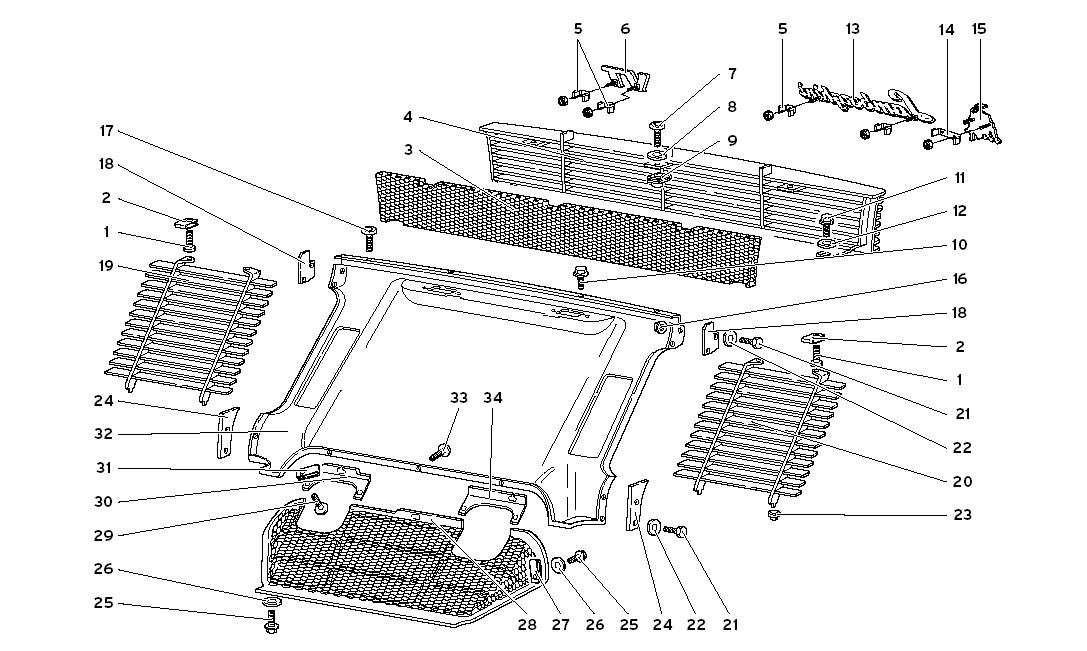

REAR COQUE ELEMENTS

Go to Split View

REAR COQUE ELEMENTS

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 8700437 *Qty: 4 SCREW (VITE) Call
Location: 2 Prev | Next Part: 8220507 *Qty: 4 CLIP (MOLLETTA) $0.90
Location: 3 Prev | Next Part: 9430159 *Qty: 1 NET (RETE) $147.41
Location: 4 Prev | Next Part: 66004330 *Qty: 1 GRILLE (GRIGLIA) $1,052.77
Location: 5 Prev | Next Part: 66003563 *Qty: 4 SUPPORT (SUPPORTO) $11.88
Location: 6 Prev | Next Part: 94004127 *Qty: 1 ORNAMENT (FREGIO VT) $108.02
Location: 7 Prev | Next Part: 8740685 *Qty: 3 SCREW (VITE) $17.51
Location: 8 Prev | Next Part: 8400624 *Qty: 3 WASHER (RONDELLA) $3.47
Location: 9 Prev | Next Part: 8220601 *Qty: 3 CLIP (MOLLETTA) $23.50
Location: 10 Prev | Next Part: 8700660 *Qty: 2 SCREW (VITE) $0.90
Location: 11 Prev | Next Part: 8700444 *Qty: 2 SCREW (VITE) $0.90
Location: 12 Prev | Next Part: 8400508 *Qty: 2 WASHER (RONDELLA) $6.55
Location: 13 Prev | Next Part: 94004121 *Qty: 1 ORNAMENT (FREGIO LAMBORGHINI) $156.65
Location: 14 Prev | Next Part: 66004142 *Qty: 1 SUPPORT (SUPPORTO) $13.27
Location: 15 Prev | Next Part: 94004122 *Qty: 1 ORNAMENT (FREGIO ?TORO?) $129.58
Location: 16 Prev | Next Part: 8200614 *Qty: 4 NUT (DADO) $0.90
Location: 17 Prev | Next Part: 8700658 *Qty: 2 SCREW (VITE) Call
Location: 18 Prev | Next Part: 9410205 *Qty: 2 SPACER (DISTANZIALE) $8.16
Location: 19 Prev | Next Part: 9430103 *Qty: 1 GRILLE (GRIGLIA DX) $823.21
Location: 20 Prev | Next Part: 9430104 *Qty: 1 GRILLE (GRIGLIA SX) $559.46
Location: 21 Prev | Next Part: 8100621 *Qty: 8 SCREW (VITE) $0.90
Location: 22 Prev | Next Part: 8400607 *Qty: 8 WASHER (RONDELLA) $0.90
Location: 23 Prev | Next Part: 9430141 *Qty: 4 BUSHING (BOCCOLA) Call
Location: 24 Prev | Next Part: 9410206 *Qty: 2 SPACER (DISTANZIALE) $26.57
Location: 25 Prev | Next Part: 8700449 *Qty: 4 SCREW (VITE) $0.90
Location: 26 Prev | Next Part: 8400623 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 27 Prev | Next Part: 8220502 *Qty: 2 CLIP (MOLLETTA) $1.39
Location: 28 Prev | Next Part: 9430145 *Qty: 1 GRILLE (GRIGLIA) $1,564.12
Location: 29 Prev | Next Part: 8700455 *Qty: 4 SCREW (VITE) $1.44
Location: 30 Prev | Next Part: 9430144 *Qty: 1 RIGHT PLATE (LAMIERINO DX) $40.72
Location: 31 Prev | Next Part: 8220402 *Qty: 4 CLIP (MOLLETTA) $1.31
Location: 32 Prev | Next Part: 9410200 *Qty: 1 REAR PANEL (ELEMENTO SCOCCA POSTERIORE) $1,835.31
Location: 33 Prev | Next Part: 8700658 *Qty: 3 SCREW (VITE) Call
Location: 34 Prev | Next Part: 9430146 *Qty: 1 LEFT PLATE (LAMIERINO SX) $40.72

* Quantity shown indicates the number of pieces used in the diagram.
