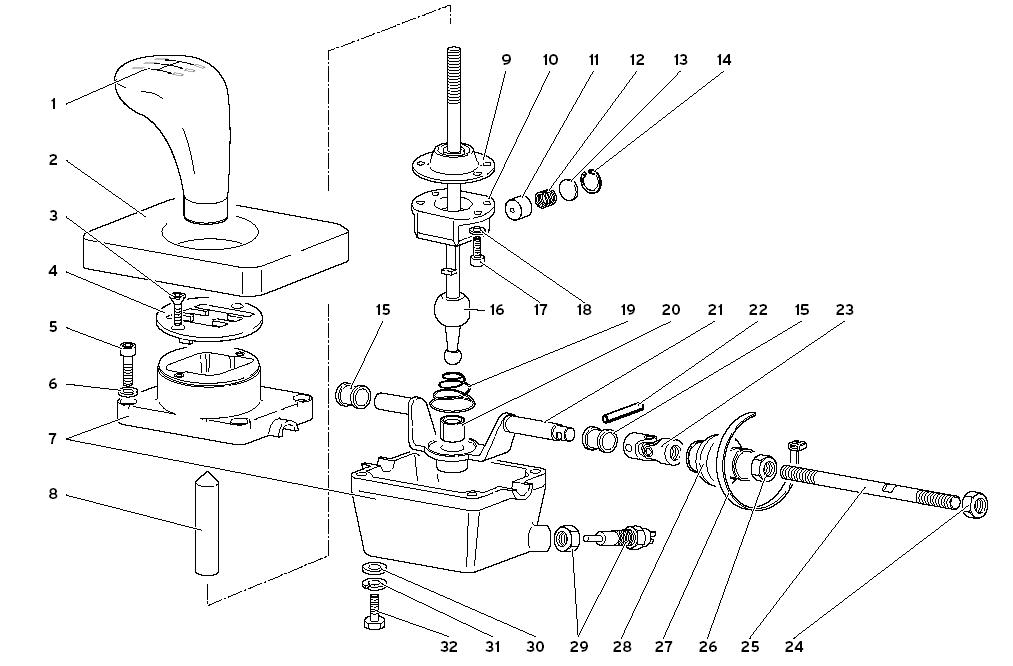

GEARBOX CONTROL TOWER

Go to Split View

GEARBOX CONTROL TOWER

in cart
Location Part # *Qty Description Price Add To Cart
Location: 1 Prev | Next Part: 2437444 *Qty: 1 KNOB (POMELLO) Call
Location: 2 Prev | Next Part: 2431785 *Qty: 1 FLEX PAD (SPESSORE IN GOMMA) Call
Location: 3 Prev | Next Part: 8740613 *Qty: 2 SCREW (VITE) $0.90
Location: 4 Prev | Next Part: 2433874 *Qty: 1 PLATE (PIASTRA DI SELEZIONE) $973.43
Location: 5 Prev | Next Part: 8700804 *Qty: 4 SCREW (VITE) $0.90
Location: 6 Prev | Next Part: 8410810 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 7 Prev | Next Part: 240132003 *Qty: 1 CASE (SCATOLA) $1,515.96
Location: 8 Prev | Next Part: 2438011 *Qty: 1 ADAPTER KNOB (ADATTATORE POMELLO) $37.79
Location: 9 Prev | Next Part: 2433043 *Qty: 1 BOOT (CUFFIA) $91.53
Location: 10 Prev | Next Part: 2434091 *Qty: 1 BALL SOCKFT (SEDE SFERICA) $229.27
Location: 11 Prev | Next Part: 2427202 *Qty: 1 CYLINDER (CILINDRO) $17.96
Location: 12 Prev | Next Part: 2432167 *Qty: 1 SPRING (MOLLA) $12.10
Location: 13 Prev | Next Part: 2427204 *Qty: 1 PLATE (PIASTRINA) $9.75
Location: 14 Prev | Next Part: 8572201 *Qty: 1 RETAINER RING (ANELLO RITEGNO) $0.90
Location: 15 Prev | Next Part: 2433020 *Qty: 2 BUSHING (BOCCOLA) $29.50
Location: 16 Prev | Next Part: 2433008 *Qty: 1 LEVER (LEVA) $1,349.08
Location: 17 Prev | Next Part: 8700644 *Qty: 4 SCREW (VITE) $0.90
Location: 18 Prev | Next Part: 8410602 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 19 Prev | Next Part: 2429160 *Qty: 1 SPRING (MOLLA) $59.19
Location: 20 Prev | Next Part: 2427207 *Qty: 1 BUSHING (BOCCOLA) $182.51
Location: 21 Prev | Next Part: 2429161 *Qty: 1 SHAFT (ALBERO) $290.03
Location: 22 Prev | Next Part: 8900305 *Qty: 1 PIN (SPINA) $0.90
Location: 23 Prev | Next Part: 2430984 *Qty: 1 JOINT (SNODO DX) $198.69
Location: 24 Prev | Next Part: 8201224 *Qty: 1 NUT (DADO SX) Call
Location: 25 Prev | Next Part: 2434472 *Qty: 1 TIE ROD (TIRANTE) $37.19
Location: 26 Prev | Next Part: 8201223 *Qty: 1 NUT (DADO DX) Call
Location: 27 Prev | Next Part: 8830305 *Qty: 2 STRAP (FASCETTA) $0.90
Location: 28 Prev | Next Part: 2434614 *Qty: 1 BOOT (CUFFIA) Call
Location: 29 Prev | Next Part: 2408637 *Qty: 1 SWITCH (INTERRUTTORE RETROMARCIA) $49.32
Location: 30 Prev | Next Part: 8400801 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 31 Prev | Next Part: 8410806 *Qty: 4 WASHER (RONDELLA) $0.90
Location: 32 Prev | Next Part: 8100826 *Qty: 4 SCREW (VITE) $0.90

* Quantity shown indicates the number of pieces used in the diagram.
