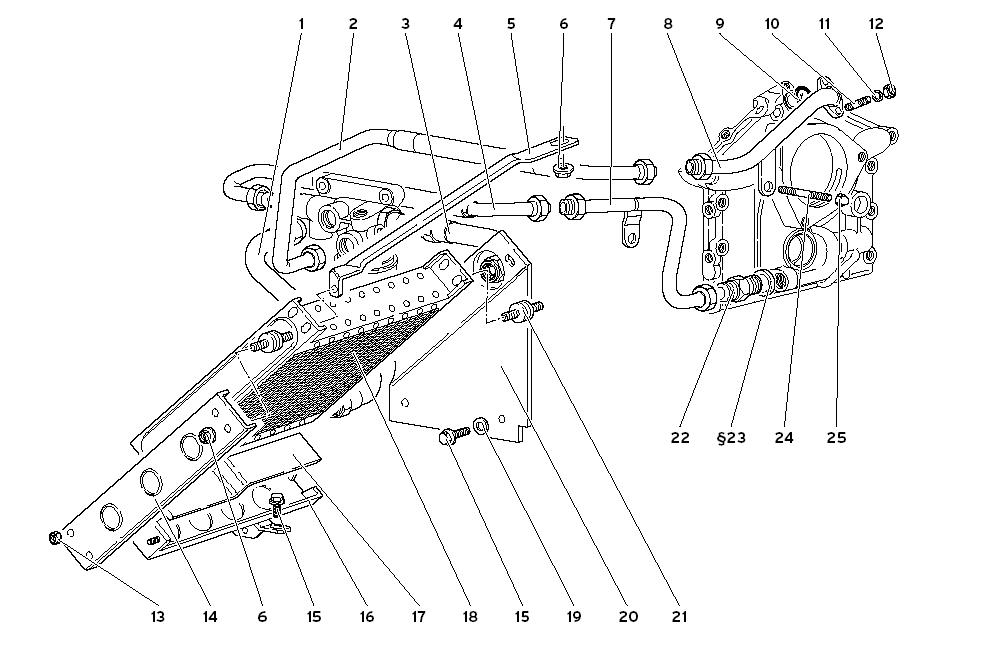

ENGINE OIL SYSTEM

Go to Split View

ENGINE OIL SYSTEM

in cart
Location Part # *Qty Description Price Add To Cart
Location: - Prev | Next Part: *Qty: 0 ALSO INCLUDED IN THE ENGINE GASKETS KIT Call
Location: 1 Prev | Next Part: 15001970 *Qty: 1 FLEX. HOSE (TUBO FLESSIBILE) $657.68
Location: 2 Prev | Next Part: 1535966 *Qty: 1 PIPE (TUBO) $257.16
Location: 3 Prev | Next Part: 15001970 *Qty: 1 FLEX. HOSE (TUBO FLESSIBILE) $657.68
Location: 4 Prev | Next Part: 1535965 *Qty: 1 PIPE (TUBO) $484.96
Location: 5 Prev | Next Part: 4138028 *Qty: 1 TIE ROD (TIRANTE) $83.56
Location: 6 Prev | Next Part: 8200614 *Qty: 5 NUT (DADO) $0.90
Location: 7 Prev | Next Part: 1537292 *Qty: 1 PIPE (TUBO) $385.48
Location: 8 Prev | Next Part: 1535967 *Qty: 1 PIPE (TUBO) $120.43
Location: 9 Prev | Next Part: 8602803 *Qty: 1 SEAL (ANELLO TENUTA) Call
Location: 10 Prev | Next Part: 8300828 *Qty: 2 STUD (PRIGIONIERO) Call
Location: 11 Prev | Next Part: 8410820 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 12 Prev | Next Part: 8200801 *Qty: 2 NUT (DADO) $0.90
Location: 13 Prev | Next Part: 8200606 *Qty: 2 NUT (DADO) $0.90
Location: 14 Prev | Next Part: 4138030 *Qty: 1 BRACKET (STAFFA) $27.54
Location: 15 Prev | Next Part: 8700663 *Qty: 5 SCREW (VITE) $0.90
Location: 16 Prev | Next Part: 4138033 *Qty: 1 SUPPORT (SUPPORTO) $167.12
Location: 17 Prev | Next Part: 1533325 *Qty: 1 RUBBER WEATHER- (PROFILATO GOMMA) Call
Location: 18 Prev | Next Part: 1533283 *Qty: 1 OIL RADIATOR (RADIATORE OLIO) Call
Location: 19 Prev | Next Part: 8400607 *Qty: 2 WASHER (RONDELLA) $0.90
Location: 20 Prev | Next Part: 4138040 *Qty: 1 SUPPORT (SUPPORTO) $55.71
Location: 21 Prev | Next Part: 8920602 *Qty: 2 ELASTIC SUPPORT (SUPPORTO ELASTICO) $11.41
Location: 22 Prev | Next Part: 1529610 *Qty: 1 CONNECTION (RACCORDO) $52.94
Location: 23 Prev | Next Part: 8403007 *Qty: 1 WASHER (RONDELLA) $0.90
Location: 24 Prev | Next Part: 8300905 *Qty: 1 STUD (PRIGIONIERO) $18.66
Location: 25 Prev | Next Part: 8200816 *Qty: 1 NUT (DADO) $1.01

* Quantity shown indicates the number of pieces used in the diagram.
